Instruction Manual IM01005019E - rev. 8

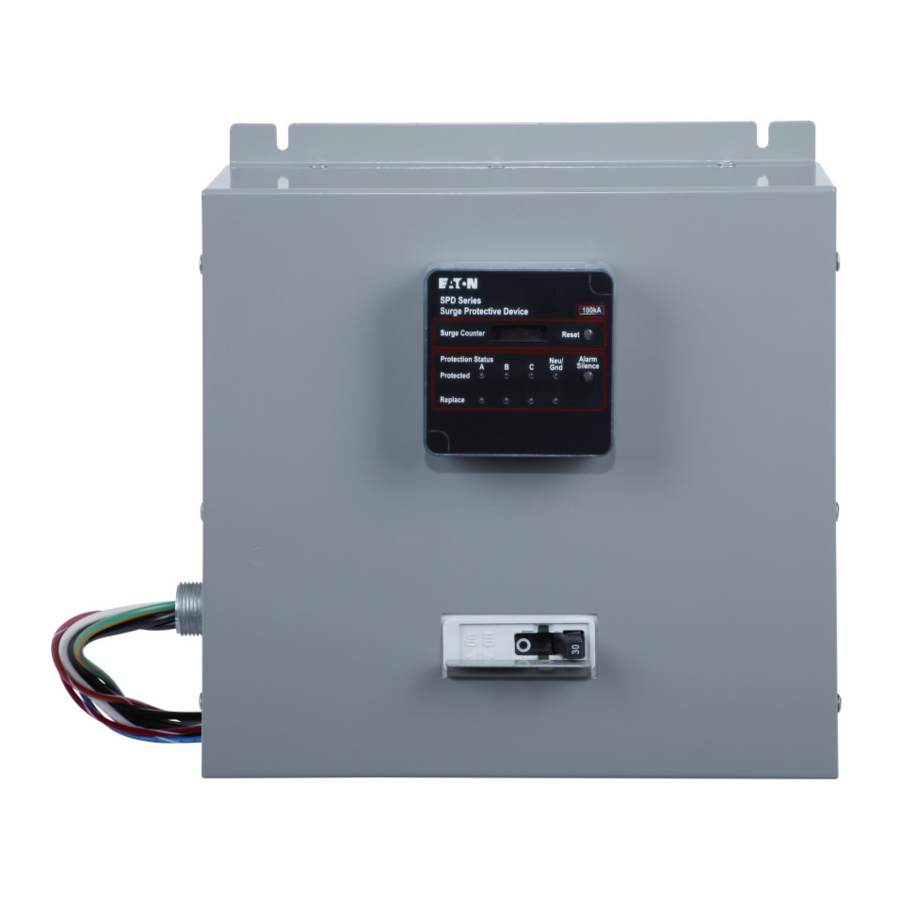

Eaton SPD Series
surge protective device
for integrated applications
Effective March 2021
For additional information on the new PX-SPD
go to www.eaton.com/pxspd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPD Series and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton SPD Series

Summary of Contents for Eaton SPD Series

  • Page 1 Instruction Manual IM01005019E - rev. 8 Effective March 2021 Eaton SPD Series surge protective device for integrated applications For additional information on the new PX-SPD go to www.eaton.com/pxspd...

  • Page 2: Table Of Contents

    Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 Table of Contents 1.0 Introduction ..............1 1.1 Manual organization .

  • Page 3: Introduction

    1.4 Catalog numbering system SPD200480D2C meet the requirements of IEC 61643-11 / EN Each Eaton SPD Series unit has a name plate that identifies 61643-11, part 11: test class II, and are intended to be installed the parameters used for manufacture. These parameters are in indoor applications with a degree of protection rated IP 00.

  • Page 4: Equipment Testing

    • the same as the SPD you are installing. Check the voltage Every Eaton SPD Series unit is tested at the factory for dielec- rating label on the front left side of the SPD. See Figure 1. tric breakdown. No further SPD testing is required for installa- tion.

  • Page 5: Direct Bus Mount Applications

    Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 2.2.1 Direct bus mount applications Install the SPD on the load side of the main breaker. Connect • the SPD directly to the bus located as close as possible to the main breaker.
  • Page 6 Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 5. Install the bus mount fasteners and tighten to 4.1 N∙m (36 in-lbs). See Figure 5. Ethernet Port Power Xpert SPD Only Figure 8.

  • Page 7: Connected Through A Circuit Breaker Applications

    Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 7 . Connect the system ground wire (green) to the SPD’s surge ground connection using a ring terminal suitable for use with a #10 fastener and a #10-32 x 3/8” fastener (customer supplied).
  • Page 8 Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 4. Determine the wire length required to connect to the a. Suffix 'B': This is the remote display panel (RDP) option. breaker and cut phase wires to the appropriate length. (To The RDP option requires the addition of a factory supplied RDP cable.

  • Page 9: Operating Features

    (already on the RDP) to secure the cable to the RDP . 3.1 General See Figure 18. The Eaton SPD Series comes in four feature packages: Basic, Standard, Standard with Surge Counter, and Power Xpert SPD. The operating specifics of each feature package are described below.

  • Page 10: Standard Feature Package

    Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 3.2.2 Standard feature package 3.2.4 Power Xpert SPD feature package The Standard feature package has the following features: All features of the Standard with Surge Counter feature package including advanced monitoring and communication.

  • Page 11: Power Xpert Overview

    4.1.2 Event log Includes the follow sub-menu selections. The Eaton Power Xpert SPD feature package includes a 20x4 LCD module which on power up displays the device’s home All events - Up to 40 events which includes surges, power up,...

  • Page 12: Power Xpert Spd User Setup

    5.0 Power Xpert SPD user setup 5.1 General The Eaton Power Xpert SPD can be set up using just the local display or with a laptop, Cat 5e cable and a web browser. Modbus, BACnet, and HTTP are initially disabled to provide cybersecurity protection.

  • Page 13: Configuration Of The User's Laptop To Communicate To Px-Spd

    Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 3. Left click on Ethernet and then right click to open the window shown below. Then click on properties. Figure 30. Setting date and time 4.

  • Page 14: Power Xpert Spd Network Connection

    The change password window will open. Enter the default pass- word and then enter a new 6 digit alpha-numeric password and then click OK. Save password in a secure location to access the Web UI. If lost, contact Eaton’s Application Engineers, at 1-800- 809-2772, or email SPD@eaton.com. Eaton...

  • Page 15: Establishing A Secure Connection

    4. Password expiration is configurable, the default is set to 90 then click OK. Save password in a secure location to access the days. Web UI. If lost, contact Eaton’s Application Engineers, at 1-800- 5. Up to three users can access the PX-SPD simultaneously. 809-2772, or email SPD@eaton.com.
  • Page 16 Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 The install certificate window will then open and then click on In the next window click on ‘Place all certificates in the follow- Install Certificate button.

  • Page 17: Upgrading Firmware

    Figure 44. Select PX-SPD_Main_Processor Figure 41. Successful secure login 5.3.2 Upgrading firmware To update the firmware in the Power Xpert SPD, go to the Eaton website at www.eaton.com/PXSPD and download the latest version firmware to a laptop or PC. Connect the laptop to the Power Xpert SPD via an ethernet cable and login to the SPD.
  • Page 18 Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 Login to the device and click on the General tab and verify the A dropdown will open displaying the options available to the SNTP server 1 has a green circle around it, as shown below.
  • Page 19 Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 Select the appropriate timezone from the dropdown list to the The Admin user can modify timeouts, number of concurrent right of Timezone. GMT-05:00 represents Eastern Standard Time, sessions and the number of failed login attempts.

  • Page 20: Modbus And Bacnet Access

    5.3.5 Sensitivity setting Attention: Eaton does not recommend the customer modify the sensitivity setting without first contacting Eaton Customer Support at 1 800 809-2772 or email SPD@eaton.com. Increasing the sensitivity setting will reduce the number of low level surge counts.
  • Page 21 Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 Table 3. Viewable events Web UI viewable logs LCD viewable logs High Medium level Medium High General surge surge surge level level level...

  • Page 22: Spd Display Rotation

    7.0 Remote display panel (RDP) option The SPD display can be rotated on the SPD enclosure, up to The Eaton Series SPD displays may be monitored on a remote 360 degrees. This allows you to position the display for the best display panel (RDP).

  • Page 23: Troubleshooting

    If the SPD malfunctions after it has been operating routinely, refer to Table 6. This troubleshooting chart identifies possible causes and solutions to the malfunction. Further assistance may be obtained by calling Eaton’s Applications Engineers, at 1-800-809-2772 or email SPD@eaton.com, including being directed to the warranty process if applicable.

  • Page 24: Troubleshooting The Power Xpert Spd

    Table 7 . This troubleshooting chart identifies possible causes and solutions to the malfunction. Further assistance may be obtained by calling Eaton’s Applications Engineers, at 1-800-809-2772 or email SPD@eaton.com, including being directed to the warranty process if applicable.

  • Page 25: Specifications

    Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 11.0 Specifications Table 8. Specifications (cont.) Description Specification Surge current capacity per phase 50, 80, 100, 120, 160, 200, 250, 300, 400 kA ratings available...
  • Page 26 Cybersecurity test lab. IEC 255-21-1 and IEC 255-21-2 IEEE 693-2018 IBC-2018 Warranty 10 years, 15 years if you register on www.eaton.com/spd and click the warranty registration icon. UL 96A compliant NFPA 780 compliant Yes *Certain models only, email SPD@eaton.com for additional information.

  • Page 27: Ordering Guidelines

    SPD200480D2C meet the requirements of IEC 61643-11/EN 61643-11, part 11: test class II, and intended to be installed in indoor applications with a degree of protection rated IP 00. Example: SPD 250480D2J = SPD series, 250kA per phase, 480D voltage, standard feature package, motor control center application. Eaton...

  • Page 28: Warranty

    THE PARTIES. defect, the product will be returned prepaid. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental or consequential damage or...

  • Page 29: Appendix A Power Xpert Spd Local Display Surge Events Menu Map

    Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 Appendix A Power Xpert SPD local display surge events menu map ► >>> ► >>> ► >>> ► >>> Phase A LOW Event Log...

  • Page 30: Appendix C Power Xpert Spd Local Display Settings Menu Map

    Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 Appendix C Power Xpert SPD local display settings menu map ENTER PASSWORD XXXXXX ► >>> ► >>> ► >>> DATE: MM/DD/YYYY Date: MM/DD/YY...

  • Page 31: Appendix D Power Xpert Spd Local Display Identification Menu Map

    Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 Appendix D Power Xpert SPD local display identification menu map Catalog Number: ► >>> IDENTIFICATION SPDxxxxxxx4x <<< ◄ ▼ ▲ Style Number: 6xx-xx3xx ▼...

  • Page 32: Appendix E Power Xpert Spd Local Display Test Sequence

    Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 Appendix E Power Xpert SPD local display test sequence 1. All LEDs turn red 6. Half pixels turn on 2. All LEDs turn yellow 7 .

  • Page 33: Appendix F Power Xpert Spd Modbus Register Map

    Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 Appendix F Power Xpert SPD Modbus register map Power Xpert SPD Modbus register map (cont.) Register Name Attributes Description Product Serial Number UINT32 RO NV 32bit device serial number.
  • Page 34 Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 Power Xpert SPD Modbus register map (cont.) Register Name Attributes Description DHCP to Static IP addr lock (0) BOOL RW NV Default: FALSE Range: FALSE to TRUE...
  • Page 35 Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 Power Xpert SPD Modbus register map (cont.) Register Name Attributes Description 8207 Medium Surge Event Phase UINT8 RO Indicates in which the phase, medium surge event occurred.
  • Page 36 Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 Power Xpert SPD Modbus register map (cont.) Register Name Attributes Description 11499 Indicates the status of N-G Red BOOL RO Indicates the status of N-G red LED, 0:LED off 1:LED on. Indicates protection...

  • Page 37: Appendix G Web User Error Codes

    Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 Power Xpert SPD Modbus register map (cont.) Register Name Attributes Description 12267 General log Index UINT16 RO Index points to the latest general event log...

  • Page 38: Appendix Hbacnet Map

    Eaton SPD Series Instruction Manual IM01005019E - rev. 8 surge protective device for integrated applications Effective March 2021 Appendix H BACnet map Analog objects Access Instance Object name Object description Object type Unit type increment Sensitivity Surge sensitivity No unit...
  • Page 39 Eaton SPD Series Instruction Manual IM01005019E - rev.8 surge protective device for integrated applications Effective March 2021 Appendix H BACnet map (Cont.) Device objects Object name Object type Access type Product Vendor Name BACnet Vendor Identifier Style Name BACnet Max Master...
  • Page 40 1000 Eaton Boulevard Cleveland OH 44122 United States 1-800-809-2772 or email SPD@eaton.com Eaton.com © 2021 Eaton Eaton is a registered trademark. All Rights Reserved Printed in USA All other trademarks are property of their Publication No. IM01005019E TBG000335 respective owners.
