Installing the PXG1000 Hardware
See page 4 for important safety and warning statements.
This product is intended to be supplied by a 24 Vdc power
source. The product is rated at 10 - 30 Vdc, 3.5 - 1.17 A
and has a Max Temperature (Tmax) of 60° C (140° F).
If you need further assistance or information, please
contact the Eaton Customer Intregrity Team at 1-844-435-
8982 and MRSupport@eaton.com, or 1-877-386-2773
and TRC@eaton.com.
Take the following guidelines into consideration
before wiring the device:
1.
The 24 Vdc terminal block is suitable for 16-24
AWG (8A). The torque value is 2.5 lb-in. Use copper
conductors only.
2.
The temperature rating of the input power connection
cable should be higher than 105° C (221° F).

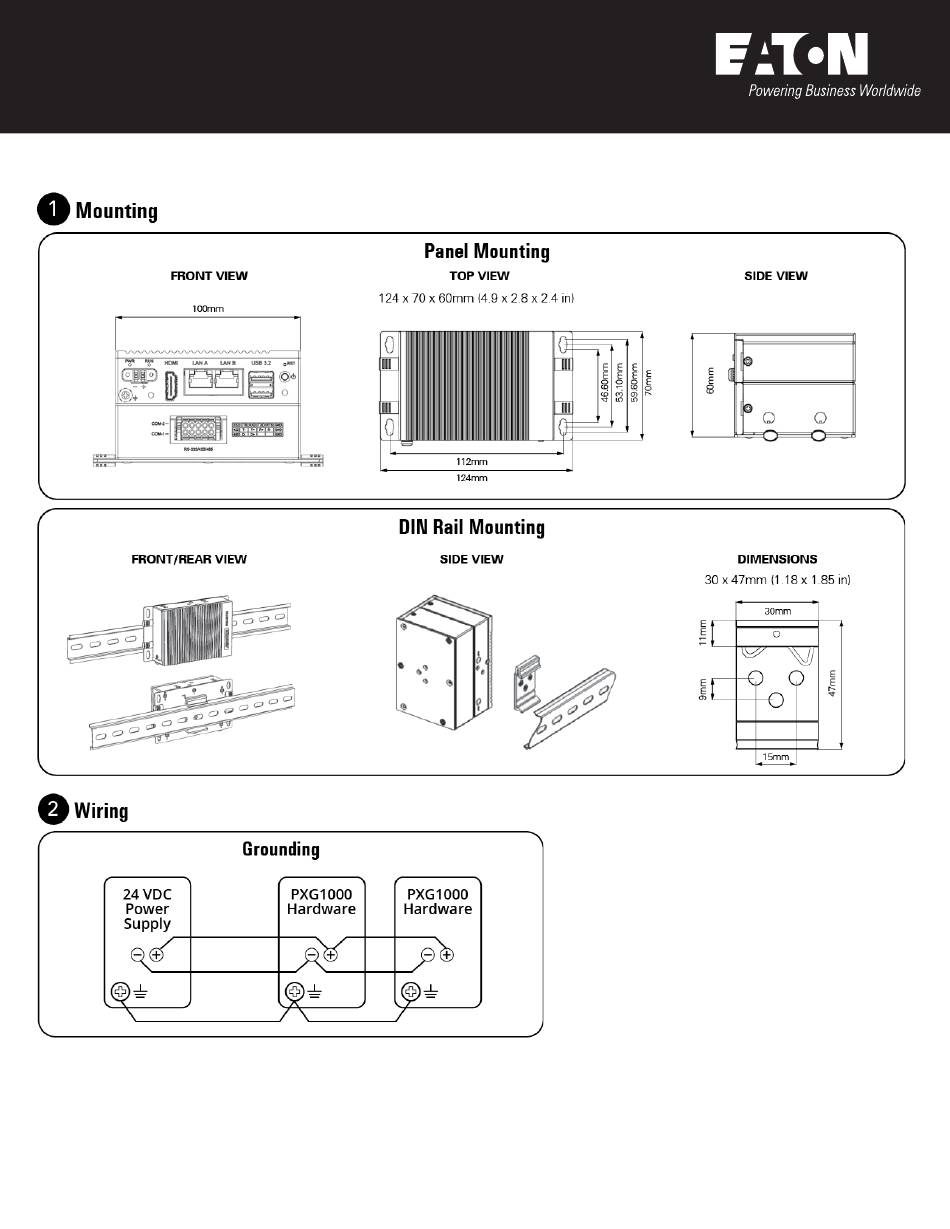

Follow these instructions:
1.
Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector.
2.
Tighten the wire-clamp screws to prevent the DC
wires from coming loose.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PXG1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eaton PXG1000

  • Page 1 The product is rated at 10 - 30 Vdc, 3.5 - 1.17 A and has a Max Temperature (Tmax) of 60° C (140° F). If you need further assistance or information, please contact the Eaton Customer Intregrity Team at 1-844-435- 8982 and MRSupport@eaton.com, or 1-877-386-2773 and TRC@eaton.com.
  • Page 2 Configure the IP address and Subnet mask settings for PC’s ethernet port from Network & Internet Settings > Ethernet > Change Adapter Options > Select Ethernet port (1/2/3) > Select protocol as, Internet Protocol Version 4 (TCP/IPv4) > Properties > Edit as shown. EATON www.eaton.com...

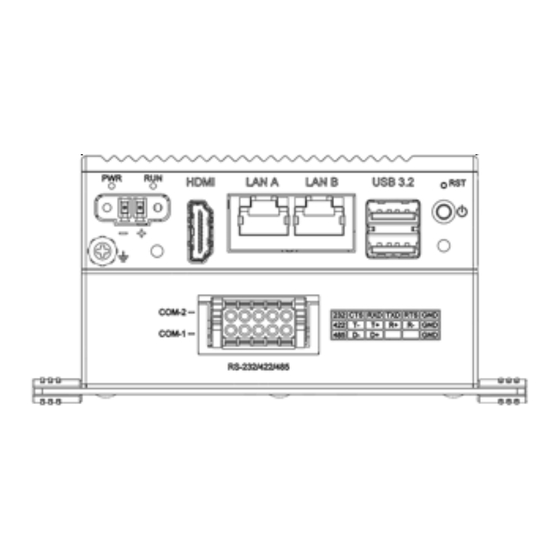

  • Page 3 Two RS-485 ports for Modbus RTU devices (COM 1 and COM 2) supporting baud rates up to 115.2kbps Ethernet LEDs LED indicators are provided on the front of the PXG1000 to indicate the Ethernet port Link (off/green/orange) and Activity (green) status. Activity LED (Left)
  • Page 4 OF FATAL ELECTRIC SHOCK IS PRESENT. Properly ground the PXG1000 during installation. NOTICE The PXG1000 contains a lithium battery. There is a risk of explosion if the battery is replaced by an incorrect type. Check your local and state regulations for proper disposal of lithium batteries.
