Arduino® Nano RP2040 Connect

3.9 RGB LED

The RGB LED (DL3) is a common anode LED that is connected to the Nina W102 module. The LED are off when the
digital state is HIGH and on when the digital state is LOW.

3.10 Power Tree

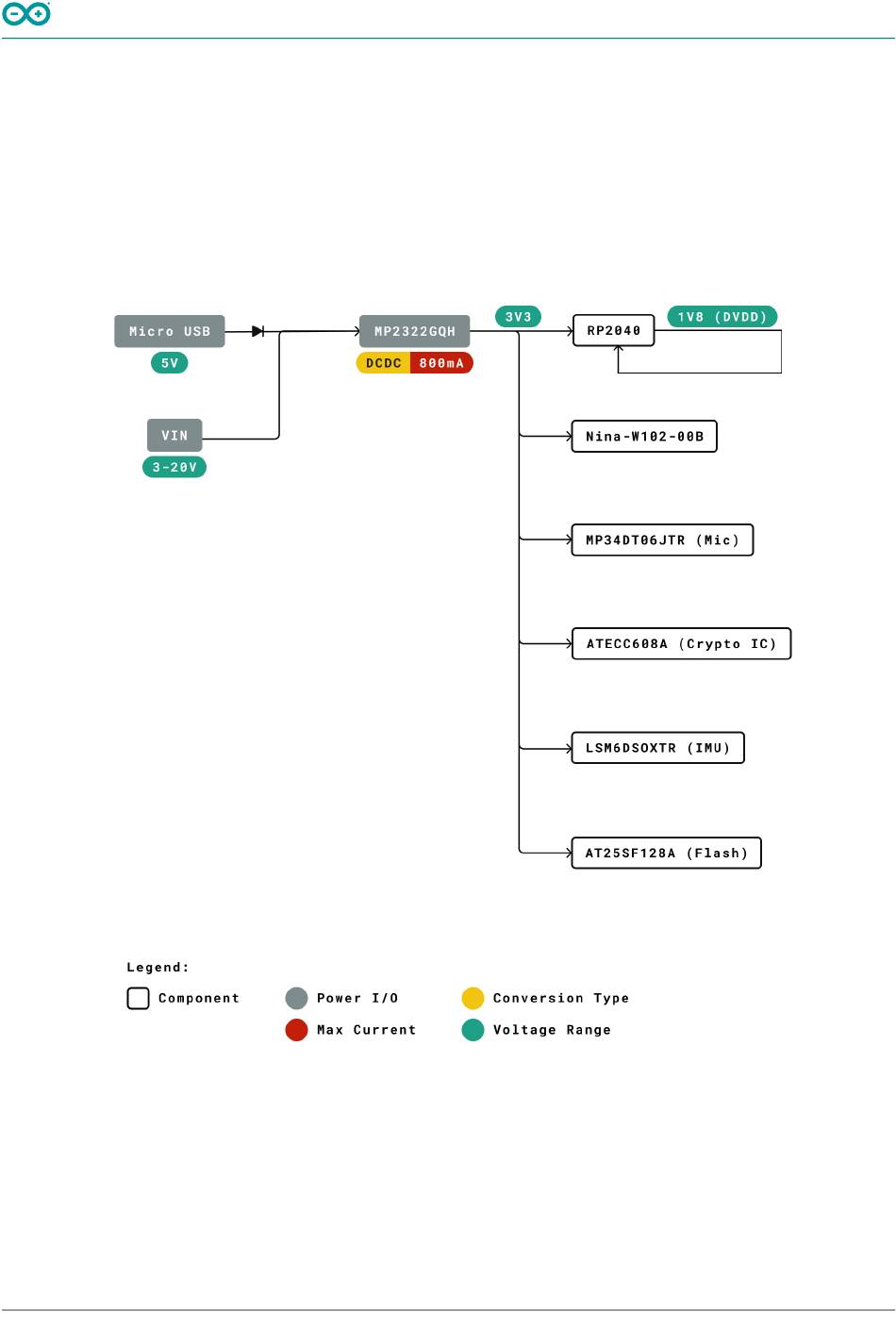

Power Tree of Arduino Nano RP2040 Connect Topology
The Nano RP2040 Connect can be powered by either the Micro USB port (J1) or alternatively via VIN on JP2. An
onboard buck converter provides 3V3 to the RP2040 microcontroller and all other peripherals. Additionally, the
RP2040 also has an internal 1V8 regulator.
