Arduino® Nano RP2040 Connect
14 RGB LED
The RGB LED (DL3) is a common anode LED that is connected to the Nina W102 module.
The LED are off when the digital state is HIGH and on when the digital state is LOW.
15 Power Tree

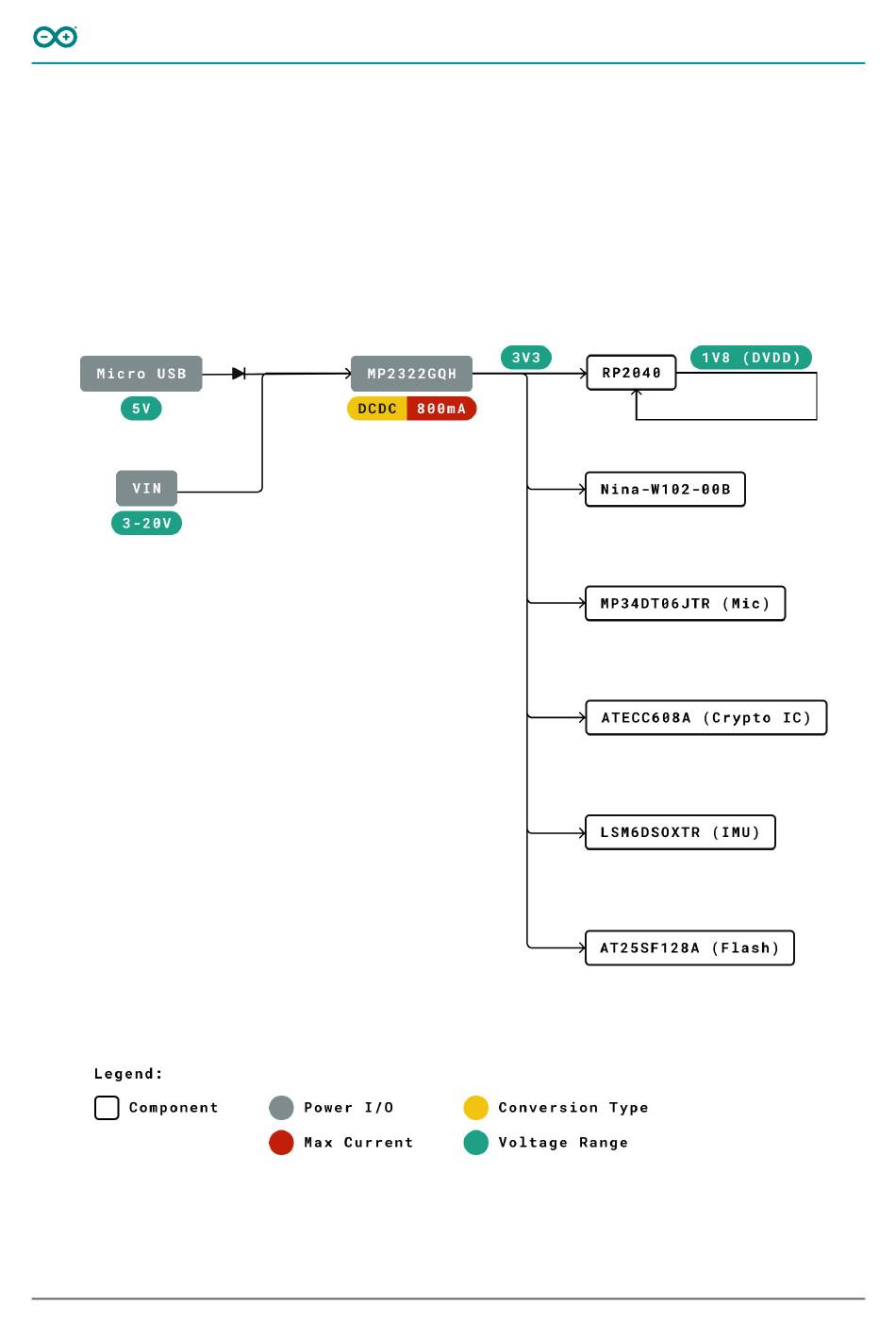

Power Tree of Arduino Nano RP2040 Connect Topology
The Arduino Nano RP2040 Connect can be powered by either the Micro USB port (J1) or
alternatively via VIN on JP2. An onboard buck converter provides 3V3 to the RP2040
13 / 20
Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021
