D- Use - SCS Sentinel CodeVisio Wi-Fi Installation And User Manual

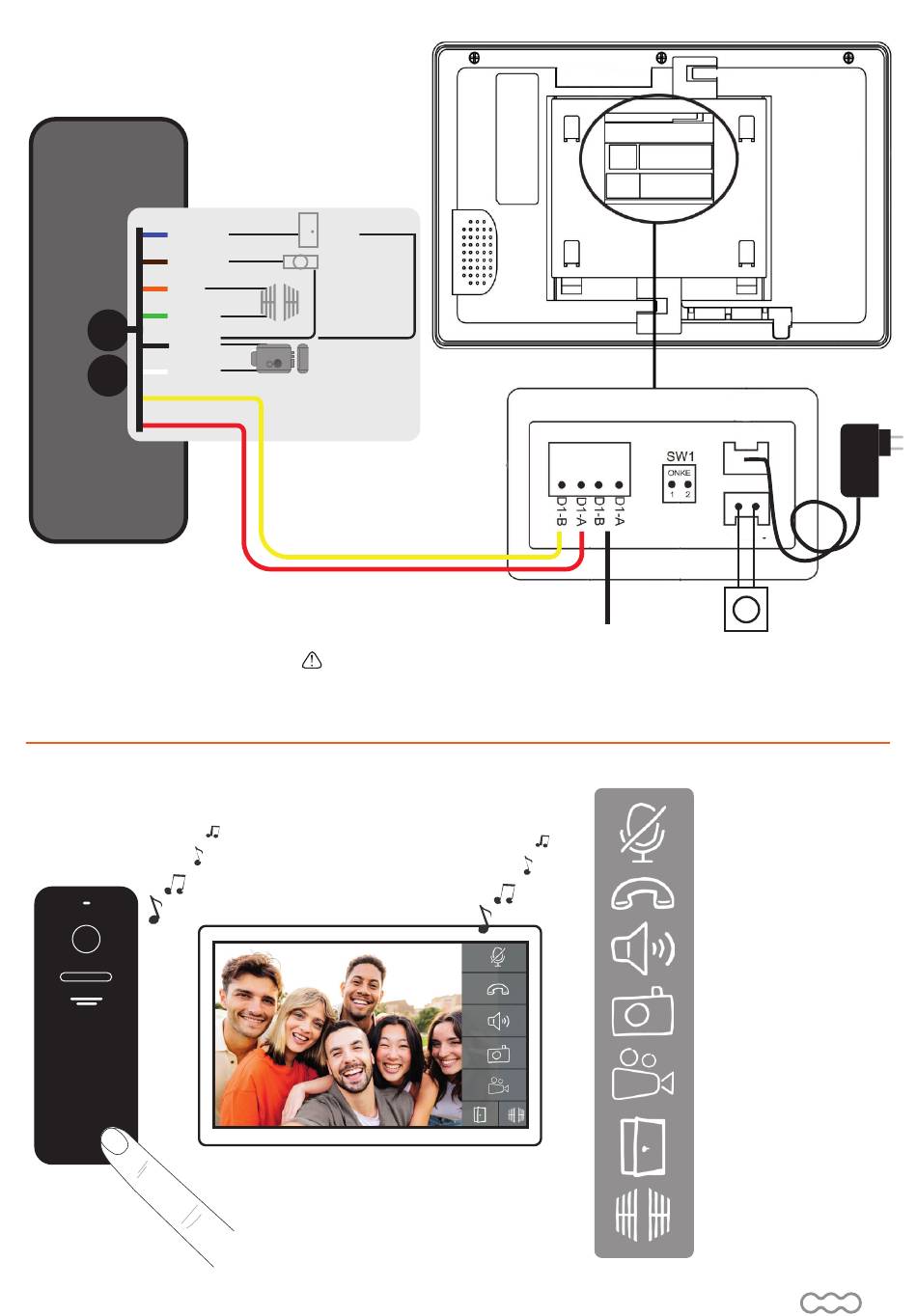

C2- Wiring diagram
SENS
OPEN
NO
COM
GND
12V+
D1-B
D1-A

D- USE

D- USE
D1- Call from the outdoor station
1 2 3
4 5 6
7 8 9
* 0 #
Contact
door
Exit
switch
Automation
-
Electric
latch
+
12V DC- 700mA
No polarity
0 - 50 m - 0,75 mm²
50 - 100 m - 1 mm²
Category 5 cable
(unshielded) only
Option :
additional outdoor
PPD0126 / additional
monitor PPD0125
Option :
Doorbell button
Connector dry
contact input
Microphone
Hang up
Back to home screen
Volume setting
Save a photo
Save a video
Open
strike plate / lock
Open the gate
automation
EN
25
