Outdoor monitor
Installation in a porch or covered area is recommended. Avoid the camera lens coming into direct contact with the sun's rays.

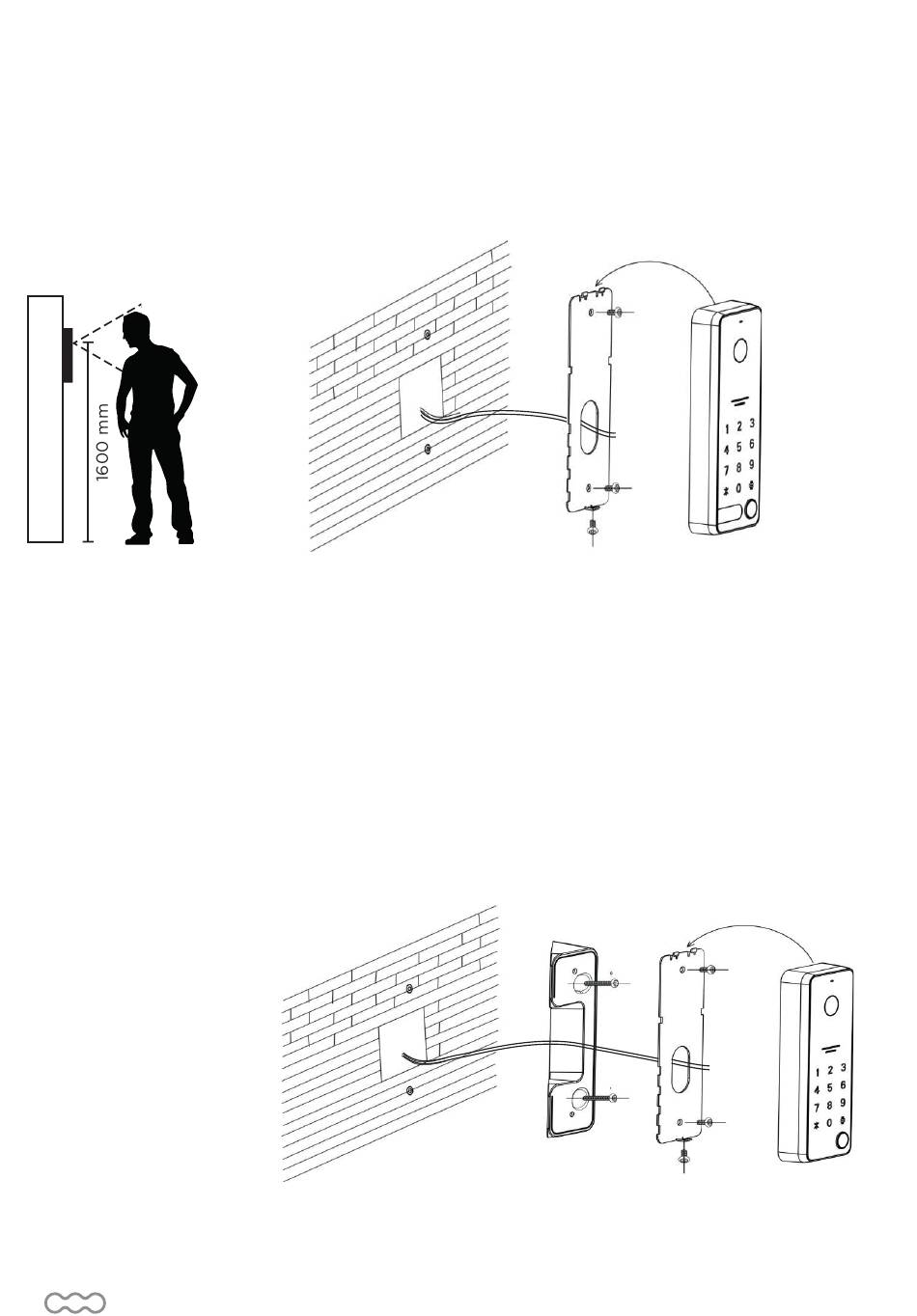

Installation on the flat support
1- Drill 2 holes a spacing corresponding to that of the support, then insert the 2 wall plugs supplied.
2- Pass the cable through the hole in the wall bracket, then fix it to the wall using the 2 screws supplied.
3- Connect the wires in accordance with the wiring diagram.
4- Fix the door station to the wall bracket, then tighten the screw on the underside.
Installation on 30° corner support
1- Drill 2 holes a spacing corresponding to that of the corner support, then insert the 2 wall plugs supplied.
2- Fix the corner support to the wall using the 2 screws supplied.
3- Pass the cable through the hole in the flat bracket, then fix it to the corner bracket using the 2 screws supplied.
4- Connect the wires in accordance with the system wiring diagram.
5- Attach the door station to the flat bracket, then tighten the screw on the underside.
