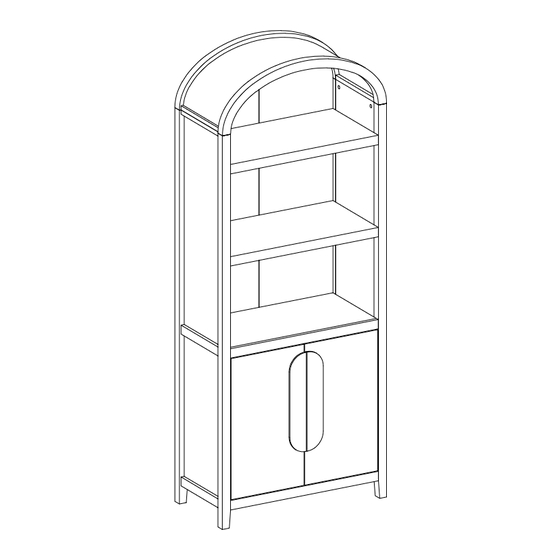

- Page 1 Chantelle Cabinet Bookcase SKU# WECHA41OS2 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 27/03/2024 (I) ©...
- Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.
-
Page 3: Parts List
Parts List Description Quantity Part Number Arched Top Panel Left Panel Right Panel Upper Back Panel Lower Back Panel Upper Fixed Shelf Middle Fixed Shelf Bottom Fixed Shelf Cabinet Shelf Left Cabinet Door Right Cabinet Door Handle 12 12... -
Page 4: Hardware List
Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x35mm Cam bolt Cam lock 15x11mm 30mm Sticker Screw 7x3x12mm Shelf support pin 8x5x16mm Handle Bolt 4x25mm Screw 4x14mm Europe Hinge 35mm Screw 3x17mm Plastic Wedge Screw 4x15mm Screw 4x25mm... - Page 5 Hardware List Part Size Name Quantity Plastic strap Wall Anchor Rubber pad 12x2mm Glue tube The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
- Page 6 Step 1 Let’s get started, shall we? Start by screwing Cam Bolts (B) into your Arched Top Panel (1).
- Page 7 Step 2 Next, insert Wooden Dowels (A) into the Middle Fixed Shelf (7) and Bottom Fixed Shelf (8).
- Page 8 Step 3 Insert Wooden Dowels (A) into the two Upper Fixed Shelves (6).
- Page 9 Step 4 Screw your Cam Bolts (B) into the Left Panel (2) and Right Panel (3). Then, place 8 Dowels (A) into the dowel holes at the top of both panels.
- Page 10 Step 5 It’s time to attach your shelves. Using the Left Panel (2), attach the Shelf Panels starting with (6) x 2, followed by (7), and lastly (8). Secure the panels with Cam Locks (C) and a screwdriver. Tip: Ensure that the shelves are facing the right direction. Front Shelf Trim should be facing the front of the bookcase.
- Page 11 Step 6 Now let’s do the same thing with the Right Panel (3). Ensure that the Right Panel is going the same Direction as the Left Panel. Attach all shelves with Cam Locks (C).
- Page 12 Step 7 Unfold the Lower Back Panel (5) and Upper Back Panel (4). Starting with the Lower Back Panel (5), slide into place using the grooves. Ensure that it fits securely into the bottom groove. Then, slide the Upper Back Panel (4) into place.
- Page 13 Step 8 Next, locate the pre-drilled holes in the Back Panels (5) and (4). With a screwdriver, guide the 12mm Screws (E) through the pre-drilled holes.
- Page 14 Step 9 With the help of a friend, flip the bookcase upright. Place the Arched Top Panel (1) on top of the unit. Ensure the Back Panel (4) sets into the top guide. Secure the Arched Top Panel to the Right and Left Panels (2) and (3) using Cam Locks (C).
- Page 15 Step 10 Evenly place Plastic Wedges (L) into the gaps between the Back Panels (5) and (4) and the frame. Attach the Plastic Wedges with the 17mm Screws (K).
- Page 16 Step 11 Attach Stickers (D) over the Cam Locks (C) throughout the bookcase.
- Page 17 Step 12 Let’s construct your cabinet. Insert the Shelf Support Pins (F) into the hole with your desired shelf height. Place the Inside Shelf (9) into the cabinet, above the Shelf Support Pins. Finished edge...
- Page 18 Step 13 Place the Rubber Pads (R) at the front of the Cabinet Shelf (9).
- Page 19 Step 14 Take the Cabinet Doors (10) and (11), and attach the Cabinet Handles (12) using the 22mm Screws (G). Ensure that handles are facing the correct direction! Next, attach the Hinge (J) to the door using the 14mm Screws (H).
- Page 20 Step 15 Attach the Hinge (J) to the Bookcase using the 14mm Screws (H).
- Page 21 Step 16 Repeat the same process with the Hinges (J) using the 14mm Screws (H) on the other door (11).
- Page 22 Step 17 You made it to the last couple of steps! Let’s secure your bookcase to the wall. Attach the Plastic Strip (P) to your bookcase using the 12mm Screw (M).
- Page 23 Step 18 Insert the Wall Anchor (Q) into the wall. Next, secure the Plastic Strip (P) to the wall using the 25mm Screw (N). Voila! You did it! Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall.
-
Page 24: Final Assembly
Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome... - Page 25 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
