Walker Edison Annette WEANN03QB1 Manual

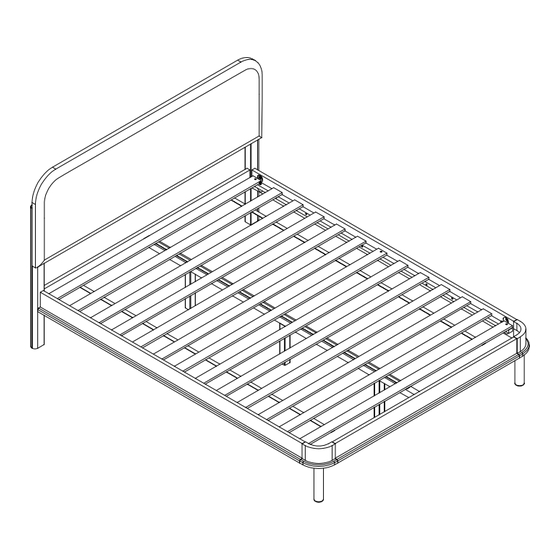

Contemporary curved headboard bed frame queen
Hide thumbs

Advertisement

Quick Links

Download this manual

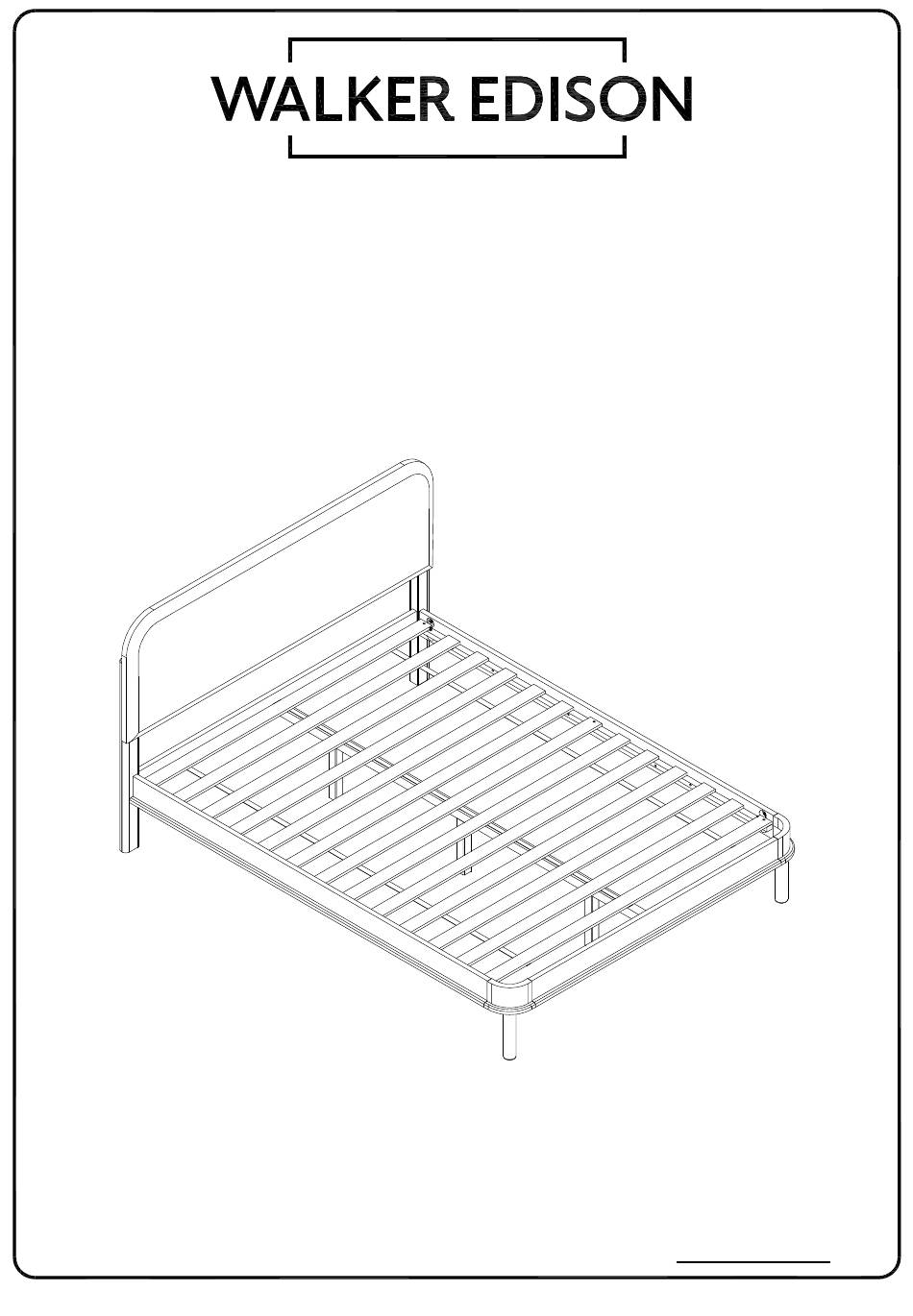

TM
Annette Contemporary Curved
Headboard Bed Frame Queen
SKU# WEANN03QB1
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 23/08/2024 (I)
©
Copyright
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Annette WEANN03QB1 and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison Annette WEANN03QB1

Summary of Contents for Walker Edison Annette WEANN03QB1

  • Page 1 Headboard Bed Frame Queen SKU# WEANN03QB1 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 23/08/2024 (I) © Copyright...
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Annette Scan to get assembly tips and help!

  • Page 3: Parts List

    Parts List Part Number Description Quantity Headboard Headboard Support Rail Left Headboard Post Right Headboard Post Side Rails Bottom Rail Curved Corner Pieces Legs Center Support Rail Middle Support Legs Bed Slats...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity Ø8x30mm Wooden dowel Ø5/16"x16x1.2mm Washer Ø5/16"x20mm Bolt Ø5/16"x38mm Bolt Hex key Ø5/16"x80mm Bolt Ø5/16" Half - moon washer Ø5/16" Wrench 105x40x32mm U Bracket Ø3x15mm Screw Ø4x30mm Screw The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 5 Step 1 Let’s get started! First, insert the Wooden dowels (A) into both ends of the Headboard Support Rail (2). Wood Dowels Dowels are essential in furniture assembly for creating strong, precise connections. They ensure structural integrity, prevent shifting, and simplify alignment, resulting in sturdier, longer-lasting furniture.
  • Page 6 Step 2 Next you will hand tighten the Bolts (F) into the Left and Right Headboard Posts (3 & 4).
  • Page 7 Step 3 Turn over the Headboard Posts (3 & 4) and insert the bolts into to the Headboard Support Rail (2). Secure with a Half- moon washer (G) and Nut (H) then tighten with the Wrench (J).
  • Page 8 Step 4 Now let’s attach this structure to the Headboard (1) using our Flat washers (B) and Bolts (D). Be sure to tighten completely with the Hex key (E).
  • Page 9 Step 5 Turn over the headboard and screw in one of U brackets (K) to the Headboard Support Rail (2) using the Flat washers (B) and Bolts (C).
  • Page 10 Step 6 Attach the other U bracket (K) to the Bottom Rail (6) using the using the same Flat washers (B) and Bolts (C).
  • Page 11 Step 7 Now, grab eight Bolts (F) and hand tighten them into both of the Curved Corner Pieces (7).
  • Page 12 Step 8 After removing the plastic caps on the Legs (8), twist them into the bottom of the Curved Corner Pieces (7) until tight.
  • Page 13 Step 9 Remember how we put the Headboard together? Follow that same process and a ttach the Curved Corner Pieces (7) to each side of the Bottom Rail (6) using the Half-moon washers (G) and Nuts (H) tightening with the Wrench (J).
  • Page 14 Step 10 Find some yoga blocks, books, or anything you have near you to prop up the Side Rails (5) while attaching them to the Headboard posts (3 & 4) with the Half-moon washers (G) and Nuts (H). Find some yoga blocks, books, or anything you have near you to prop up the Side Rails (5) while attaching them to the Headboard posts (3 &...
  • Page 15 Step 11 Repeat that same process to finish off the frame. Place the bolts in the Curved Corner Pieces (7) into the Side Rails (5) and secure with the Half-moon washers (G) and Nuts (H).
  • Page 16 Step 12 We are getting close! Twist off the plastic caps on the Middle Support Legs (10) and then screw them into the Center Support Rail (9).
  • Page 17 Step 13 Place the Center Support Rail (9) into the U brackets (J) and secure it through the sides with the screws (L).
  • Page 18 Step 14 Now’s the time to make any adjustments to the levelers on the bottoms of the Middle Support Legs (10) before we lay the slats down.
  • Page 19 Step 15 Add the remaining Wooden dowels (A) into the ends inside slat supports of the Side Rails (5). (This will help when aligning the slats!)
  • Page 20 Step 16 Last step! Lay down the Bed Slats (11) and screw them into place with the six screws (M).

  • Page 21: Final Assembly

    Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 22 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
