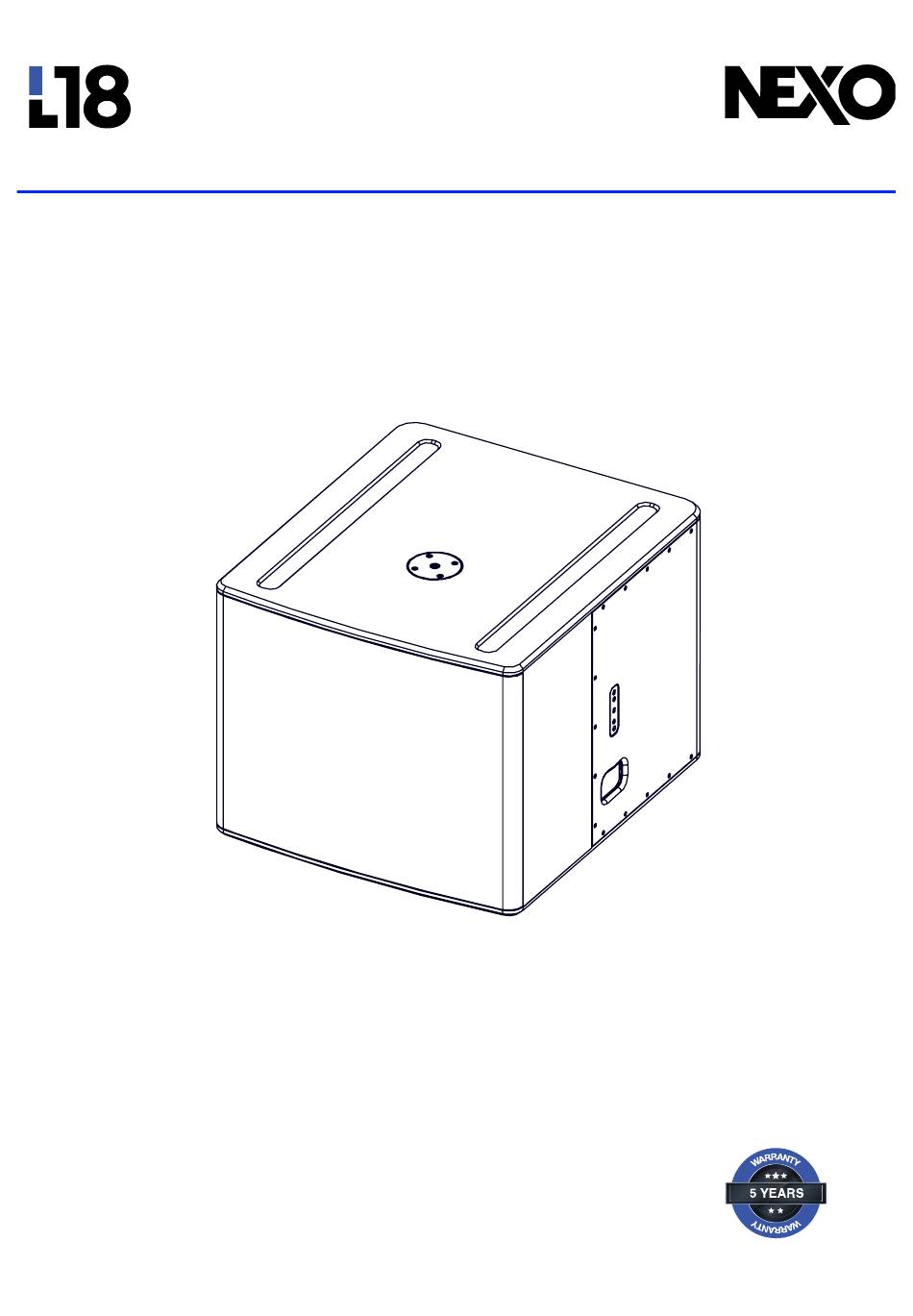

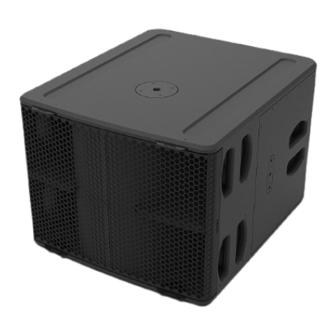

- Page 1 2024-06-05 DP7594-01-DI L18-I User manual IP55...
-
Page 2: Table Of Contents
ARRAY EQ ____________________________________________________________________________ 11 MAINTENANCE ________________________________________________________________________ 12 TECHNICAL SPECIFICATIONS ___________________________________________________________ 14 USER NOTES _________________________________________________________________________ 15 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. -
Page 4: Equipment
Stand height and footprint must be defined to prevent assembly from collapsing. Ensure that audience is not allowed within a safety area which radius is equal or higher than assembly height. Test steadiness of the assembly by pushing in all directions. Page 4 / 16 L18-I... -
Page 5: Description
IP55: Be careful to place the IPCOV correctly. → Amplification • The L18 subwoofer must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. • The following table shows the number of L18 subwoofers usable with each solution. -
Page 6: Preset
PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. There are two setting range for surrounding speaker L18: → “OMNI” Setups; For a traditional use of the subwoofer in omnidirectional radiation (require at least one subwoofer and a channel of amplifier). - Page 7 PRESET in stage monitor Stage monitor applications with Subs (OMNI or CARDIO modes) in front of house Front of house applications with Subs (OMNI or CARDIO modes) Page 7 / 16 L18-I...
-
Page 8: Accessories
All L18 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling L18 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire L18 accessory range if any component is purchased from different supplier. - Page 9 ACCESSORIES LNI-3L18 L18 Rigging system (up to 3; Cardio or Omni) Refer to the Product Data Sheet. PNI-P15TOL18 PNI-P15TO2L18 P15 Under 1xL18 P15 Under 2xL18 (Omni or Cardio) Refer to the Product Data Sheet. Page 9 / 16 L18-I...
- Page 10 ACCESSORIES PNI-P18TOL18 PNI-P18TOL2L18 P18 Under 1xL18 P18 Under 2xL18 (Omni or Cardio) Refer to the Product Data Sheet. VNI-CPL02 Coupling Bar for 2 or 3 L18 Refer to the Product Data Sheet. Page 10 / 16 L18-I...
-
Page 11: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): 1 Array (d ) ad usting Frequency ( Page 11 / 16 L18-I... -
Page 12: Maintenance
MAINTENANCE MAINTENANCE Grille Changing: Remove 8 screws 18’’ Driver Remove 20 screws Remove the trap Remove 8 screws, 2 inside with a curved screwdriver. Remove the driver. Page 12 / 16 L18-I... - Page 13 Complete grille Installation Black (with fasteners) 05L18UA-IPW Complete grille Installation White (with fasteners) 1 ’’ Driver (with fasteners) 05HP18DS115-4 05HP18DS115-4R/K Recone kit (with fasteners) 05PATIN01 Rubber Skid Black (with fasteners) 05PATIN01-PW Rubber Skid White (with fasteners) Page 13 / 16 L18-I...
-
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS L18 WITH NEXO ELECTRONICS Model 32Hz – 120Hz Frequency range (±6dB) Peak SPL Level (1m) 140 dB Peak Operating voltage 80Vrms (180Vpeak) Crossover Frequency 60 Hz; 85Hz; 120Hz 4Ω Nominal Impedance SPECIFICATIONS Model 1x 18’’ – 4 ohms – Long excursion – Neodymium driver... -
Page 15: User Notes
USER NOTES USER NOTES Page 15 / 16 L18-I... - Page 16 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 16 / 16 L18-I...
