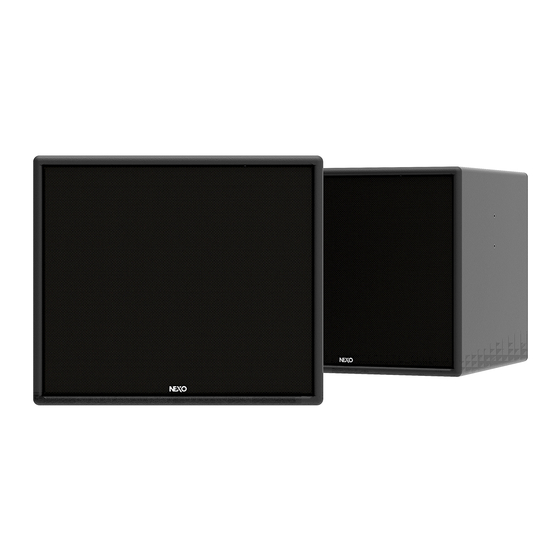

Summary of Contents for Nexo eLS600

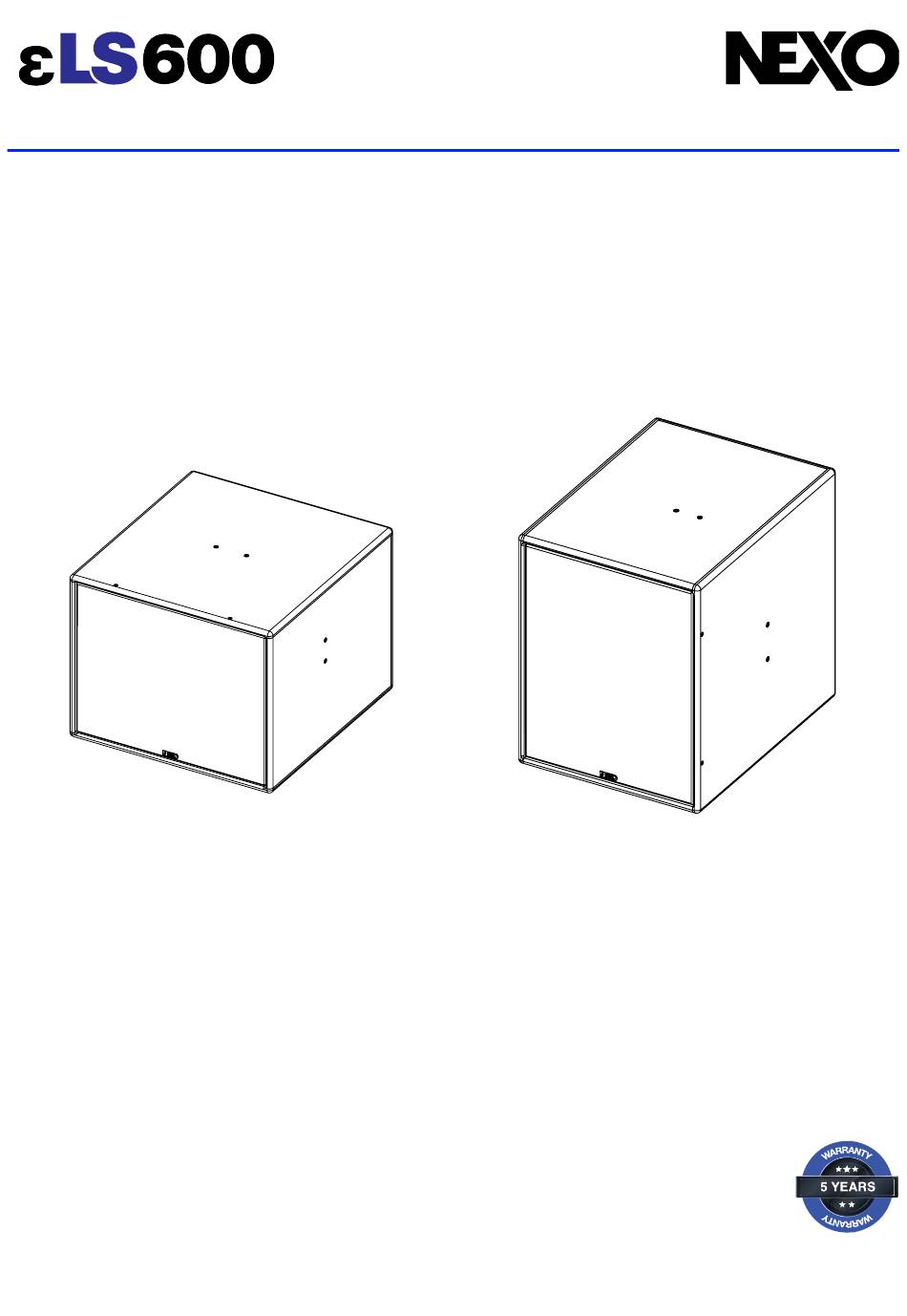

- Page 1 DP6157-01-DI eLS600 User manual...
-
Page 2: Table Of Contents
ARRAY EQ _____________________________________________________________________________ 9 MAINTENANCE ________________________________________________________________________ 10 TECHNICAL SPECIFICATIONS ___________________________________________________________ 12 USER NOTES _________________________________________________________________________ 13 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Equipment
On the four sides of the cabinet, two M10 fittings will connect the eLS400 to accessories. (VNI-VCPL425, VNI-HCPL535, VNU-HBRK535, eye-bolts). 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks. Cables from 0.75 mm2 to 3.31 mm2 (12 to 15 AWG) copper section. eLS400 with IPCOV Page 4 / 14 eLS600... -
Page 5: Description
3.31 mm (12 to 15 AWG) copper section. Cable with maximum outside diameter of 11mm. → To wire eLS600, slit the membrane of the grommet crosswise, pass the cable through and make the connection to the screw terminals. Place the IPCOV. -
Page 6: Preset
PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. For a traditional use of the subwoofer, there are 3 setups for eLS600: • 40 Hz – 85 Hz • 40 Hz – 120 Hz • 40 Hz – 150 Hz... -
Page 7: Accessories
WARNINGS All accessories are specifically rated in agreement with structural computations. Never use other accessories when assembling eLS cabinets than the ones provided by NEXO: NEXO will decline responsibility if any component is purchased from different supplier. PROHIBITED: ePS8 or ePS10 below eLS600 without dedicated accessory... - Page 8 ACCESSORIES VNI-VCPL425 Coupler ePS8 under Vertical eLS600 Refer to the Product Data Sheet VNI-HCPL535 Coupler ePS10 under Horizontal eLS600 Refer to the Product Data Sheet Page 8 / 14 eLS600...
-
Page 9: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): 00 rray ad ustin re uency Page 9 / 14 eLS600... -
Page 10: Maintenance
MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Driver access Loosen the 4 screws, Remove the grille. Remove 8 screws. Tightening torque: 2.5Nm Tightening torque: 3.5Nm (Thread Locker: Loctite 242) LF: red (+) / black (-) - Page 11 Complete grille Black 05EBELS600 Cabinet Black 05VXTSTHC1012 HEADLESS Screw M10x12 Black (x10) 05HPB15-76 HP 15" BASS 4 Ohms 76mm VOICE COIL 05HPB15-76R/K Recone Kit for HPB15-76 05LOGNEXO6 NEXO Logo (with 2x starlock) 05PASF-DG9E1 Grommet DG11 Page 11 / 14 eLS600...
-
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS WITH NEXO ELECTRONICS Model eLS600 40 Hz – 150 Hz Frequency range (±6dB) Peak SPL Level (1m) 136dB Peak Operating voltage 40Vrms 40 – 85 Hz; 40 – 120 Hz; 40 – 150 Hz Crossover Frequency... -
Page 13: User Notes
USER NOTES USER NOTES Page 13 / 14 eLS600... - Page 14 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr arc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 14 / 14 eLS600...
