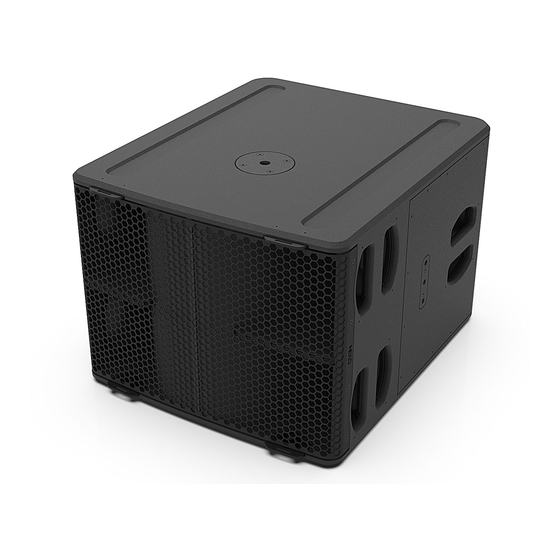

Summary of Contents for Nexo L15

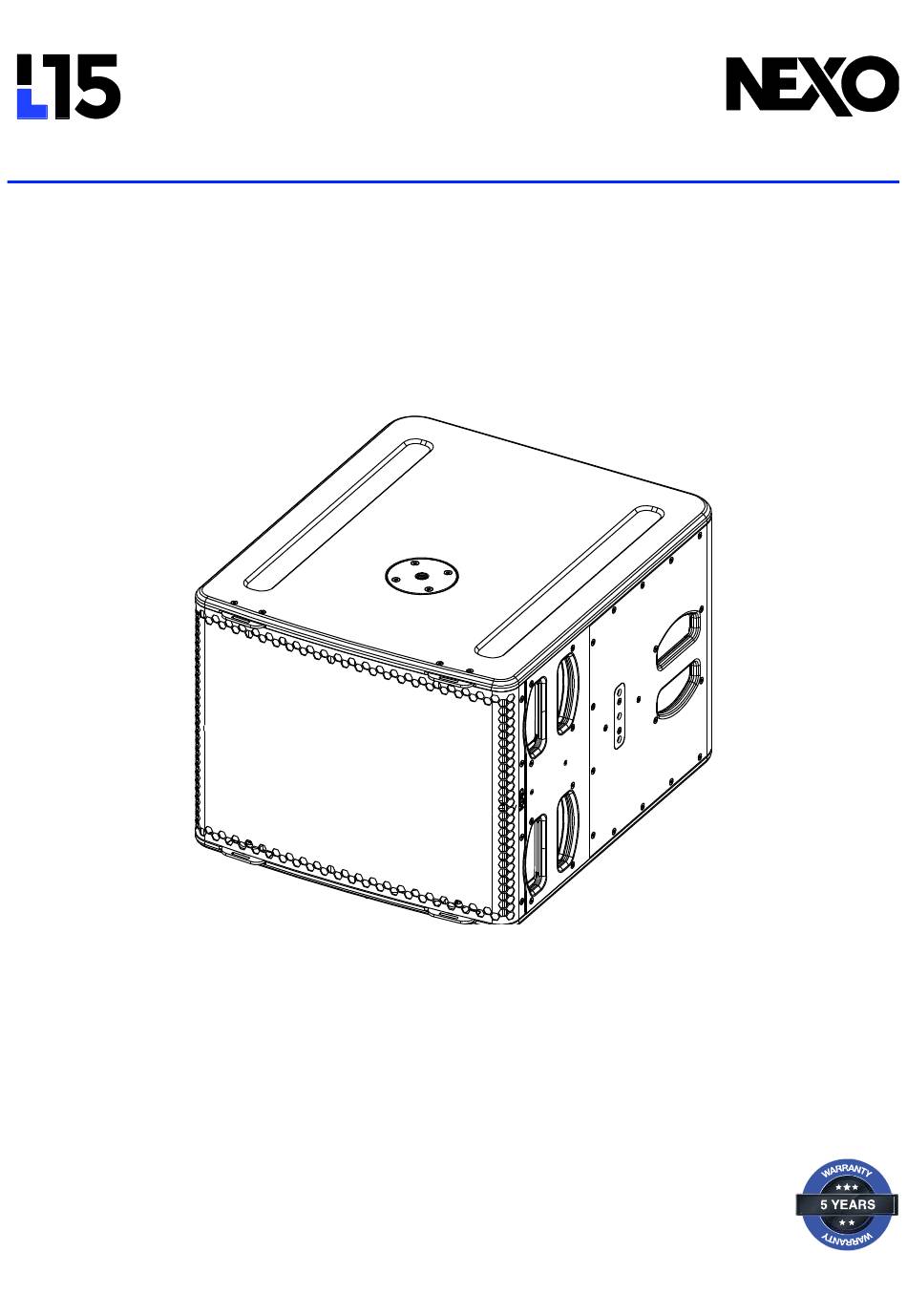

- Page 1 DP3950-01-DI User manual...
-
Page 2: Table Of Contents
ARRAY EQ _____________________________________________________________________________ 9 MAINTENANCE ________________________________________________________________________ 10 TECHNICAL SPECIFICATIONS ___________________________________________________________ 12 USER NOTES _________________________________________________________________________ 13 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Equipment
Equipment EQUIPMENT 3 locations for hanging, 1 on the top for speaker stand and on both side. Assembly on distance rod or speaker stand Place distance rod on the connector plate (M20) of the Sub. Place the main cabinet on the distance rod / monitor stand (diameter of 35mm), IMPORTANT Speaker stand must be rated for the weight of the main cabinet. -
Page 5: Description
L15 uses the 1+/1- pins, (2+/2- through). Amplification • The L15 subwoofer must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. • The following table shows the number of P12 speakers and L15 subwoofers usable with each solution. -
Page 6: Preset
Setup « BA » (Back) for the subwoofer turned around. • The ideal ratio for a directional use is 2x L15 in CARDIO FRONT mode on top of 1x Reversed L15 in CARDIO BACK mode. From 1:1 to 3:1 ratio can be used. - Page 7 PRESET in stage monitor Stage monitor applications with Subs (OMNI or CARDIO modes) in front of house Front of house applications with Subs (OMNI or CARDIO modes) Page 7 / 14...
-
Page 8: Accessories
All L15 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling L15 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire L15 accessory range if any component is purchased from different supplier. -
Page 9: Array Eq
ARRAY EQ LNT-2CASE15 Flight case for 2x L15 ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): Page 9 / 14... -
Page 10: Maintenance
MAINTENANCE MAINTENANCE Grille Changing: Remove 8 screws 15’’ Driver Remove 20 screws Remove the trap Remove 8 screws, 2 inside with a curved screwdriver. Remove the driver. Page 10 / 14... - Page 11 05HPB15-4 05HPB15-4R/K Recone kit (with fasteners) 05CNX01 Connection plate Black without lexan (with fasteners) 05CNX01-PW Connection plate White without lexan (with fasteners) 05LEXCNX-L15 Lexan CNX L15 Black 05LEXCNX-L15PW Lexan CNX L15 White 05CNXNL4MDV-1 Speakon NL4 MDV1 Page 11 / 14...
-
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS L15 WITH NEXO ELECTRONICS Model 40Hz – 120Hz Frequency range (±6dB) Peak SPL Level (1m) 139 dB Peak Operating voltage 55Vrms (150Vpeak) Crossover Frequency 85Hz; 120Hz 4Ω Nominal Impedance SPECIFICATIONS Model 1x 15’’ – 4 ohms – Long excursion – Neodymium driver... -
Page 13: User Notes
