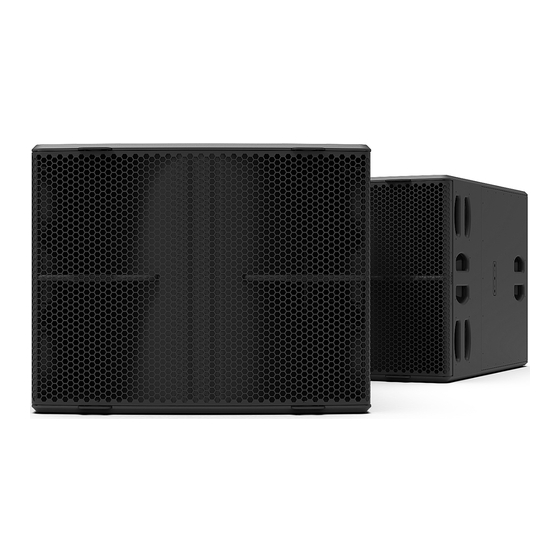

Summary of Contents for Nexo L20

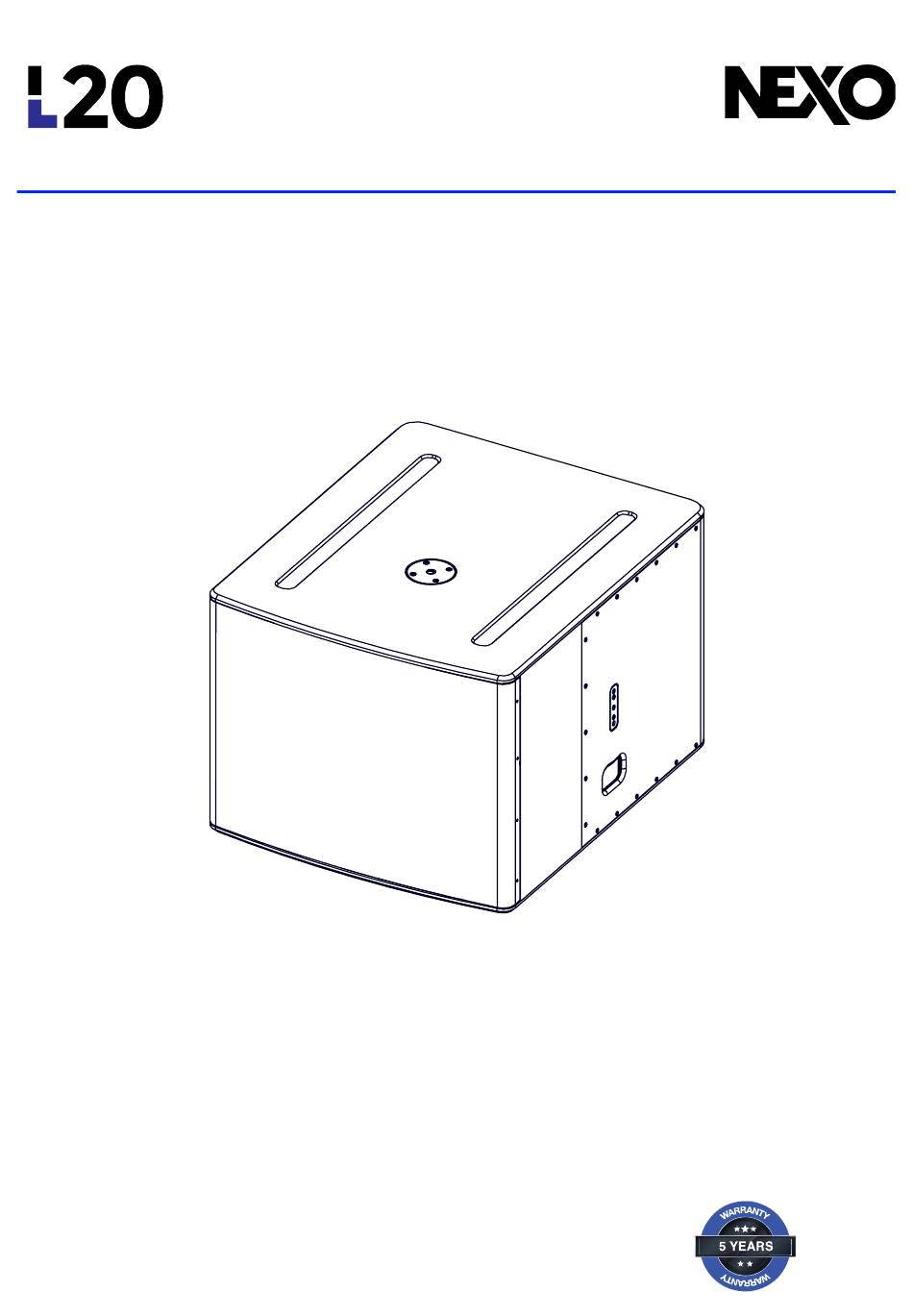

- Page 1 2024-01-25 DP7596-01-DI L20-I User manual IP55...
-
Page 2: Table Of Contents
ARRAY EQ ____________________________________________________________________________ 11 MAINTENANCE ________________________________________________________________________ 12 TECHNICAL SPECIFICATIONS ___________________________________________________________ 14 USER NOTES _________________________________________________________________________ 15 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. -
Page 4: Equipment
Stand height and footprint must be defined to prevent assembly from collapsing. Ensure that audience is not allowed within a safety area which radius is equal or higher than assembly height. Test steadiness of the assembly by pushing in all directions. Page 4 / 16 L20-I... -
Page 5: Description
IP55: Be careful to place the IPCOV correctly. → Amplification • The L20 subwoofer must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. • The following table shows the number of L18 or L20 subwoofers usable with each solution. -
Page 6: Preset
Setup « BA » (Back) for the subwoofer turned around. • The ideal ratio for a directional use is 2x L20 in CARDIO FRONT mode on top of 1x Reversed L20 in CARDIO BACK mode. From 1:1 to 3:1 ratio can be used. - Page 7 PRESET in stage monitor Stage monitor applications with Subs (OMNI or CARDIO modes) in front of house Front of house applications with Subs (OMNI or CARDIO modes) Page 7 / 16 L20-I...
-
Page 8: Accessories
All L20 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling L20 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire L20 accessory range if any component is purchased from different supplier. - Page 9 ACCESSORIES LNI-3L20 L20 Rigging system (up to 3; Cardio or Omni) Refer to the Product Data Sheet. PNI-P18TOL20 PNI-P18TO2L20 P18 Under 1x L20 P18 Under 2x L20 (Omni or Cardio) Refer to the Product Data Sheet Page 9 / 16...
- Page 10 ACCESSORIES VNI-CPL03 Coupling Bar for 2 or 3 L20 Refer to the Product Data Sheet. Page 10 / 16 L20-I...
-
Page 11: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): 0 Array (d ) ad usting Frequency ( Page 11 / 16 L20-I... -
Page 12: Maintenance
MAINTENANCE MAINTENANCE Grille Changing: Remove 8 screws 21’’ Driver Remove 26 screws Remove the trap Remove 8 screws. Remove the driver. Page 12 / 16 L20-I... - Page 13 Complete grille Installation Black (with fasteners) 05L20UA-IPW Complete grille Installation White (with fasteners) 05HPB20-4 HP 20" BASS NEODYNIUM 4 Ohms QUAD 4.5" VOICE COIL 05HPB20-4R/K HPB20-4 RECONE KIT 05PATIN01 Rubber Skid Black (with fasteners) 05PATIN01-PW Rubber Skid White (with fasteners) Page 13 / 16 L20-I...
-
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS L20 WITH NEXO ELECTRONICS Model 28Hz – 120Hz Frequency range (±6dB) Peak SPL Level (1m) 141 dB Peak Operating voltage 80 Vrms (180 Vpeak) Crossover Frequency 60 Hz; 85Hz; 120Hz 4Ω Nominal Impedance SPECIFICATIONS Model 1x 20’’ – 4 ohms – Long excursion – Neodymium driver... -
Page 15: User Notes
USER NOTES USER NOTES Page 15 / 16 L20-I... - Page 16 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 16 / 16 L20-I...
