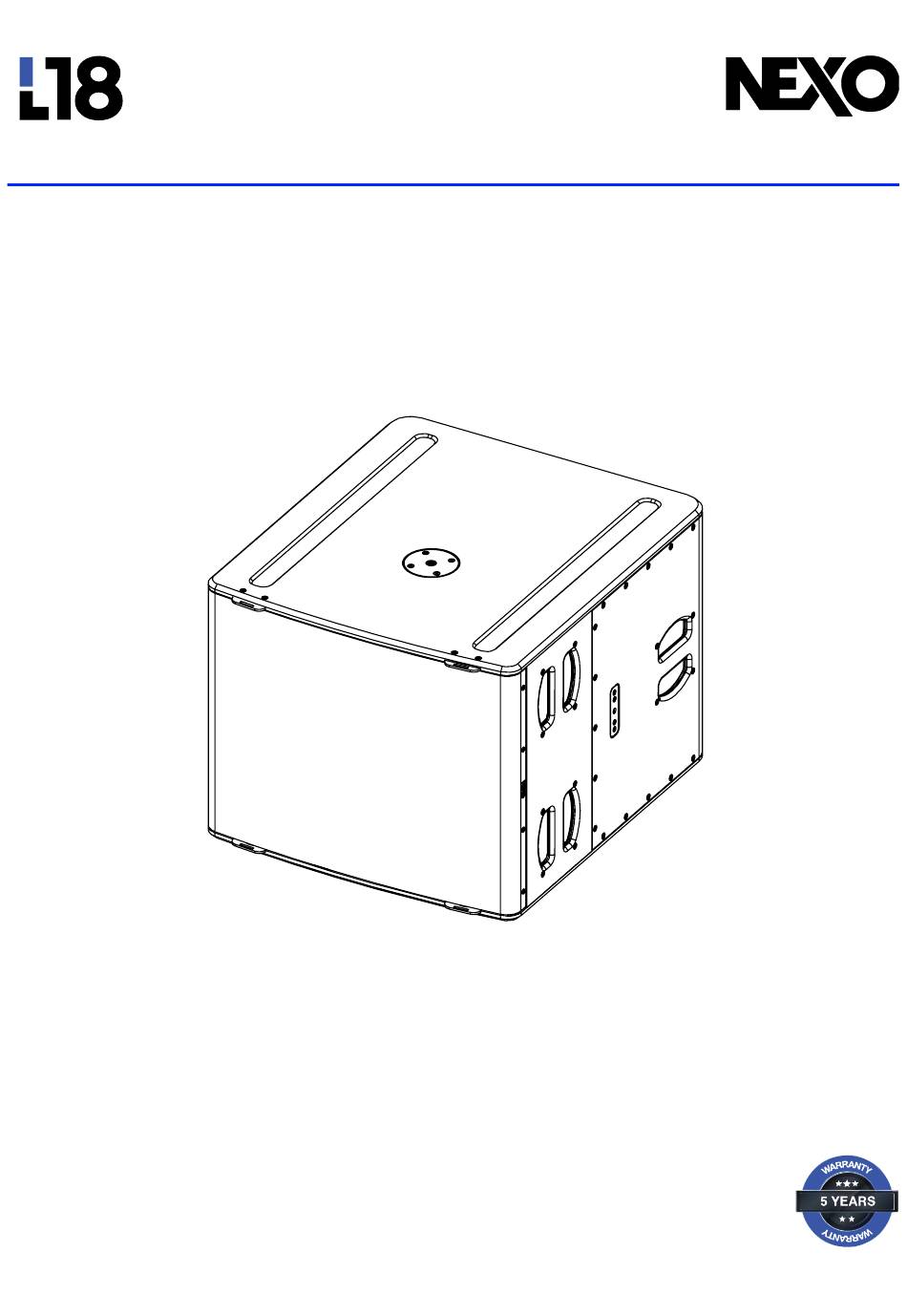

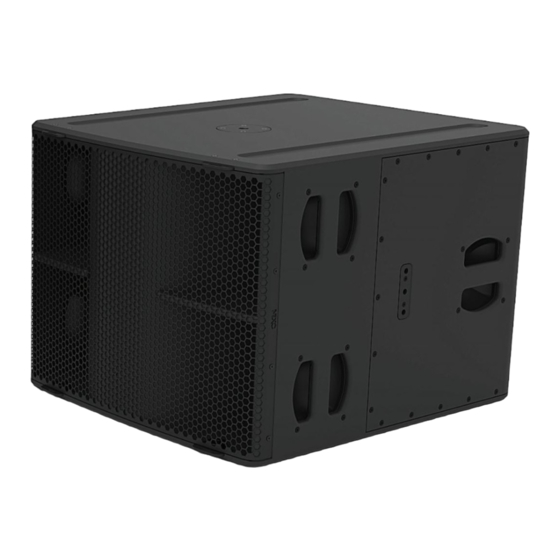

  • Page 1 DP4535-02-DI User manual...

  • Page 2: Table Of Contents

    ARRAY EQ ____________________________________________________________________________ 10 MAINTENANCE ________________________________________________________________________ 11 TECHNICAL SPECIFICATIONS ___________________________________________________________ 13 USER NOTES _________________________________________________________________________ 14 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker...

  • Page 3: Warnings

    If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system.

  • Page 4: Equipment

    Equipment EQUIPMENT 3 locations for hanging, 1 on the top for speaker stand and on both side. Assembly on distance rod or speaker stand Place distance rod on the connector plate (M20) of the Sub. Place the main cabinet on the distance rod / monitor stand (diameter of 35mm), IMPORTANT Speaker stand must be rated for the weight of the main cabinet.

  • Page 5: Description

    L18 uses the 1+/1- pins, (2+/2- through). → Amplification • The L18 subwoofer must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. • The following table shows the number of L18 subwoofers usable with each solution.

  • Page 6: Preset

    PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. There are two setting range for surrounding speaker L18: → “OMNI” Setups; For a traditional use of the subwoofer in omnidirectional radiation (require at least one subwoofer and a channel of amplifier).
  • Page 7 PRESET in stage monitor Stage monitor applications with Subs (OMNI or CARDIO modes) in front of house Front of house applications with Subs (OMNI or CARDIO modes) Page 7 / 16...

  • Page 8: Accessories

    All L18 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling L18 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire L18 accessory range if any component is purchased from different supplier.
  • Page 9 ACCESSORIES LNI-3L18 L18 Rigging system (up to 3; Cardio or Omni) Refer to the Product Data Sheet. LNT-WB18 Wheelboard Refer to the Product Data Sheet. LNT-COV18: COVER FOR L18 ON WHEELBOARD Page 9 / 16...

  • Page 10: Array Eq

    ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): 1 Array (d ) ad ustin Frequency ( Page 10 / 16...

  • Page 11: Maintenance

    MAINTENANCE MAINTENANCE Grille Changing: Remove 8 screws 18’’ Driver Remove 20 screws Remove the trap Remove 8 screws, 2 inside with a curved screwdriver. Remove the driver. Page 11 / 16...
  • Page 12 MAINTENANCE Place 8 screws. Follow the sequence below to tight the screw.Place and tight the 12 others screws. Tightening torque: 3.0 Nm (Thread Locker: Loctite 242) Spare parts MARK QUANTITY REFERENCE DESIGNATION 05DOUILM20N Connector Plate M20 Black (with fasteners) 05DOUILM20W Connector Plate M20 White (with fasteners) 05L18UA Complete grille Black (with fasteners)

  • Page 13: Technical Specifications

    TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS L18 WITH NEXO ELECTRONICS Model 32Hz – 120Hz Frequency range (±6dB) Peak SPL Level (1m) 140 dB Peak Operating voltage 80Vrms (180Vpeak) Crossover Frequency 60 Hz; 85Hz; 120Hz 4Ω Nominal Impedance SPECIFICATIONS Model 1x 18’’ – 4 ohms – Long excursion – Neodymium driver...

  • Page 14: User Notes

    USER NOTES USER NOTES Page 14 / 16...
  • Page 15 Page 15 / 16...
  • Page 16 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 16 / 16...
