2024-01-25
DP7592-01-DI

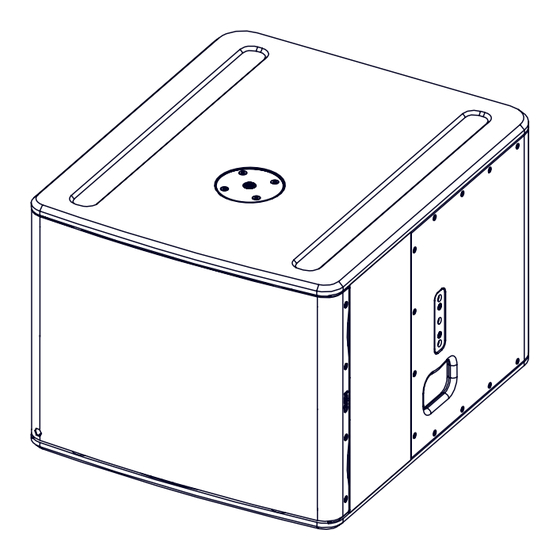

L15-I
User manual
IP55

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L15-I and is the answer not in the manual?

Questions and answers

Related Manuals for Nexo L15-I

Summary of Contents for Nexo L15-I

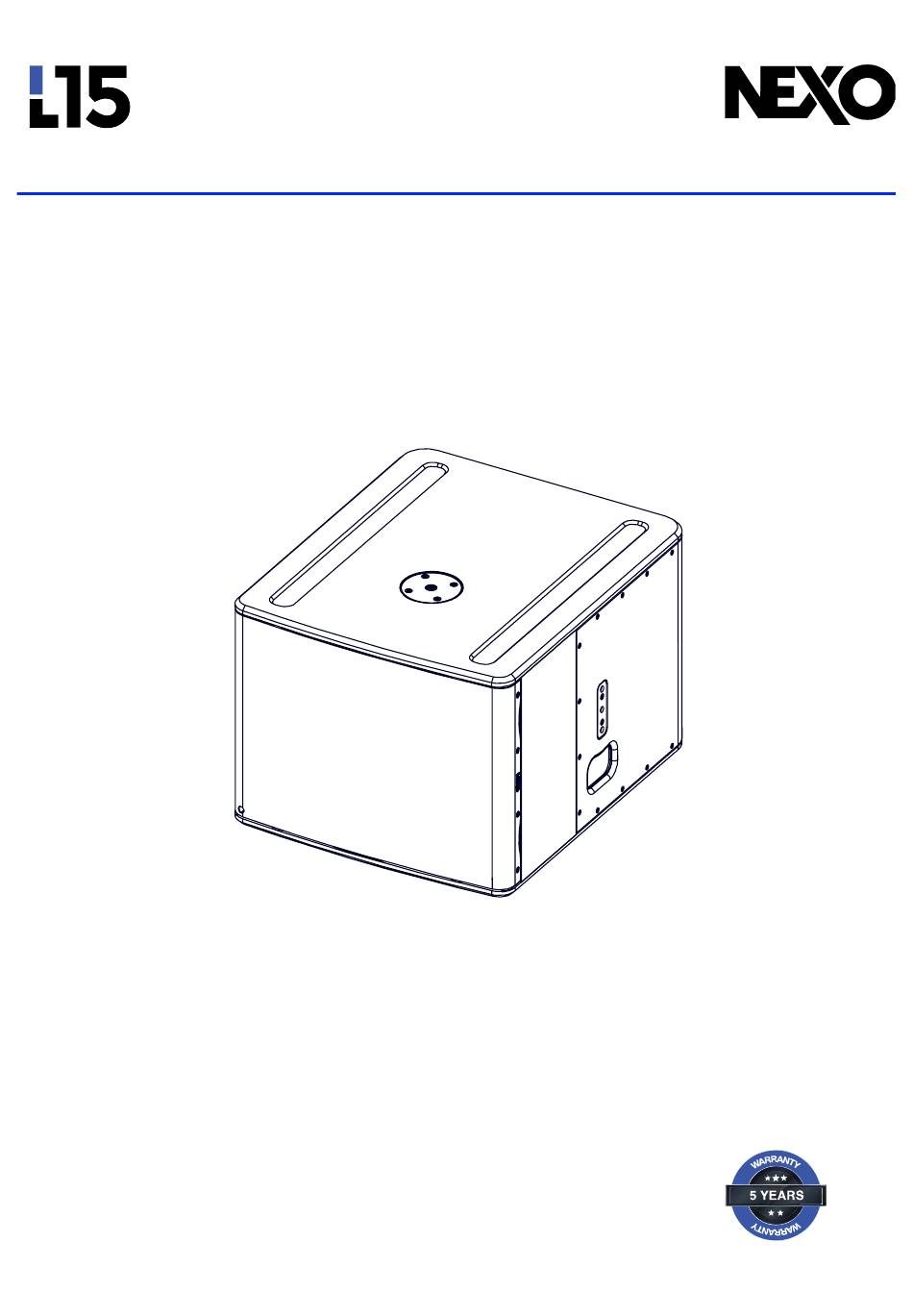

  • Page 1 2024-01-25 DP7592-01-DI L15-I User manual IP55...

  • Page 2: Table Of Contents

    ARRAY EQ ____________________________________________________________________________ 10 MAINTENANCE ________________________________________________________________________ 11 TECHNICAL SPECIFICATIONS ___________________________________________________________ 13 USER NOTES _________________________________________________________________________ 14 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker...

  • Page 3: Warnings

    Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.

  • Page 4: Equipment

    Stand height and footprint must be defined to prevent assembly from collapsing. Ensure that audience is not allowed within a safety area which radius is equal or higher than assembly height. Test steadiness of the assembly by pushing in all directions. Page 4 / 16 L15-I...

  • Page 5: Description

    IP55: Be careful to place the IPCOV correctly. → Amplification • The L15-I subwoofer must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. • The following table shows the number of P8/1012 speakers and L15 subwoofers usable with each solution.

  • Page 6: Preset

    Setup « BA » (Back) for the subwoofer turned around. • The ideal ratio for a directional use is 2x L15-I in CARDIO FRONT mode on top of 1x Reversed L15-I in CARDIO BACK mode. From 1:1 to 3:1 ratio can be used.
  • Page 7 PRESET P8/10/12 in stage monitor Stage monitor applications with Subs (OMNI or CARDIO modes) P8/10/12 in front of house Front of house applications with Subs (OMNI or CARDIO modes) Page 7 / 16 L15-I...

  • Page 8: Accessories

    All L15 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling L15 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire L15 accessory range if any component is purchased from different supplier.
  • Page 9 PNI-P12TO2L15 P12 under L15 Rigging system P12 under 2x L15 Rigging system (Cardio or Omni) Refer to the Product Data Sheet. VNI-CPL01 Coupling Bar for 2 or 3 L15 Refer to the Product Data Sheet. Page 9 / 16 L15-I...

  • Page 10: Array Eq

    ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): Page 10 / 16 L15-I...

  • Page 11: Maintenance

    Grille Changing: Remove 8 screws, tightening torque: 3.5 Nm (Thread Locker: Loctite 242) 15’’ Driver Remove 20 screws Remove the trap Remove the driver. Remove 8 screws. Tightening torque: 3.5 Nm (Thread Locker: Loctite 242) Page 11 / 16 L15-I...
  • Page 12 Complete grille installation Black (with fasteners) 05L15UA-IPW Complete grille installation White (with fasteners) 05PATIN01 Rubber Skid Black (with fasteners) 05PATIN01-PW Rubber Skid White (with fasteners) 15’’ Driver (with fasteners) 05HPB15-4 05HPB15-4R/K Recone kit (with fasteners) Page 12 / 16 L15-I...

  • Page 13: Technical Specifications

    TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS L15-I WITH NEXO ELECTRONICS Model L15-I 40Hz – 120Hz Frequency range (±6dB) Peak SPL Level (1m) 139 dB Peak Operating voltage 55Vrms (150Vpeak) Crossover Frequency 85Hz; 120Hz 4Ω Nominal Impedance SPECIFICATIONS Model L15-I 1x 15’’ – 4 ohms – Long excursion – Neodymium driver...

  • Page 14: User Notes

    USER NOTES USER NOTES Page 14 / 16 L15-I...
  • Page 15 Page 15 / 16 L15-I...
  • Page 16 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 16 / 16 L15-I...
