LNI-3L20
DP6437 – 01a - DI
Contents:
X8
M10x30 (a)
(a): The type of the screws may differ from the representation
Weight: 28 kg / 62 lb
Up to 3x L20 Rigging System
X1

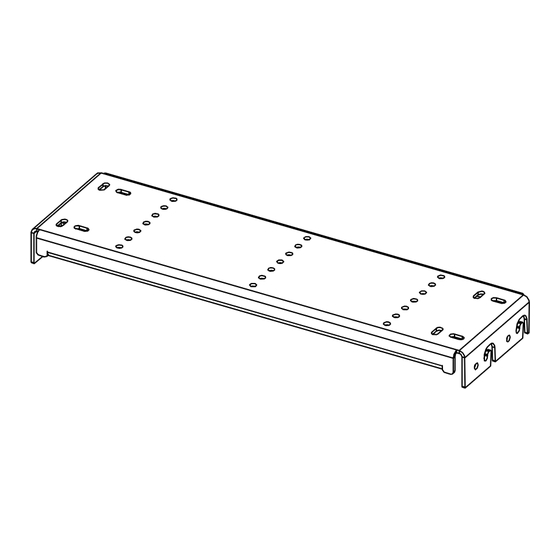

Ceiling Plate
X18
- Read t his docum ent before using.
- Keep t his docum ent .
- Observe all warnings and caut ions.
M10x18 (a)
X4 L20 Plate
X2
Main Plate
PAGE 1 OF 4
Advertisement
Table of Contents
Related Manuals for Nexo Up to 3x L20 Rigging System
Summary of Contents for Nexo Up to 3x L20 Rigging System
- Page 1 LNI-3L20 DP6437 – 01a - DI Up to 3x L20 Rigging System Contents: X4 L20 Plate Ceiling Plate M10x30 (a) M10x18 (a) Main Plate (a): The type of the screws may differ from the representation Weight: 28 kg / 62 lb - Read t his docum ent before using.
- Page 2 Dimensions: For fixation, you have the choice between M8 and M10 WARNINGS Ensure that the mounting location and fasteners can support at least 4 times the weight of all the installed cabinets, auxiliary equipment and cables. Use only the provided screws (thread lock coated) and accessories. Implementation of L20 Prepare the Main plates by screwing the M10x30 screws on the holes (see picture below), do not tighten completely and leave at least 6mm.
- Page 3 Assembly on the ceiling plate Place the assembly below the ceiling plate. Tighten the screws. Secure with the 4 provided M10x30 screws. LNI-3L20 frame tilt (+/- 1°) Holes 1 Holes 2 Holes 3 Holes 4 Holes 5 Holes 6 Holes 7 2x L20 11°...
- Page 4 • NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself. • Please check the web site nexo-sa.com for the latest update. - Read t his docum ent before using. - Keep t his docum ent .
