2025-02-04
ANI-LK03
DP8102 – 01 - DI

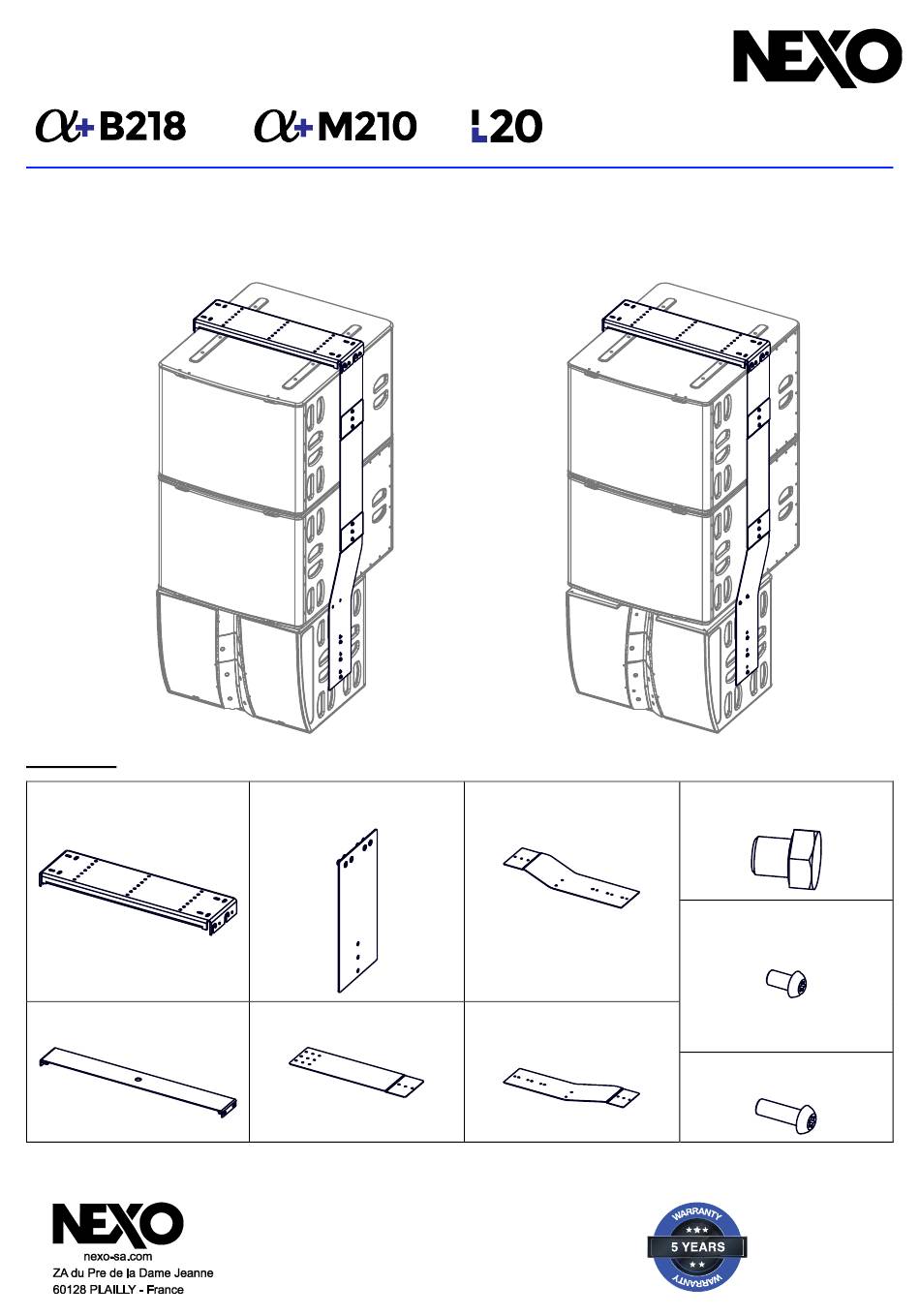

Rigging System M210 under 2x B218/L20
Contents:
x1
Ceiling Plate
X1
H Plate
Weight: 31 kg / 68 lb
x2
Main Plate
x2
Side Plate
(a): The type of the screws may differ from the representation.
- Read t his docum ent before using.
- Keep t his docum ent .
- Observe all warnings and caut ions.
x1
Left Plate
x1
Right Plate
x1
M20x20 (a)
x18
M10x18 (a)
x12
M10x30 (a)
PAGE 1 OF 5
Advertisement
Related Manuals for Nexo a+ B218
Summary of Contents for Nexo a+ B218
- Page 1 2025-02-04 ANI-LK03 DP8102 – 01 - DI Rigging System M210 under 2x B218/L20 Contents: Ceiling Plate Main Plate Left Plate M20x20 (a) M10x18 (a) H Plate Side Plate Right Plate M10x30 (a) (a): The type of the screws may differ from the representation. Weight: 31 kg / 68 lb - Read t his docum ent before using.
- Page 2 2025-02-04 Size For fixation, you have the choice between M8 and M10 WARNINGS Ensure that the mounting location and fasteners can support at least 4 times the weight of all the installed cabinets, auxiliary equipment and cables. Use only the provided screws (thread lock coated) and accessories. For free-hanging installation, fixing at one point in the center is permissible.
- Page 3 2025-02-04 Place the assembly below the ceiling plate. Tighten the screws. Secure with the 4 provided M10x30 screws. Implementation M210 with HF block in “Wide” position Place M210 between the plates, using 6x M10x18 screws. - Read t his docum ent before using. - Keep t his docum ent .
- Page 4 2025-02-04 Implementation 2x B218 or L20+B218 – M210 with HF block in “Narrow” position Prepare the Main plates by screwing the Place the assembly below the ceiling Tighten the screws. Secure with the 4 M10x30 screws on the holes (see picture plate.
- Page 5 Note 3 : Angles are in relation to Horizontal position ( 0° ) • NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself. • Please check the web site nexo-sa.com for the latest update.
