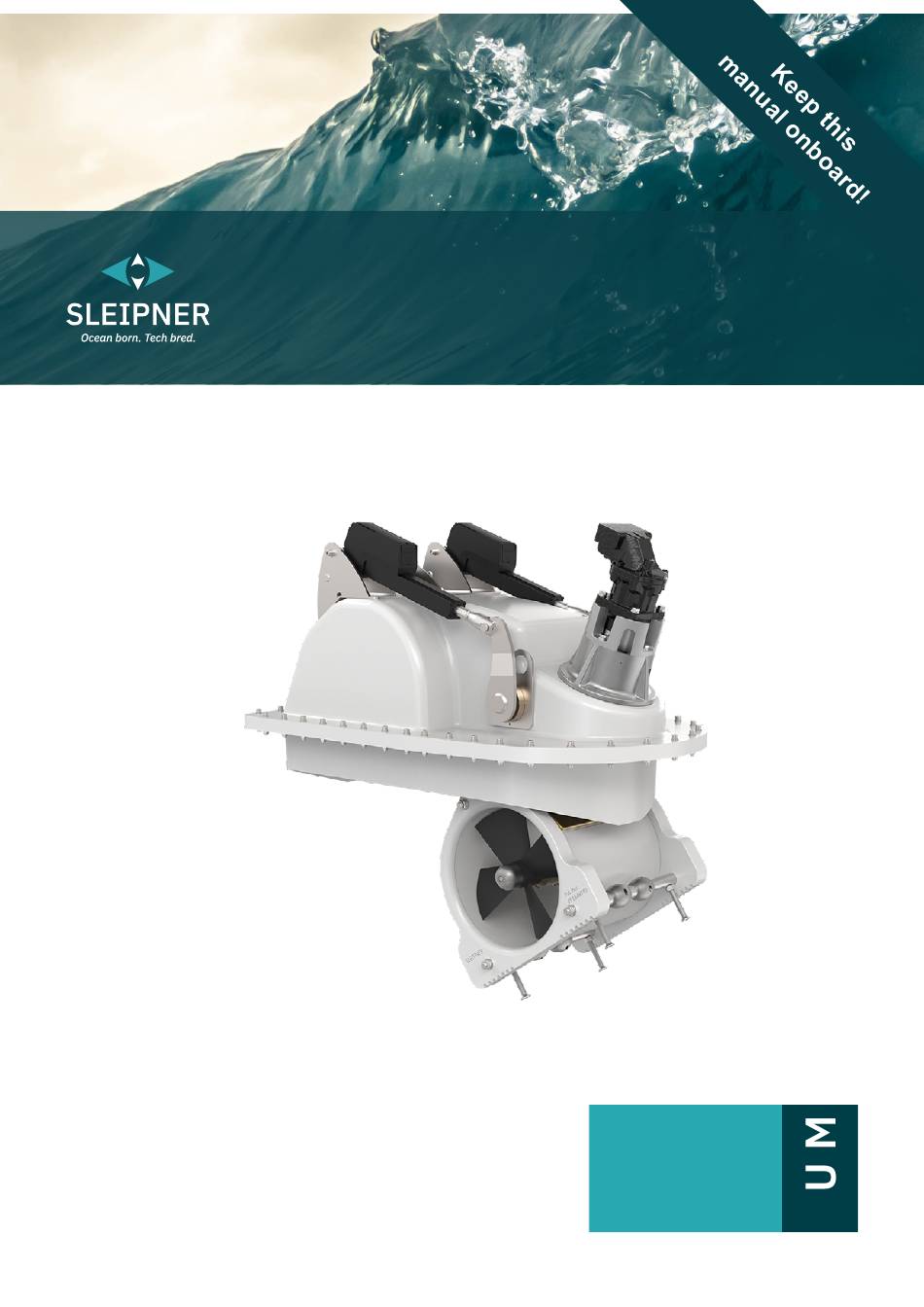

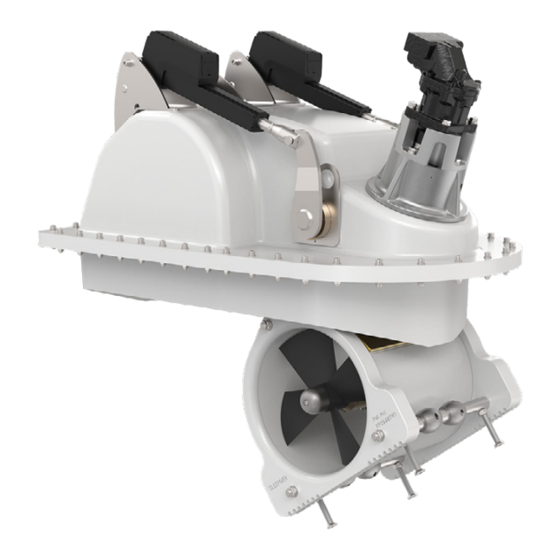

- Page 1 User Manual For Hydraulic Retract Thruster Models SRHP 650 Series DOCUMENT ID: SLEIPNER GROUP 7792 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2024 Norway LANGUAGE: www.sleipnergroup.com To download your language go to www.sleipnergroup.com...
-
Page 2: Table Of Contents
Manually retracting the thruster ................................13 Maintenance checklist ................................... 14 Service and Support................................... 16 Product Spare Parts and Additional Resources ..........................16 Warranty Statement .................................... 16 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway MC_0020 SRHP user manual... -
Page 3: General Operation Consideration And Precaution Guidelines
Failure to follow any considerations and precautions can lead to serious personal injury, death and/or damage your product. Failure to follow any considerations and precautions will render all warranties given by Sleipner Motor as VOID. MC_0411 General Operation Consideration and Precaution Guidelines... -
Page 4: User Operation
! Please refer to the graphic for special considerations relating to your model ! The following is an operation guide to ALL Sleipner control products. Ensure to familiarise yourself with the functionality and operation of your specifi c control device. -
Page 5: Proportional Control Panel
Proportional Control Panel Activating the stern thruster Activating the bow thruster Using your control device/ panel press the button or move the Using your control device/ panel press the button or move the joystick in the direction you intend to turn the boat. Ensure to use joystick in the direction you intend to turn the boat. -
Page 6: Maintenance, Vessel In Water
Maintenance, vessel in water MC_0752 As a part of the seasonal service of your Thruster before every season, always check that: • All electrical connections are clean and fastened fi rmly. • Your batteries are in good condition. • There is no leakage from the hydraulic hoses or fi ttings to the motor. •... -
Page 7: Maintenance, Vessel Out Of Water
Maintenance, vessel out of water MC_0753 As a part of the seasonal service of your Thruster before every season, always check: • The propeller and tunnel for damage. • The propeller is fastened securely to the propeller shaft. • The thruster tunnel and gear leg is clean and free from marine growth. •... -
Page 8: Basic Troubleshooting
Basic Troubleshooting MC_0754 Always check the error code on the control panel before seeking assistance from the website help desk or from your Sleipner dealer/distributor. The error code is basic information for further action. If you are unable to understand what to check, you must consult a Sleipner distributor. -
Page 9: Phc-3 Fault Codes
PHC-3 Fault Codes MC_0117 Fault Code Fault Name Fault Description Action 106.202.0 Emergency Stop Bow - Bow emergency stop is button activated -Release bow emergency stop 106.203.0 Emergency Stop Bow Starboard - Bow Starboard emergency stop is button activated -Release bow starboard emergency stop 106.204.0 Emergency Stop Bow Port - Bow Port emergency stop is button activated... - Page 10 PHC-3 Fault Codes MC_0117 Fault Code Fault Name Fault Description Action "-Wires shorted or sensor defective, check wiring/sensor 10505.0.16 PHC AI 2 - Short Circuit Analog Input 2 (4-20mA) sensor short circuit -Replace sensor" "-Check for open circuit, power consumption < 5.0 Watt 10508.0.13 PHC DOUT AC PUMP UNLOAD - Open Circuit AC Pump Unload valve open circuit...
- Page 11 PHC-3 Fault Codes MC_0117 Fault Code Fault Name Fault Description Action 10527.1.0 PHC VFD Not Ready Instance 1 - VFD not ready -VFD external run enable/power available signal is lost. PHC VFD ABB Parameter Instance 1 Level ABB ACS550 parameter values 2001 or 2002 cannot be a 10528.1.10 -Check ABB ACS550 parameter 2001 and 2002.
-
Page 12: Src-3 Fault Codes
Inspect actuators and lifting arms for visual damage. Check fault Lift or Lock Actuators went past their expected end-position 10602.0.22 Retract Motion OUT Fault - Out of position specifi c data for more info. Contact Sleipner Dealer if problem is when hatch deploying. not resolved. 10602.0.51 Retract Motion OUT Fault - Current High Blocked while deploying hatch. -
Page 13: Manually Retracting The Thruster
Manually retracting the thruster MC_0772 In the event that the thruster has a malfunction, and is locked in the outer position, there is a possibility to retract the thruster manually. Follow the procedure described below to solve this situation. Note: If possible, try to fi nd the root cause of the situation, before starting the manual retract process. Remove the plastic covers from the hatch actuators (Item 1), using a suitable screwdriver. -
Page 14: Maintenance Checklist
Maintenance Checklist MC_0759 Maintenance items Date of execution Vessel in water checkpoints Vessel out of water checkpoints Vessel in water checkpoints Vessel out of water checkpoints Vessel in water checkpoints Vessel out of water checkpoints Vessel in water checkpoints Vessel out of water checkpoints SRHP user manual 7792 2024... - Page 15 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SRHP user manual 7792 2024...
-
Page 16: Service And Support
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents SRHP user manual... - Page 17 © Sleipner Group, All rights reserved The information given in the document was right at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi...
- Page 18 SRHP user manual 7792 2024...
