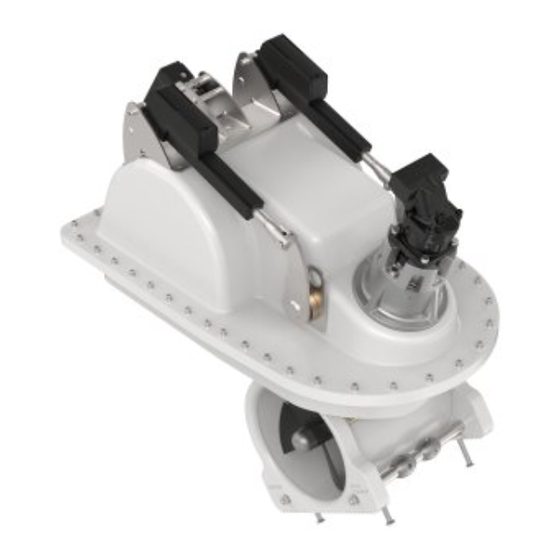

- Page 1 Installation Guide For Hydraulic Retractable Thruster Models SRHP650 DOCUMENT ID: SLEIPNER MOTOR AS 7530 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2023 Norway LANGUAGE: www.sleipnergroup.com...
-
Page 2: Table Of Contents
IF operating the hatch during any work/ maintenance around or inside the retract hatch, USE CAUTION. MC_0411 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway MC_0451 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 3: Responsibility Of The Installer
Any attempt to directly control or connect into the S-Link™ control system without a designated and approved interface will render all warranties and responsibilities of all of the connected Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated Sleipner supplied interface, you are still required to install at least one original Sleipner control panel to enable efficient troubleshooting if necessary. -
Page 4: Hydraulic Retract Dimensions
Dimension code Dimension description inch Height Length 98.4 Width 201.4 Wall mounting screw Holes 180.8 Wall mounting screw Holes 113.2 Wall mounting screw Holes (a) Wall mounting screw Holes Height Width (W) Length (L) MG_0702 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 5: Hull Specifications
Hull Specifi cations MC_0609 Use sealants, adhesives or bonding material compatible with the materials of your vessels hull and Sleipner product. Product Specifi cations MC_0625 Light Duty Heavy Duty Power Output Weight Maximum Product Lubrication Thrust is kg Thrust is kg... -
Page 6: Positioning Of The Retract Thruster
To avoid conflict between the thruster and propulsion propellers, trim tabs or rudders the stern installation can be offset from the keel center line. Retract thruster Thruster moved to avoid conflict Hatch opens towards the direction of the bow Thruster moved to avoid conflict Transom MG_0121 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 7: Preparing A Sandwich Hull For Retract System
2. Reinforce the area by applying several bonding layers to strengthen the hull for the operation of the retract thruster. Area where laminate and core is to be removed Minimum 100mm Minimum 100mm SRF flange SRF flange Reinforced bonding layers MG_0472 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 8: Marking And Trimming Of Srf Flange
-Ø200mm = 97mm -Ø300mm = 115mm -Ø386mm = 148mm Hull profile to cut from SRF flange Ensure SRF flange edge sits flush on the hull WARNING DO NOT cut the SRF flange length edge MG_0117 Sleipner Hydraulic Retract Thruster 7530 2023... - Page 9 45º Hull 45º 45º Outside hull 4 Drill holes View from outside the hull Stern 30º 30º 45º Hull 45º Hatch 30º 45º 45º 45º Starboard Port 45º 45º Hull Hatch 45º 45º MG_0724 Sleipner Hydraulic Retract Thruster 7530 2023...
-
Page 10: Src-3 Modes Of Operation
SRC-3 Modes of Operation MC_0676 Sleipner Retract Controller (SRC-3) has two operational modes, Normal Operation and Service Mode. Operating actuators and thrusters during installation with personnel or other objects in proximity could cause serious personnel injury and impose damage to the unit. Therefore, power should always be disconnected from the SRC-3 when working on the retractable thruster or in the vicinity of the retract installation. - Page 11 DOWN button aligns with the most extended actuator. When the menu is active it is possible to enter Normal Operation by holding the Select button for 3 seconds. Sleipner Hydraulic Retract Thruster 7530...
-
Page 12: Installation Pre-Check
Retract thruster Lifting lug for retract thruster Apply polyester or resin to corner areas to temporally hold the retract unit in place MODE STATUS FAULT SELECT DOWN Lock actuator Lift actuators MG_0651 Sleipner Hydraulic Retract Thruster 7530 2023... - Page 13 USE CAUTION. Conflict with hatch hatch opens and hull without conflict Hatch is not flush with Hatch is flush with hull hull when retracted when retracted MG_0700 Sleipner Hydraulic Retract Thruster 7530 2023...
-
Page 14: Required Modifications After Pre-Check
Hull Conflict with hatch hatch opens and hull without conflict Use wedge to prop the SRF flange to required height Hull hatch opens Hull without conflict Hatch closed with pressure MG_0133 MG_0707 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 15: Srf Flange Installation
Hull Layers of fiberglass cloth If there are gaps between SRF and hull fill with extra epoxy filler or equivalent. Grind and smooth the surfaces after curing time. MG_0119 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 16: Retract Housing Installation
Insert and lightly fasten bolts to allow for the future removal of the washer spacers. Allow the MS Polymer or equivalent to semi-cure and remove the washers. Fasten bolts with the defi ned torque. Start with the 4 corner bolts. Washers Bolt Washer and nut Tighten bolts to a maximum of 30Nm - 22lb/ft MG_0696 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 17: Hatch Installation
Unscrew and remove hatch to smooth off excessive material before coating the hatch. Tighten bolts Glue tunnel rings and nuts to hatch before tightening bolts When deploying the thruster, remove the spacer block located above the tunnel MG_0708 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 18: Connection Of Hydraulic Hose To Motor
Always use the upper positioned drain port for optimal lubrication of Speed sensor the motor. (optional) Pre fill motor housing from the upper drain port with hydraulic oil before start-up MG_0683 Drain port 1 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 19: Electrical Installation
MC_0664 Plan the location of Sleipner Retract Controller (SRC-3) before starting with the electrical installation. Actuators are delivered with 5m cables. The SRC-3 must be mounted in a location that allows for connection of the actuator cables. Excessive cable lengths should be cut down to ensure an installation where the cables are properly laid out and fi xated to avoid cable chafi ng and being caught in moving parts. - Page 20 Secure the cable network route. Cut cables from the retract thruster to the desired length. Cable layout focusing on shortest distance. Secure cables Actuator communication cables S-Link Power Actuator spur power cable cable cables MG_0681 Sleipner Hydraulic Retract Thruster 7530 2023...
- Page 21 Insert the cables back into the control box. See fi gure for specifi cation of cable entry into SRC-3 and location of actuator types.. Actuator communication cables Actuator power cables Lock actuator Lift actuator Lift actuator Lock actuator Lock actuator Lift actuators Lift actuators SRC-3 power cable MG_0701 Sleipner Hydraulic Retract Thruster 7530 2023...
-
Page 22: Manual Main Switch Wiring Diagram 24V Retract Thruster
S-Link Spur cable SRC-3 Fuse 30A Retract Thruster The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation. S-Link Backbone cable SRC-3 Fuse 30A Retract Thruster MG_0625 Sleipner Hydraulic Retract Thruster 7530 2023... -
Page 23: S-Link System Description
MC_0120 S-Link is a CAN-based control system used for communication between Sleipner products installed on a vessel. The system uses BACKBONE Cables as a common power and communication bus with separate SPUR Cables to each connected unit. Only one S-Link POWER cable shall be connected to the BACKBONE Cable. -
Page 24: Service And Support
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents Sleipner Hydraulic Retract Thruster... -
Page 25: Ce Declaration Of Conformity
With ISO 9001 certificate: 1484-2007-AQ-NOR-NA, issued by DNV-GL Declare that the product: Product Description: Retract thruster hydraulic Model Number: SRHP650 Subject to installation, maintenance and use conforming to their intended purpose, is in conformity with the provisions of the following EU Directives: •... - Page 26 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Sleipner Hydraulic Retract Thruster 7530 2023...
- Page 27 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Sleipner Hydraulic Retract Thruster 7530 2023...
- Page 28 © Sleipner Group, All rights reserved The information given in the document was right at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice.
