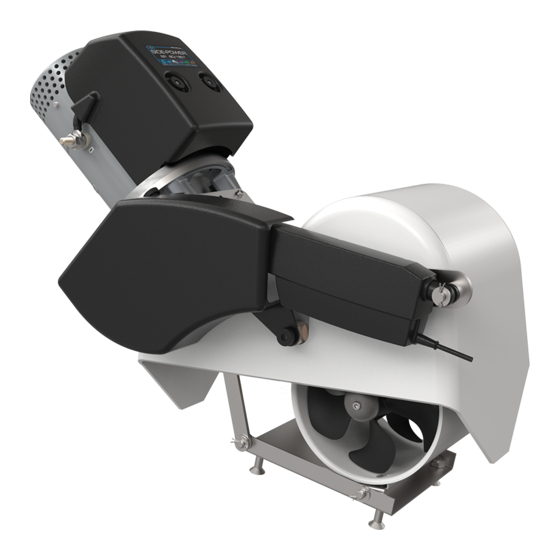

- Page 1 Installation Guide For Electric Retractable Thruster Models SR80, SR100 DOCUMENT ID: SLEIPNER MOTOR AS 2755 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2023 Norway LANGUAGE: www.sleipnergroup.com...
-
Page 2: Table Of Contents
Accidental activation of the retract mechanism can cause serious injury due to the high-pressure force used for closing the hatch. MC_0411 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway MC_0020 SR80 & SR100 2755 2023... -
Page 3: Responsibility Of The Installer
Any attempt to directly control or connect into the S-Link™ control system without a designated and approved interface will render all warranties and responsibilities of all of the connected Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated Sleipner supplied interface, you are still required to install at least one original Sleipner control panel to enable efficient troubleshooting if necessary. -
Page 4: Product Measurements
9.13 9.13 9.13 9.13 Retract depth 8.94 8.94 8.94 8.94 Internal Tunnel Diameter 7.28 Retract width Mould width 10.59 10.59 10.59 10.59 Water depth Width 13.2 13.2 13.2 13.2 *Valid for SR & SRP MG_0201 SR80 & SR100 2755 2023... -
Page 5: Product Specifications
44 kg / 97 lbs *Voltage measured at motor terminals when thruster is running Hull Specifi cations MC_0609 Use sealants, adhesives or bonding material compatable with the materials of your vessels hull and Sleipner product. SR80 & SR100 2755 2023... -
Page 6: Positioning Of The Retract Thruster
Always ensure enough space for the complete SR unit including motor, actuators, retract frame, future service and for installation moulding to the hull. Stern Installation Thruster moved to avoid conflict Thruster moved to avoid conflict Bow Installation WATERLINE Hatch opens towards the Minimum tunnel depth direction of travel SR 80 & 100 = 185mm MG_0157 SR80 & SR100 2755 2023... -
Page 7: Preparing A Sandwich Hull For Retract Systems
Hull construction typical in many vessels is a composite layering method called a sandwich. To ensure the retract thruster is installed securely to these hull types, additional hull structure reinforcement is required to strengthen the area around the Sleipner retract housing mould. -
Page 8: Marking And Trimming Of Retract Housing
Mark cut line Transfer hull shape Reference height, Front Front Front (front and aft) Hull centerline Front Mark outline of thruster flange 5 - 6 Template hatch Outline of thruster flange Drill holes Drill holes MG_0156 SR80 & SR100 2755 2023... -
Page 9: Installation Pre-Check
Ensure drive shaft stays aligned when opening Support hatch when the actuator is released Conflict with hatch hatch opens and hull without conflict Hatch does not close Hatch closed with with pressure pressure MG_0382 SR80 & SR100 2755 2023... -
Page 10: Required Modifications After Pre-Check
Raise retract housing on stern end Conflict with hatch hatch opens and hull without conflict Use wedge to prop the retract housing to required height hatch opens Hatch closed with without conflict pressure MG_0383 SR80 & SR100 2755 2023... -
Page 11: Sr Housing Mould Installation
Fill all gaps with Expoxy filler or equivalent Apply Epoxy filer or equivalent for bonding between hull and retract housing Grind in this area, deepest where the hull and lower unit meets. Layers of fiberglass cloth MG_0384 SR80 & SR100 2755 2023... -
Page 12: Hatch Installation
Glue on the underside of Glue on cut-out hatch retract plate Tape around the hatch and apply Epoxy filler or equivalent to all hatch Hatch bolts edges Keep the hatch closed tight during the curing process MG_0474 SR80 & SR100 2755 2023... -
Page 13: End Stop Adjustment
Adjust micro switch so that it engages and fasten screws, to ensure that the correct retract end position is defi ned. Attach the actuator and actuator mechanism cover. End-stop sensor Manually close hatch Adjustment screws for 2 - 3 end-stop micro-switch Actuator Cover MG_0387 SR80 & SR100 2755 2023... -
Page 14: Motor To Bracket Installation
Install the relevant motor and other electronics according to electrical instructions in the manual IMPORTANT Ensure the holding key and coupling are aligned when fitted Bolt tightening force (4x) 33 Nm (24 lb/ft) MG_0385 SR80 & SR100 2755 2023... -
Page 15: Electrical Installation For Retract Systems
Follow the instructions in the Motor Lug Connection chapter when fastening the power cables to the motor. Sleipner offers both manual main switches and Automatic Main Switches (AMS). Sleipner AMS is controlled by the control panel in addition to the option of manual operation. -
Page 16: Motor Lug Connection
Ensure to follow the label on the retract thruster controller to identify the correct confi guration for the MOTOR cable and ACTUATOR cable. Connecting the wrong cables will damage the Retract Thruster Controller. The label on the Retract Thruster Controller clearly lists the correct cable connection sockets Actuator cable Motor cable MG_0553 SR80 & SR100 2755 2023... -
Page 17: Manual Main Switch Wiring Diagram 12V Retract Thruster
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation. S-Link Backbone cable Fuse 10A ANL Fuse Manual Main S-Link Spur cable Switch Retract Thruster BATTERY MG_0605 SR80 & SR100 2755 2023... -
Page 18: Automatic Main Switch Wiring Diagram 12V Retract Thruster
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation. S-Link Backbone cable Automatic Main Switch S-Link Spur cable Fuse 10A ANL Fuse Retract Thruster Fuse 5A BATTERY MG_0549 SR80 & SR100 2755 2023... -
Page 19: Manual Main Switch Wiring Diagram 24V Retract Thruster
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation. Fuse 10A S-Link Backbone cable ANL Fuse Manual Main S-Link Spur cable Switch Retract Thruster BATTERY BATTERY MG_0606 SR80 & SR100 2755 2023... -
Page 20: Automatic Main Switch Wiring Diagram 24V Retract Thruster
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation. S-Link Backbone cable Fuse 10A Automatic Main Switch S-Link Spur cable ANL Fuse Retract Thruster BATTERY Fuse 5A BATTERY MG_0604 SR80 & SR100 2755 2023... -
Page 21: S-Link System Description
MC_0120 S-Link is a CAN-based control system used for communication between Sleipner products installed on a vessel. The system uses BACKBONE Cables as a common power and communication bus with separate SPUR Cables to each connected unit. Units with low power consumption are powered directly from the S-Link bus therefore one power cable must be connected to the BACKBONE Cable through a T-Connector. -
Page 22: Control Panel Installation
For Control Panel installation please refer to the Installation Guide accompanying the control panel to be installed. Installation Guide Control Panel SLEIPNER MOTOR AS DOCUMENT ID: REVISION: P.O. Box 519 N-1612 Fredrikstad DATE: Norway www.sleipnergroup.com LANGUAGE: SR80 & SR100 2755 2023... -
Page 23: Post Installation Checklist
Correct drive direction as per control panel: ..............................The compartment for the thruster has been isolated from general bilge water and has no obvious or suspected risks for flooding: .................................................................................................................................. Other comments by installer: ........................................................................................................................SR80 & SR100 2755 2023... -
Page 24: Service And Support
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents SR80 & SR100... - Page 25 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SR80 & SR100 2755 2023...
- Page 26 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SR80 & SR100 2755 2023...
- Page 27 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SR80 & SR100 2755 2023...
- Page 28 © Sleipner Group, All rights reserved The information given in the document was right at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi...
