- Page 1 User Manual SR & SR IP SERIES OPERATIONAL USER MANUAL SLEIPNER AS P.O. Box 519 Document id: 5920 N-1612 Fredrikstad Norway Revision: www.sleipnergroup.com Date: 2021 © Sleipner Motor AS 2021...
-
Page 2: Table Of Contents

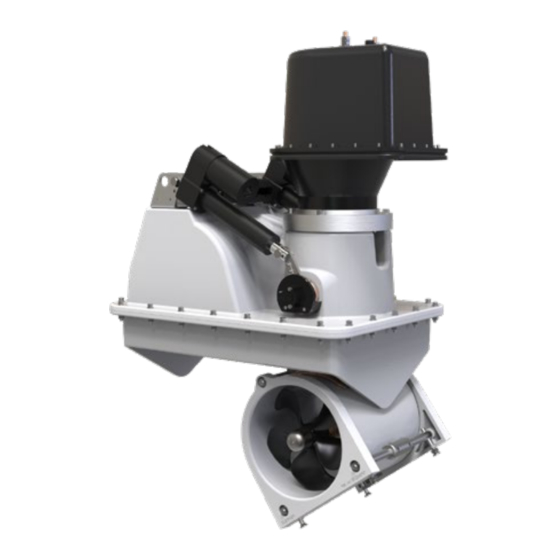

SRL130/250T-24V - SRL130 Retract thruster 24V SRL170/250TC-IP - SRL170 Retract thruster 24V DECLARATION OF CONFORMITY MC_0020 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway Declare that this product with accompanying standard control systems complies with the... -
Page 3: Important User Considerations And Precautions
Failure to follow the Considerations and precautions can cause serious injury / damage and will render all warranty given by Sleipner Motor AS VOID. Never use thrusters when close to objects/ persons or pets in the water. The thruster will draw objects into the tunnel and the rotating propellers. -
Page 4: Thruster Operation
Thruster Operation MC_0059 ! Please refer to the graphic for special considerations relating to your model ! Take time to practice operation in open water to become familiar with the thruster and to avoid damages to your boat or people. How to use a Bow Thruster 1. -
Page 5: Control Panel
Retractable Control Panel Directional buttons. GREEN status LED. RED status LED. Press both “ON” button to activate thruster. Press “OFF” button to deactivate thruster. YELLOW status LED. Activating the bow thruster Activating the stern thruster *Control panel example *Control panel example Activating both bow and Activating both bow and stern thruster to push the... -
Page 6: Maintenance
Maintenance MC_0063 ! Please refer to the graphic for special considerations relating to your model ! As a part of the seasonal service of your Thruster before every season, always check that: • There must always be oil in the oil reservoir. Refi ll if necessary with gear oil EP90. Change the gear oil a minimum of every second year. Check the gear oil quality in the gear house every time the boat is out of the water. - Page 7 DO NOT apply anti-fouling DO NOT clean with chemicals, hot water or high-pressure water jet in this area. Anode Gear leg Check annually rubber element. Check and re-lubricate with waterproof grease if necessary Anode Retract IF over 3 mm movement, Break-away rings must be replaced IMPORTANT...
-
Page 8: Troubleshooting
Basic Troubleshooting MC_0013 Before seeking assistance from the website help desk from your Side-Power dealer/ distributor, please perform these tests. (NB: If you are unable to understand what to check, you must consult a Side Power distributor.) CHECK SOLUTION The motor runs, but there is no thrust Check propellers are fi... -
Page 9: Alarm Codes
Troubleshooting - Alarm Codes MC_0061 (NB: THE MAIN SWITCH MUST BE TURNED OFF IMMEDIATELY WHEN AN IPC-ERROR OCCURS, TO PREVENT OVERHEATING OF THE THRUSTER MAIN RELAYS.) THRUSTER WILL NOT RETRACT WHILE REVERSING AT “HIGH” SPEED. THIS WILL TRIGGER THE “Retract operation obstructed” ALARM. IF ALARM IS TRIGGERED, REDUCE SPEED AND PRESS BOTH “ON”... -
Page 10: Checklist
Seasonal Checklist MC_0062 SR user manual 5920 2021... -
Page 11: Spare Parts
Warranty statement MC_0024 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. - Page 12 SLEIPNER AS * AS P.O. Box 519 * N-1612 Fredrikstad * Norway The information given in the document was correct at the time it was published. However, Sleipner AS can not accept liability for any inaccuracies or omissions it may contain.
