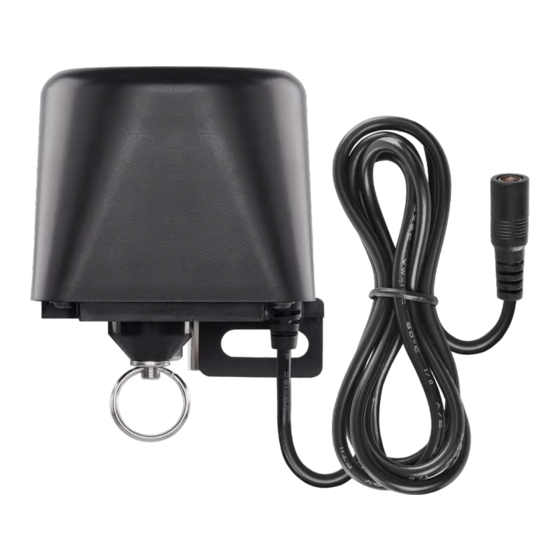

P5640S
GB | Valve Controller
Contents
Safety Instructions and Warnings ....................................................................................2
Technical Specifications ....................................................................................................3
Device Description .............................................................................................................4
Installation and Assembly .................................................................................................5
Mobile Application .............................................................................................................6
Controls and Functions .....................................................................................................8
Troubleshooting FAQ ........................................................................................................12
GB | 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND EMOS GoSmart P5640S
Summary of Contents for LEGRAND EMOS GoSmart P5640S
-
Page 1: Table Of Contents

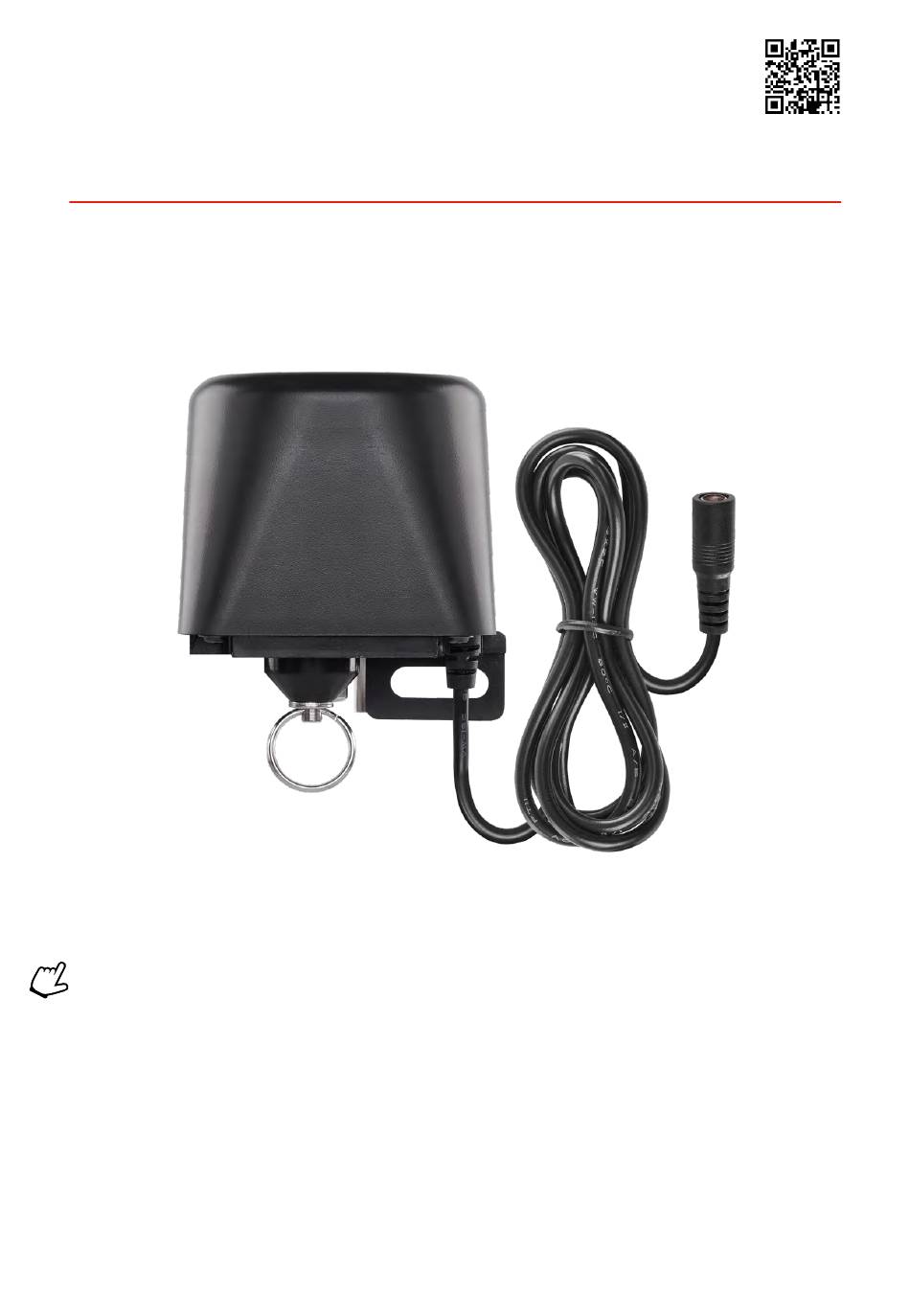

P5640S GB | Valve Controller Contents Safety Instructions and Warnings ..................2 Technical Specifications ....................3 Device Description ......................4 Installation and Assembly ....................5 Mobile Application ......................6 Controls and Functions .....................8 Troubleshooting FAQ ......................12 GB | 1... -
Page 2: Safety Instructions And Warnings
Safety Instructions and Warnings Read the user manual before using the device. Follow the safety instructions in the manual. • Do not tamper with the internal electric circuits of the product – doing so may damage the product and will automatically void the warranty. The product should only be repaired by a qualified professional. •... -
Page 3: Technical Specifications
Technical Specifications 70 mm 105 mm WiFi frequency: 2.4 GHz, max. 25 mW e.i.r.p. Valve pressure: 1.6 MPa Valve size: 1/2", 3/4", 1" and 1 1/4" Closing time: 5–10 seconds Opening time: 5–10 seconds Torque: 30~60 kg/cm Power supply: adapter, 230 V AC/12 V DC, 1 A (included) Adapter cable length: 0.9 m Controller cable length: 1.4 m... -
Page 4: Device Description
Device Description 1 – valve controller lever 2 – valve handle 3 – valve shaft 4 – mounting clamp 5 – manual safety 6 – mounting hole 7 – power cable 8 – central shaft of the valve controller 9 – LED indicator 10 –... -
Page 5: Installation And Assembly
Installation and Assembly The device should be installed by a plumber. The valve should be mounted at a spot where it can be opened or closed fully. 1. Affix the mounting clamp onto the pipe, then mount it onto the mounting hole of the valve controller, and firmly tighten the screws. -
Page 6: Mobile Application
Mobile Application The valve controller can be controlled using a mobile app for iOS or Android. Download the EMOS GoSmart app for your device. Tap the Log In button if you‘ve used the app before. Otherwise, tap the Sign Up button and register. Pairing with the App GB | 6... - Page 7 Pairing the Zigbee Gateway with the App (If you‘re already using the gateway, skip this step) Plug a power cable into the gateway and enable GPS and Bluetooth connection on your mobile device. Tap Add Device in the app. Tap the GoSmart list on the left and tap the Smart Multi Gateway IP-1000Z icon. Follow the instructions in the app and enter the name and password for your 2.4 GHz Wi-Fi network.
-
Page 8: Controls And Functions
Controls and Functions Application Menu Quick ON (green icon)/OFF (grey icon) button OFF state (valve is closed) ON state (valve is open) Access programme settings Set the default state of the controller in case of a power outage Advanced settings GB | 8... - Page 9 Setting Programmes Countdown The device will turn off/on after a set period of time (dependent on the current state of the valve). Set the time (max. 11 hours, 59 minutes) and tap the blue arrow. A countdown will start. Tapping the trash bin icon deletes the setting. Schedule Schedules automatic activation at set times (e.g.
- Page 10 Circulate Cycles between ON and OFF within a set time period at a set frequency. Tap the + at the bottom and set the time period, the days, and the time for which the valve should be open and closed, then save. Tapping the toggle button activates (blue) or deacti- vates (grey) the setting.
- Page 11 Inching (Delayed Deactivation) After turning on, the valve controller will automatically turn off after a set time period (max. 60 minutes). Set the time and tap the toggle button to activate (blue) or deactivate (grey) the setting. Setting the Default State of the Controller in Case of a Power Outage Tap the setting‘s icon in the...
-
Page 12: Troubleshooting Faq
Troubleshooting FAQ The valve is not in its place: Check that the centre of the valve controller and the centre of the valve are on the same axis. If not, the motor might overheat and sustain damage. The valve is stuck: Use the manual safety to realign the valve.
