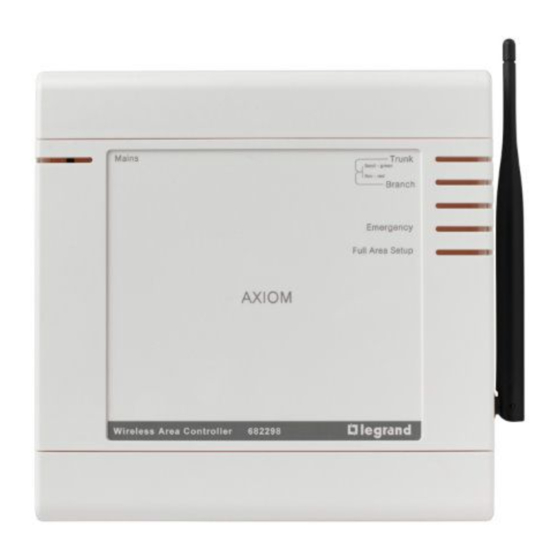

Axiom Wireless Area Controller
Remove cover
1
2
Installation
Power point
240 Vac
Installation best practice
Keep metal bodies away from WAC.
WAC antenna must always be in vertical direction.
204715 (24.04.09)
1
2
WAC
2.1 m
le gr an d
25 cm
Mounting holes dimensions
168 mm
Installation
(top view)
Connections
1. IN
10-wire flat cable (only)
2. OUT
3. IN
8-wire cable (only)
4. OUT
5. BRANCH
6. BRANCH (screw terminal)
