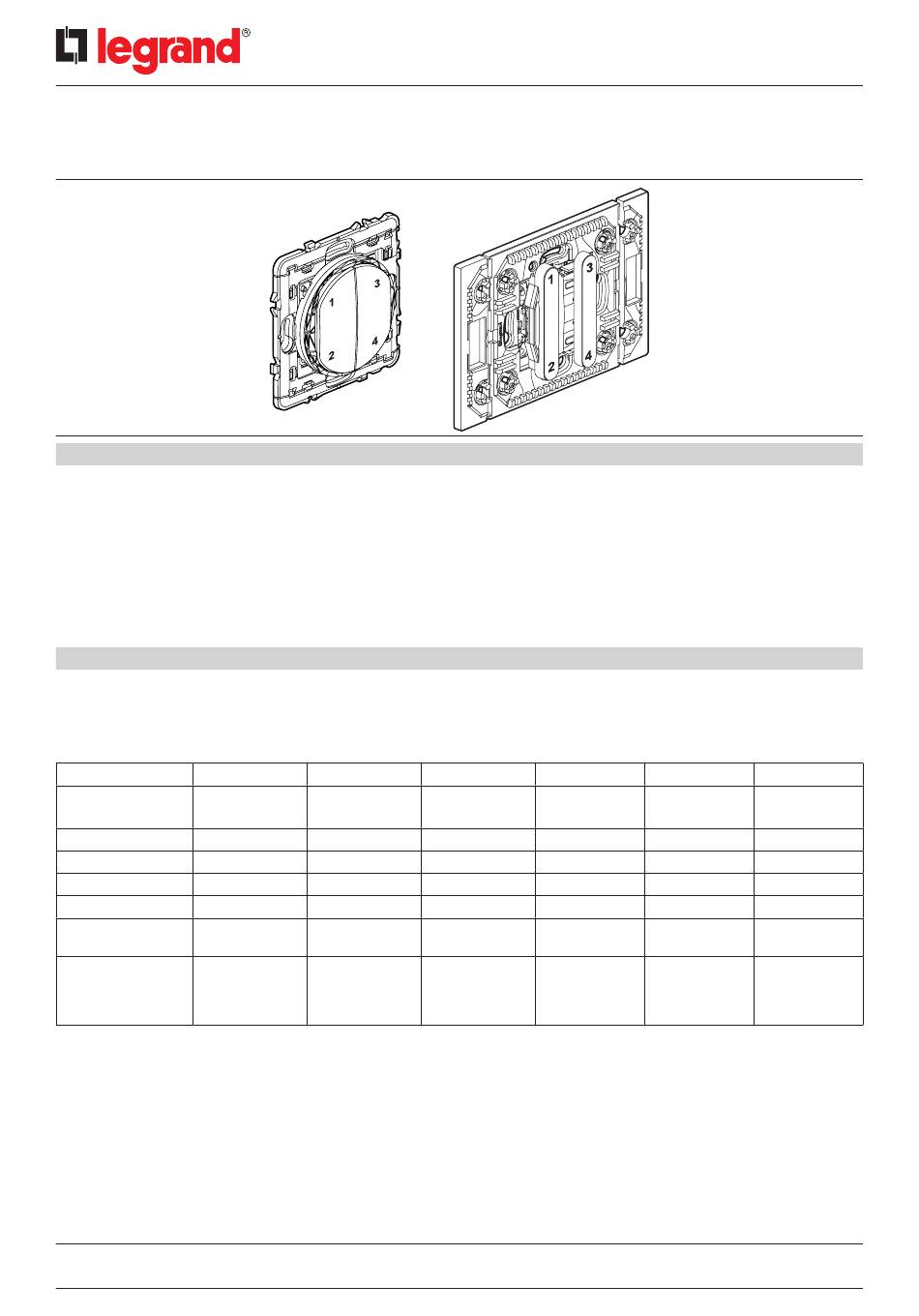

Wireless and batteryless 4 scenes control
1. USE
Wireless, batteryless control for lighting 4 scenes fonction.
Controls the connected lighting micromodules, socket-outlets, switches and roler shutters.
Fixes directly on the wall or screws onto a flush-mounting box.
Fits on a piece of furniture (movable).
Can be associated with 20 connected products.
Can be combined in multigangs with other wiring devices (except in Arteor, Arteor Advance).
Mechanism designed to run 1 million operations
2. RANGE
Wireless, batteryless control for lighting 4 scenes fonction.
Equipped with a RESET button (hidden) used to return to factory
Repositionable self-adhesive fixings supplied.
To be equipped with plate.
0 677 55L/68L
Céliane (before 2024)
Céliane (2024)
CB0424 - CB9424
Dooxie
6 000 84L
Mosaïc
0 770 26L
Valena Next
7 418 02L
5 742 88
Arteor
5 744 40
AA5705MW (Matt)
AC5705MW (Matt)
Arteor Advance
AA5706MW (Matt)
AC5706MW (Matt
Technical data sheet : S000113321EN-02
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel : 0 (+33) 5 55 06 87 87 Fax : 0 (+33) 5 55 06 88 88
www.legrand.com
White
Black
0 677 69L/87L
(graphite)
CN0424 - CN9424
7 418 62L
AA5705MB (Matt)
AC5705MB (Matt)
AA5706MB (Matt)
AC5706MB (Matt)
Updated : 19/03/2025
Cat. No(s) : AA5705MB/MT/MW - AC5705MB/MT/MW
AA5706MB/MT/MW - AC5706MB/MT/MW
CB0424 - CB9424 - CN0424 - CN9424 - CT0424
0 770 26L - 6 000 84L - 7 418 02L/32L/62L
5 742 88/94 - 5 743 23 - 5 744 40/41/42/43 - 5 748 37
Titanium
Aluminium
067756L
CT0424
7 418 32L
5 742 94
5 744 43
AA5705MT (Matt)
AC5705MT (Matt)
AA5706MT (Matt)
AC5706MT (Matt)
0 677 55L/56L/68L/69L/87L
Champagne
Magnesium
5 748 37
5 743 23
5 744 42
5 744 41
Created : 28/10/2020
1/5
