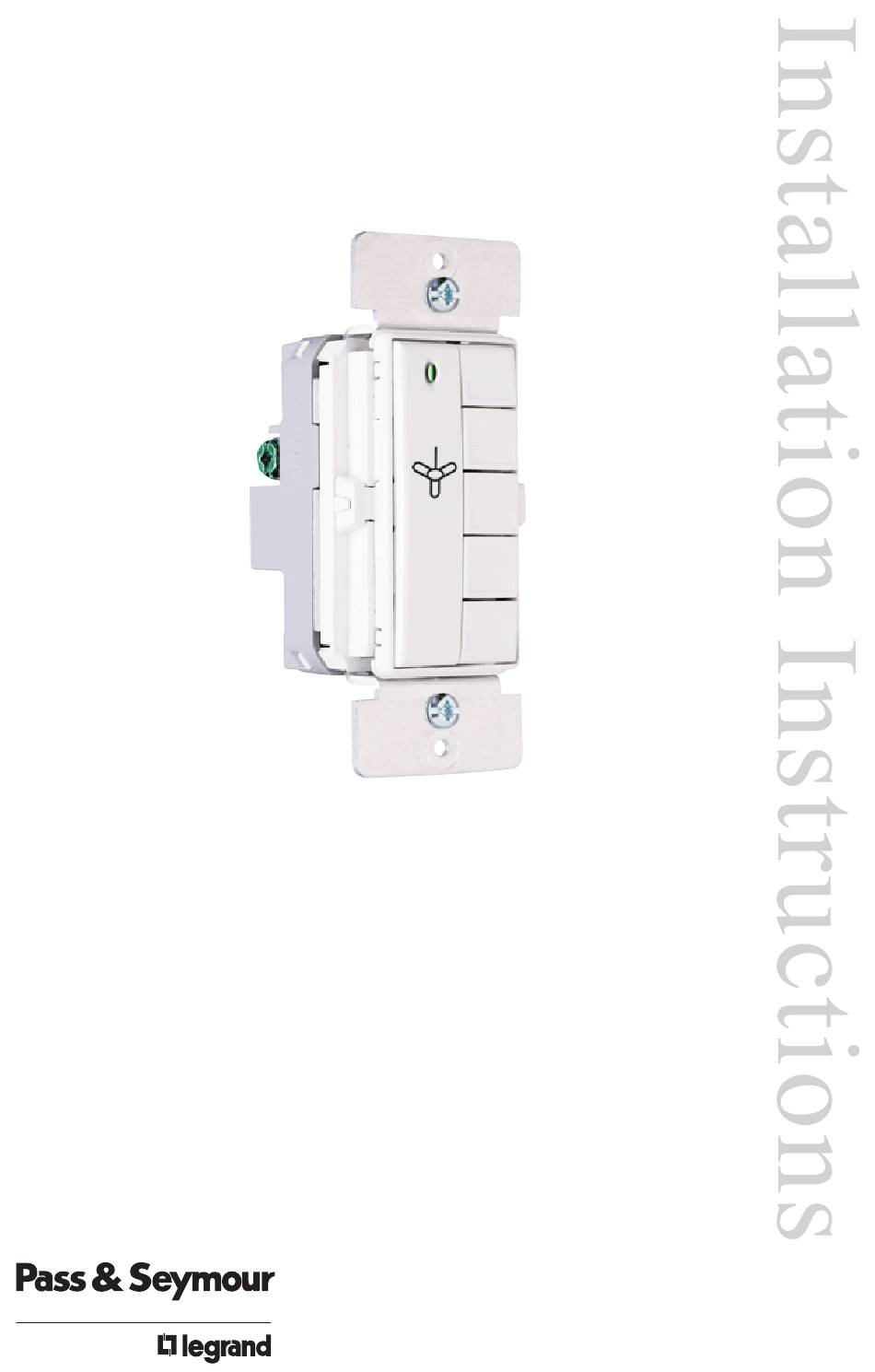

PSHCF
LightSense
Fan Control
™
Specifications
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120VAC, 60Hz
Operating Temperature . . . . . . . . .32°F to 104°F (0°C to 40°C)
Maximum Load Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5A
Load Type Compatibility . . . . . . . . .Up to two ceiling fan motors
U.S. Patent 6,175,220. Other utility,
design, and foreign patents pending.
800.223.4185
Syracuse, NY 13221-4822
www.passandseymour.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Pass & Seymour LightSense PSHCF
Summary of Contents for LEGRAND Pass & Seymour LightSense PSHCF
- Page 1 PSHCF LightSense Fan Control ™ Specifications Voltage ....... . .120VAC, 60Hz Operating Temperature .

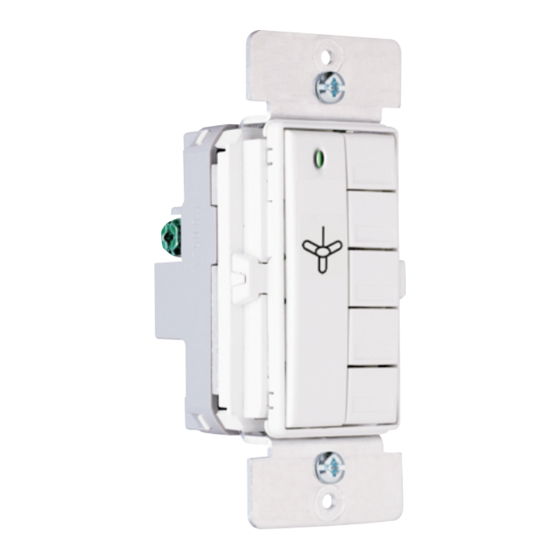

- Page 2 UNIT DESCRIPTION The LightSense™ PSHCF fan control conveniently offers silent, four-speed control of one or two ceiling fans, with a combined current rating up to 1.5 amps. CAUTION THIS UNIT IS EXCLUSIVELY DESIGNED FOR USE WITH CEILING FANS. Do not use to control lighting, receptacles or transformer-operated devices.
- Page 3 TURN THE POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING THE DIMMER. INSTALLATION For ease of installation, Pass & Seymour/Legrand recommends use of a deep wall box. 1. Disconnect power to circuit by turning circuit breaker OFF before installation. 2. Remove existing wall plate and switch.
- Page 4 Wiring INSTALL IN COMPLIANCE WITH ALL APPLICABLE CODES & STANDARDS. Failure to follow these instructions may cause personal injury or equipment damage. Load Wires LOAD LINE NEUT Wire Legend Load (red) Ground Neutral (wht) Supply Line (blk) Wires Call 800.223.4185 for Technical Support...
- Page 5 OPERATION Before use, set the fan to run in the appropriate direction and at full speed: 1. Press the top speed button on the LightSense™ fan control, and wait to allow the fan motor to run up to full speed. 2.
- Page 6 Power Fail Memory After a power failure, all LightSense™ devices automatically return to the state they were in immediately prior to loss of power. CLEANING Clean using a cloth dampened only with water and a little mild detergent. Use of solvents or hydrocarbon-based cleaners may cause permanent damage.
