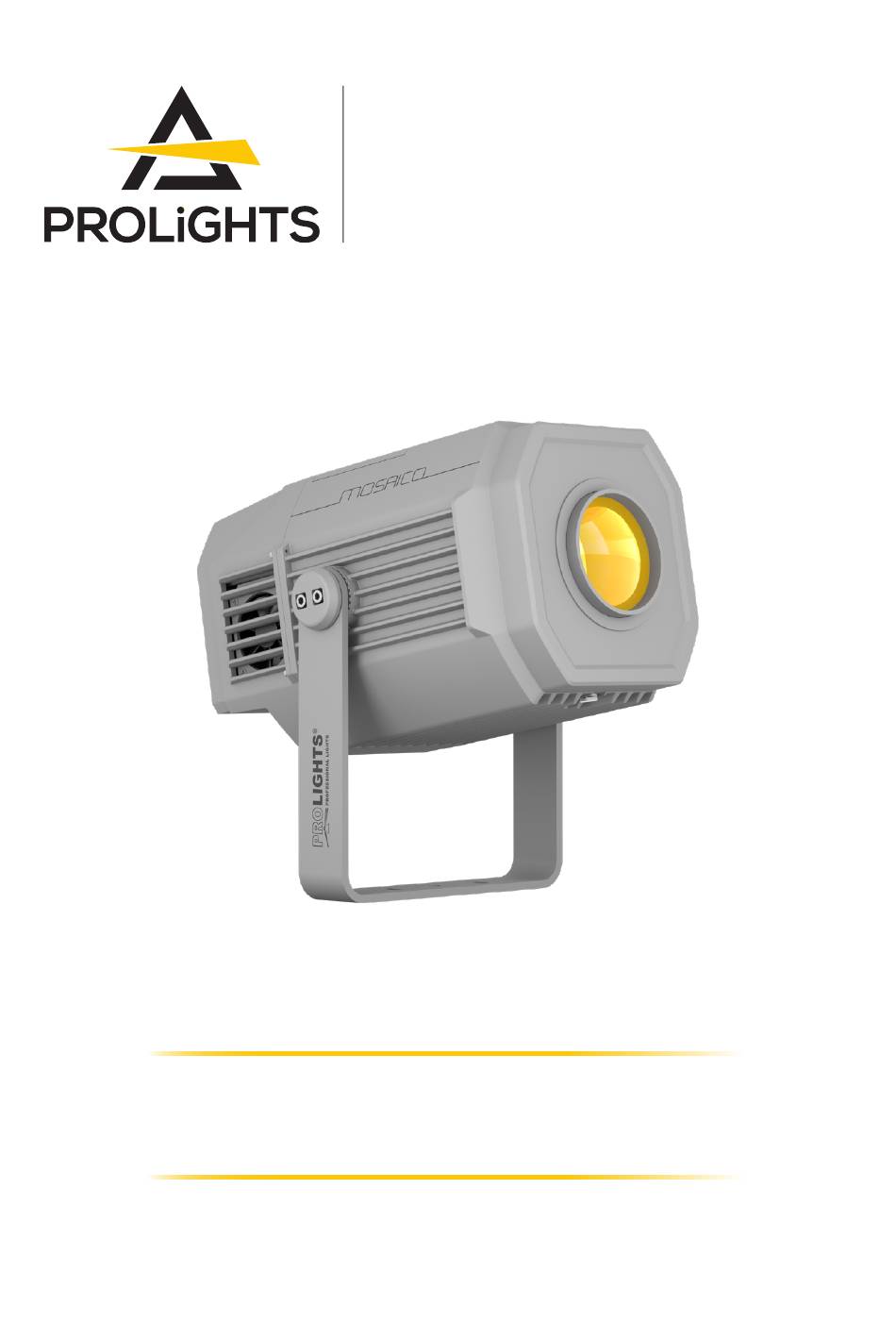

Mosaico
250W IP66 zoomable LED image projector
with animation wheel
USER MANUAL
English version
Rev.08 - 04/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mosaico and is the answer not in the manual?

Questions and answers

Related Manuals for ProLights Mosaico

Summary of Contents for ProLights Mosaico

  • Page 1 Mosaico 250W IP66 zoomable LED image projector with animation wheel USER MANUAL English version Rev.08 - 04/24...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.

  • Page 3: Table Of Contents

    FIXTURE SETTINGS ......................18 AUTO TEST ........................19 MANUAL TEST ....................... 19 ADVANCED ........................19 INFORMATION ON THE DEVICE .................. 20 OPERATIONS IN STANDALONE MODE ................ 20 Play Show ..................20 Play Chase ..................20 Play Scenes ..................20 PROLIGHTS - Mosaico...
  • Page 4 20 - ACCESSORIES INSTALLATION BRACKET FOR WALL MOUNTING AND SUSPENSION ON POLES (CODE MOSUNIBRACK) ......39 21 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT..................... 40 REPLACING THE FUSE ............................40 VISUAL CHECK OF PRODUCT HOUSING ......................40 TROUBLESHOOTING ............................41 PROLIGHTS - Mosaico...

  • Page 5: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 6 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 7 4. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - Mosaico...

  • Page 8: Packaging

    1 - PACKAGING PACKAGE CONTENT • 1x MOSAICO; • 1x SCHUKO - IP connection adapter; • 1x 5p XLR - IP connection male adapter; • 1x 5p XLR - IP connection female adapter; • User Manual. OPTIONAL ACCESSORIES Check the updated accessories list, description and informations of the product at the following link: https://www.prolights.it/product/MOSAICO#accessories...

  • Page 9: Technical Drawing

    2 - TECHNICAL DRAWING Weight: 19.3 kg - 42.54 lbs Fig. 01 PROLIGHTS - Mosaico...

  • Page 10: Installation

    Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. RSR1235A/B C6002 clamp Steel security cable Ø13 mm 60 mm Ø0.5 in 2.4 in Fig. 02 PROLIGHTS - Mosaico...

  • Page 11: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Mosaico...

  • Page 12: Product Overview

    5. DMX OUT (3-p XLR): 1 = GND, 2 = sign-, 3 = sign+; 6. POWER IN: for connection to the Mains 100-240V~/50-60Hz; 7. POWER OUT: for connection to the Mains 100-240V~/50-60Hz; 8. GORE VALVE. Fig. 03 PROLIGHTS - Mosaico...

  • Page 13: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 05 - Example 6 DMX channels configuration PROLIGHTS - Mosaico...

  • Page 14: Connection Of The Control Signal: Dmx Line Adapters

    2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - Mosaico...

  • Page 15: Operation As A Wireless Transmitter

    • The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Mosaico...

  • Page 16: Control Panel

    • UP: browse upwards through the menu list and increases the numeric value displayed; • DOWN: browse downwards through the menu list and decreases the numeric value displayed; • ENTER: used to confirm the current menu or confirm the current function value or option within a menu. PROLIGHTS - Mosaico...

  • Page 17: Menu Structure

    AUTO TEST To test all the functions. MANUAL TEST SHUTTER 000-255 To test the selected functions. DIMMER 000-255 000-255 COLOR1 000-255 COLOR2 000-255 GOBO 000-255 RGOBO 000-255 PRISMROT 000-255 FROST 000-255 FOCUS 000-255 ZOOM 000-255 ANIMATION 000-255 RANIMATION PROLIGHTS - Mosaico...
  • Page 18 TEMPERATURE 58 °C To see the temperature of the source. FANS SPEED To see the fan speed. SOFTWARE "DISP: V1.0 To see the software version. VERSION CTR1:V1.0 CTR2:V1.0" 15D0****** To see the RDM UID STAND ALONE PLAY PROLIGHTS - Mosaico...
  • Page 19 CHASE 2 TIME CHASE 3 TIME CHASE 4 TIME CHASE 5 TIME CHASE 6 TIME CHASE 7 TIME CHASE 8 TIME" MOVE WITH "Scenes 01 BLACKOUT Scenes 02 Scenes 03 ..Scenes 30 Scenes 31 Scenes 32" PROLIGHTS - Mosaico...

  • Page 20: Wireless

    • Use the buttons UP/DOWN to select Set Up. Press the button ENTER to confirm. • Use the buttons UP/DOWN to select Fixture. Press the button ENTER to confirm. • Press the buttons UP/DOWN to select the desired option and press the button ENTER to confirm: PROLIGHTS - Mosaico...

  • Page 21: Auto Test

    Factory Reload - To reset the unit. Select Yes or No and select ENTER to confirm. • Press the ENTER button to confirm the selection and wait for the selected function to be restored. • Press the MENU button repeatedly to exit the menu and to save the changes made. PROLIGHTS - Mosaico...

  • Page 22: Information On The Device

    • Press the UP/DOWN button to scroll through the menu, then select Scene 1 ~ Scene 32 and press ENTER to confirm. • Press the MENU button repeatedly to exit the menu and save changes. PROLIGHTS - Mosaico...
  • Page 23 • Press the UP/DOWN button to scroll through the menu, select Scenes Record and press the ENTER button to enter the next menu. • Press the UP/DOWN button to select the scene to be inserted in the automatic program, then press PROLIGHTS - Mosaico...
  • Page 24 When the projector is in Stand Alone it turns out to be MASTER, as well as if you enter or connect the projector to the DMX. When you exit the menu or disconnect the DMX connection, the projector restarts the show execution from the last scene interrupted by these two actions. PROLIGHTS - Mosaico...
  • Page 25 Fixture will be powered on without reset on pan/tilt then power on pan/tilt movements movements. DOWN home screen after Calibration process Disable Lamp Fan Error for Lamp calibration. power on ENTER + UP Bootloader Force firmware upgrade. then power on PROLIGHTS - Mosaico...
  • Page 26 SUPPORTED_PARAMETERS 0x0050 PARAMETER_DESCRIPTION 0x0051 PRODUCT_DETAIL_ID_LIST 0x0070 Product DEVICE_MODEL_DESCRIPTION 0x0080 Information MANUFACTURER_LABEL 0x0081 DEVICE_LABEL 0x0082 FACTORY_DEFAULTS 0x0090 DMX_PERSONALITY 0x00E0 DMX512 Setup DMX_PERSONALITY_DESCRIPTION 0x00E1 DMX_START_ADDRESS 0x00F0 SENSOR_DEFINITION 0x0200 Sensors SENSOR_VALUE 0x0201 Power/Lamp DEVICE_HOURS 0x0400 Settings Display Settings DISPLAY_INVERT 0x0500 PROLIGHTS - Mosaico...
  • Page 27 25: 25° 0: Off PLAY OFF 0x8230 1: Show 1 PLAY SHOW 0x8231 2: Show 2 3: Show 3 1: Chase 1 PLAY CHASE 0x8232 8: Chase 8 1: Scene 1 PLAY SCENE 0x8233 1-32 32: Scene 32 PROLIGHTS - Mosaico...
  • Page 28 Focus Frost Focus Prism Zoom Focus Zoom RPrism Animation wheel Zoom RPrism fine Animation Control Frost Animation Animation rotation Focus Animation rotation Show Control Chase Focus fine Zoom Scene Zoom fine Record scenes Animation Animation rotation Control PROLIGHTS - Mosaico...
  • Page 29 Position 11 044÷047 Position 12 048÷051 Position 13 052÷055 Position 14 056÷059 Position 15 060÷063 Fast to Slow(Forward Spin) 064÷094 Stop (Stop Rotation) 095÷096 Slow to Fast(Revers Spin) 097÷127 Positing from Position 1 to Position 15 128÷255 PROLIGHTS - Mosaico...
  • Page 30 Linear from Narrow to Wide 000 ÷ 255 ZOOM FINE 000 ÷ 255 ANIMATION WHEEL Open/No Function 000÷003 Forward stop to fastest 004÷127 Stop 128÷131 Reverse stop to fastest 132÷255 ANIMATION Effect Off 000÷007 Linear insertion 008÷255 PROLIGHTS - Mosaico...
  • Page 31 Show 1 064÷127 Show 2 128÷191 Show 3 192÷255 CHASE No Function 000÷028 Chase 1 029÷056 Chase 2 057÷085 Chase 3 086÷113 Chase 4 114÷141 Chase 5 142÷170 Chase 6 171÷198 Chase 7 199÷226 Chase 8 227÷255 PROLIGHTS - Mosaico...
  • Page 32 No Function 000÷010 15 is 8-255; the record Edit Scene Mode 011÷128 function is 129-255 and can Record Scene Mode (Hold 129÷255 be saved once every time 3S and Save) for 3 seconds PROLIGHTS - Mosaico...
  • Page 33 13 - GOBOS WHEEL MOSAICO ROTATING GOBOS Fig. 08 PROLIGHTS - Mosaico...
  • Page 34 14 - COLOR WHEEL 1 OPEN SLOT 1: SLOT 7: DARK RED DARK BLUE SLOT 6: SLOT 2: MAGENTA LIGHT ORANGE SLOT 5: SLOT 3: YELLOW SLOT 4: GREEN Fig. 09 PROLIGHTS - Mosaico...
  • Page 35 15 - COLOR WHEEL 2 OPEN SLOT 1: SLOT 7: CYAN SLOT 2: SLOT 6: JADE DARK ORANGE SLOT 5: SLOT 3: LIGHT GREEN SLOT 4: PINK Fig. 09 PROLIGHTS - Mosaico...
  • Page 36 [Ø1.6 in] [Ø0.7 in] Ø22 mm Ø2 mm Ø8 mm [Ø0.9 in] [Ø0.1 in] [Ø0.3 in] OUTER DIAMETER OUTER DIAMETER Ø105 mm [4.1 in] Ø105 mm [4.1 in] METAL GLASS 1.1 mm [0.04 in] IMAGE Fig. 10 PROLIGHTS - Mosaico...
  • Page 37 WARNING! Turn OFF power and allow approximately 20 minutes for the fixture to cool down. Use a 4 mm allen key (hex wrench) to remove the marked six screws of the top cover and remove it. Move the animation wheel to the right. PROLIGHTS - Mosaico...
  • Page 38 Apply a little pressure on the animation wheel (1) and slide it upwards.(2). Insert the animation wheel into the central hole provided on the hardware. Fig. 11 PROLIGHTS - Mosaico...
  • Page 39 For fixing the gobos inside the support, we recommend the use of a silicone glue resistant to high temperatures. Before proceeding with the insertion of the gobo, make sure that the glue spread on the support is perfectly dry. Fig. 12 PROLIGHTS - Mosaico...
  • Page 40 Failure detected during the reset of the frame rotation, if this frame [FRAME ROTATION ERROR] is not located in the default position [MEMORY ERROR] SD card not detected Recharge The battery on the display board, keeping the product [DISPLAY BATTERY ERROR] ON for some hours. PROLIGHTS - Mosaico...
  • Page 41 BRACKET FOR WALL MOUNTING AND SUSPENSION ON POLES (CODE MOSUNIBRACK) NOTE Do not mount the bracket on a support whose surface shows deformations, injuries, crushing, etc. Both the bracket and the unit must be secured with a safety cable. Fig. 13 PROLIGHTS - Mosaico...
  • Page 42 WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.
  • Page 43 • Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 44 Note...
  • Page 45 Note...
  • Page 46 Note...
  • Page 48 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
