Product Description
3.2 Meter Back
1.
Lanyard hole.
2.
Screws (silver) that secure housing (re-
move to access fuses).
3.
Test lead holders.
4.
One of the two screws (black) that se-
cures the battery compartment.
5.
Tilt stand.
6.
Battery compartment.
7.
Screws (silver) that secure housing (lift
tilt stand to access them).
8.
Second screw (black) that secures bat-
tery compartment (lift tilt stand to ac-
cess it).
#NAS100177; r. AD/97993/98002; en-US

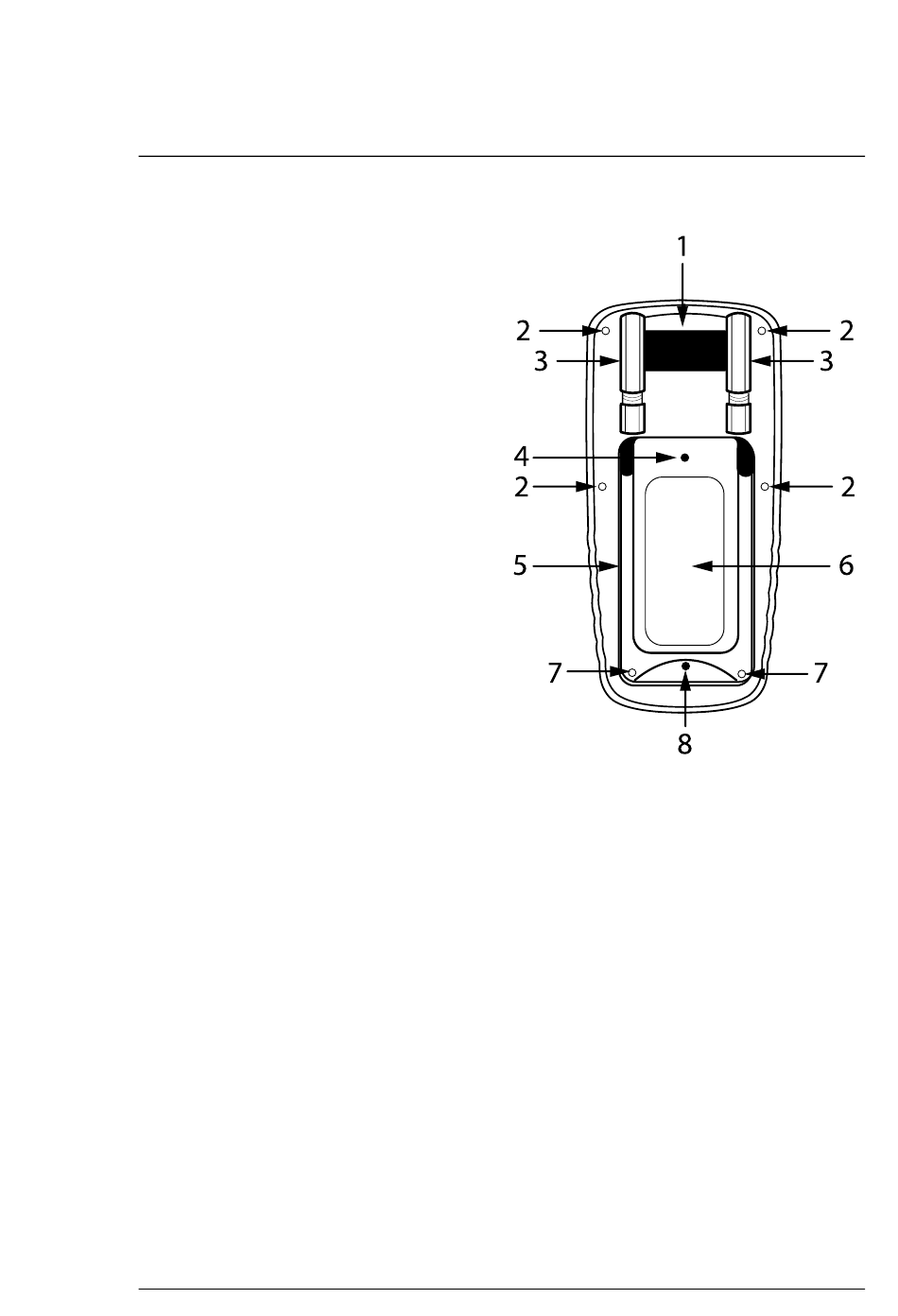

Figure 3.2 Meter Back.
