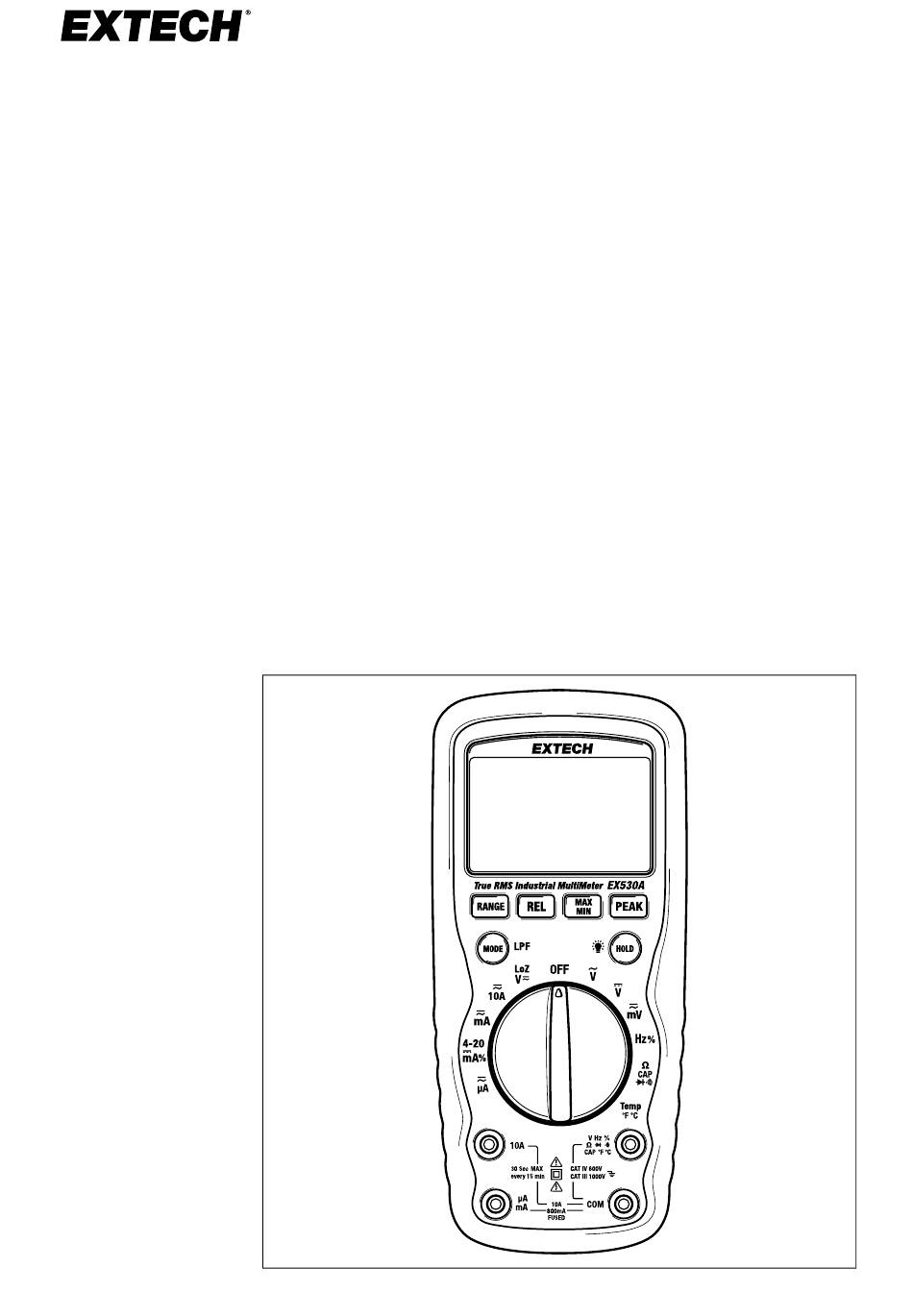

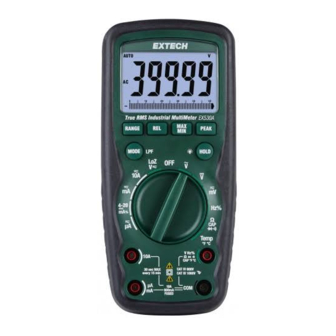

- Page 1 Quick Start True RMS Industrial Multimeter MODEL EX530A...
- Page 2 Quick Start (EN) INTRODUCTION The Extech EX530A measures AC/DC Voltage, AC/DC Current, Re- sistance/Continuity, Capacitance, Frequency/Duty Cycle, Diode, and Temperature. Additional measurement features include a 4 to 20 mA process control mode, low impedance (LoZ) voltage mode, and a low pass filter (LPF) mode. This meter features a water-proof, rugged design intended for industrial use.
-
Page 3: Quick Steps
Function Maximum Input AC/DC Current (A) 10 A (1000 V) fast acting fuse (30 seconds maximum at 15 minute intervals) AC/DC Current (mA, µA) 800 mA (1000 V) fast acting fuse AC/DC Voltage 1000 V DC and AC RMS AC/DC Voltage (LoZ) 500 V DC and AC RMS Frequency, Resistance, Capacitance, Diode, 250 V DC and AC RMS... -
Page 4: Control Buttons
CONTROL BUTTONS Long press LPF to enable/disable the low pass filter (LPF). Long press again to exit. Short press MODE to select an alternate mode for the function in use. Short press to freeze/unfreeze reading. Long press to switch the backlight on/off. Short press to switch to Manual range and to change the range. - Page 5 METER POWER The meter is powered by one 9 V battery. The compartment is lo- cated on the back of the meter (under the tilt stand) secured by the two black Phillips screws. The meter automatically switches off after approximately 15 minutes. FEATURES Automatic and Manual Range In the current, voltage, resistance, and capacitance modes, the me-...
- Page 6 MEASURING VOLTAGE, FREQUENCY, RESISTANCE, DIODE, CAPACITANCE Voltage, frequency, resistance, diode, and capacitance measure- ments are made with the test leads placed ‘across’ the device or circuit under test (in parallel). WARNING Risk of electrocution. High-voltage AC and DC circuits are extremely danger- ous and should be measured with great care.
-
Page 7: Measuring Current
MEASURING CURRENT Current measurements are made with the test leads placed in ser- ies with the circuit under test. WARNING Do not make 10 A current measurements for longer than 30 seconds. 1. Rotate the function switch to the desired current function. Use the MODE button to select AC or DC. -
Page 8: Basic Specifications
BASIC SPECIFICATIONS For complete specifications, please download the user manual. Display Backlit LCD with bar graph Over-range OL display indication Battery power 9 V battery Operating 32 to 122℉ (0 to 50℃) temperature Operating humidity 80% RH max. up to 87℉ (31℃) Dimensions 7.2 x 3.3 x 2.2 in. -
Page 9: Customer Support
CUSTOMER SUPPORT Customer Support Local Telephone List: https://support.flir.com/contact Returns (RMA): https://customer.flir.com/Home WARRANTY Teledyne FLIR warrants this Extech brand instrument to be free of defects in parts and workmanship for three years from date of ship- ment. To view the full warranty text, please visit the support site, link below. - Page 10 #NAS100180; r. AD/96050/96066; en-US...
-
