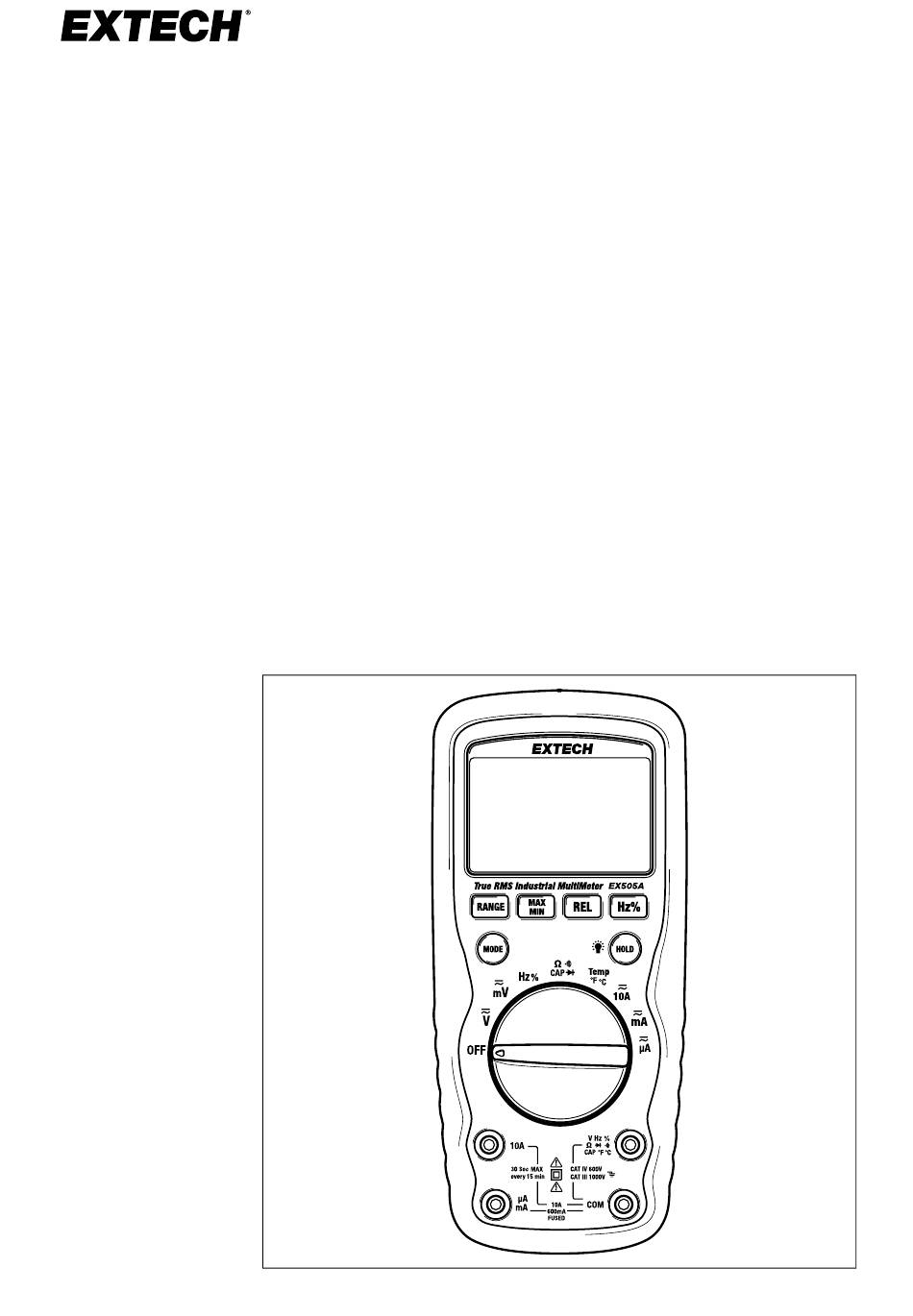

- Page 1 Quick Start True RMS Industrial Multimeter MODEL EX505A...
- Page 2 Quick Start (EN) INTRODUCTION The Extech EX505A measures AC/DC Voltage, AC/DC Current, Re- sistance/Continuity, Capacitance, Frequency/Duty Cycle, Diode, and Temperature. This meter features a water-proof, rugged design intended for industrial use. DOCUMENTATION ADVISORY This Quick Start is intended for setup and reference only, please download and read the User Manual before taking measurements (link below).
-
Page 3: Quick Steps
Input Protection Limits Function Maximum Input AC/DC Current (A) 10 A (1000 V) fast acting fuse (30 seconds maximum at 15 minute intervals) AC/DC Current (mA, µA) 600 mA (1000 V) fast acting fuse AC/DC Voltage 1000 V DC and AC RMS Frequency, Resistance, Capacitance, Diode, 250 V DC and AC RMS Temperature... -
Page 4: Control Buttons
CONTROL BUTTONS Short press MODE to select an alternate mode for the function in use. Short press to freeze/unfreeze reading. Long press to switch the backlight on/off. Short press to switch to Manual range and then to change ranges. Long press to return to Auto range. Short press to step through MAX, MIN, and MAX minus MIN readings. - Page 5 two black Phillips screws. The meter automatically switches off after approximately 15 minutes. FEATURES Automatic and Manual Range In the current, voltage, resistance, and capacitance modes, the me- ter automatically selects the optimum range. To use manual range, press the RANGE button, subsequent presses will step through the ranges.
- Page 6 MEASURING VOLTAGE, FREQUENCY, RESISTANCE, DIODE, CAPACITANCE Voltage, frequency, resistance, diode, and capacitance measure- ments are made with the test leads placed ‘across’ the device or circuit under test (in parallel). WARNING Risk of electrocution. High-voltage AC and DC circuits are extremely danger- ous and should be measured with great care.
-
Page 7: Measuring Current
MEASURING CURRENT Current measurements are made with the test leads placed in ser- ies with the circuit under test. WARNING Do not make 10 A current measurements for longer than 30 seconds. 1. Rotate the function switch to the desired current function. Use the MODE button to select AC or DC. -
Page 8: Basic Specifications
BASIC SPECIFICATIONS For complete specifications, please download the user manual. Display Backlit LCD with bar graph Over-range OL display indication Battery power 9 V battery Operating 32 to 122℉ (0 to 50℃) temperature Operating humidity < 70% RH Dimensions 7.2 x 3.3 x 2.2 in. (183 x 83 x 55 mm) Weight 0.8 lbs. -
Page 9: Customer Support
CUSTOMER SUPPORT Customer Support Local Telephone List: https://support.flir.com/contact Returns (RMA): https://customer.flir.com/Home WARRANTY Teledyne FLIR warrants this Extech brand instrument to be free of defects in parts and workmanship for three years from date of ship- ment. To view the full warranty text, please visit the support site, link below. - Page 10 #NAS100188; r. AH/98045/98046; en-US...
-
Page 12: Quick Start
Quick Start last page Website http://www.flir.com Customer support http://support.flir.com Copyright © 2024, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
