Extech EX520-NIST True RMS Heavy Duty Industrial Multimeter

Extech EX520 Heavy Duty Industrial Multimeter

True RMS Industrial Multimeter

Extech EX520

netzerotools.com

User's Guide

Table of Contents

Need help?

Do you have a question about the EX520-NIST and is the answer not in the manual?

Questions and answers

Summary of Contents for Extech Instruments EX520-NIST

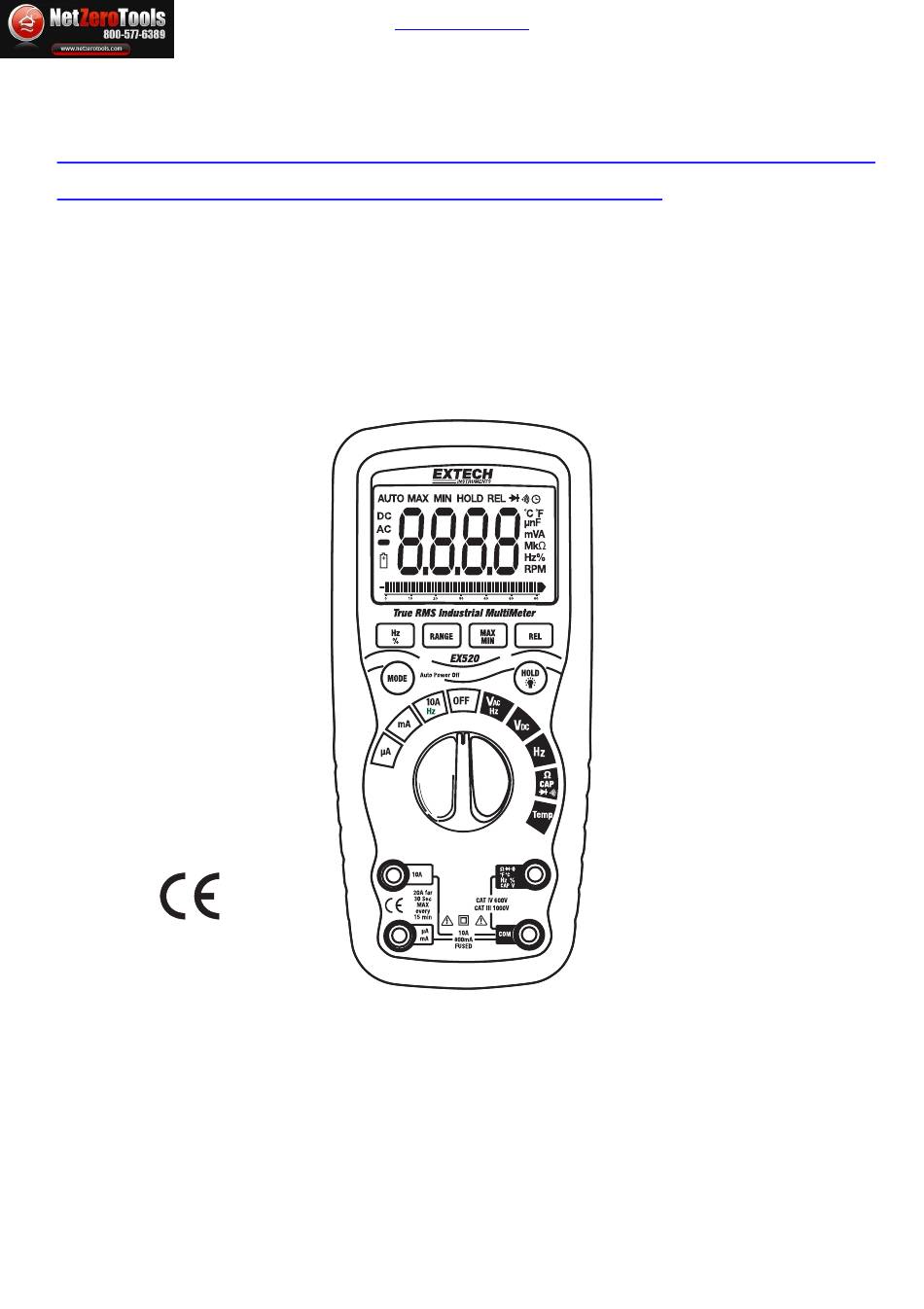

Page 1 User's Guide Extech EX520-NIST True RMS Heavy Duty Industrial Multimeter Extech EX520 Heavy Duty Industrial Multimeter True RMS Industrial Multimeter Extech EX520 netzerotools.com...
Page 2 netzerotools.com Introduction Congratulations on your purchase of the Extech EX520 True RMS Autoranging Multimeter. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency (electrical & electronic), Diode Test, and Continuity plus Thermocouple Temperature. It features a rugged design for heavy duty use. Proper use and care of this meter will provide many years of reliable service. Safety This symbol adjacent to another symbol, terminal or operating device indicates that the operator must refer to an explanation in the Operating Instructions to...
Page 3 netzerotools.com CAUTIONS  Improper use of this meter can cause damage, shock, injury or death. Read and understand this user manual before operating the meter.  Always remove the test leads before replacing the battery or fuses.  Inspect the condition of the test leads and the meter itself for any damage before operating the meter.
Page 4: Safety Instructions
netzerotools.com SAFETY INSTRUCTIONS This meter has been designed for safe use, but must be operated with caution. The rules listed below must be carefully followed for safe operation. NEVER apply voltage or current to the meter that exceeds the specified maximum: Input Protection Limits Function Maximum Input...
Page 5 netzerotools.com Controls and Jacks 1. 6,000 count LCD 2. RANGE button 3. Hz and % button 4. Mode button 5. Function switch 6. mA, µA and 10A input jacks 7. COM input jack 8. Positive input jack 9. HOLD and Backlight button 10.
Page 6: Dc Voltage Measurements
netzerotools.com Operating Instructions WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very dangerous and should be measured with great care. 1. ALWAYS turn the function switch to the OFF position when the meter is not in use. 2.
Page 7: Dc Current Measurements
netzerotools.com DC CURRENT MEASUREMENTS CAUTION: Do not make 20A current measurements for longer than 30 seconds. Exceeding 30 seconds may cause damage to the meter and/or the test leads. 1. Insert black test lead banana plug into the negative COM jack. 2.
Page 8: Resistance Measurements
netzerotools.com RESISTANCE MEASUREMENTS WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any resistance measurements. Remove the batteries and unplug the line cords. 1. Set the function switch to the green ΩCAP position. 2.
Page 9: Temperature Measurements
netzerotools.com TEMPERATURE MEASUREMENTS 1. Set the function switch to the green Temp position. 2. Insert the Temperature Probe into the input jacks, making sure to observe the correct polarity. 3. Press the MODE button to indicate ºC or ºF 4. Touch the Temperature Probe head to the part whose temperature you wish to measure.
Page 10: Autoranging/Manual Range Selection
netzerotools.com AUTORANGING/MANUAL RANGE SELECTION When the meter is first turned on, it automatically goes into Autoranging. This automatically selects the best range for the measurements being made and is generally the best mode for most measurements. For measurement situations requiring that a range be manually selected, perform the following: 1.
Page 11: Maintenance
netzerotools.com Maintenance WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before removing the back cover or the battery or fuse covers. WARNING: To avoid electric shock, do not operate your meter until the battery and fuse covers are in place and fastened securely.
Page 12: Replacing The Fuses
netzerotools.com WARNING: To avoid electric shock, do not operate the meter until the battery cover is in place and fastened securely. NOTE: If your meter does not work properly, check the fuses and batteries to make sure that they are still good and that they are properly inserted.
Page 13: Specifications
netzerotools.com Specifications Function Range Resolution Accuracy DC Voltage 600mV 0.1mV 0.001V (0.09% reading + 2 digits) 0.01V 600V 0.1V 1000V AC Voltage 50 to 60Hz 40Hz to 1KHz 0.001V 0.01V (1.0% reading + 3 dgts) (2.0% reading + 3 dgts) 600V 0.1V 1000V...
Page 14 netzerotools.com Function Range Resolution Accuracy Resistance 600 0.1 6k 0.001k (0.3% reading + 4 digits) 60k 0.01k 600k 0.1k 6M 0.001M (0.3% reading + 20 digits) 40M 0.01M Capacitance 60nF 0.01nF 600nF 0.1nF (3.5% reading + 4 digits) 6F 0.001F 60F 0.01F 600F...
Page 15 netzerotools.com Enclosure Double molded, waterproof (IP67) Shock (Drop Test) 2 meters (6.5 feet) Diode Test Test current of 0.9mA maximum, open circuit voltage 2.8V DC typical Continuity Check Audible signal will sound if the resistance is less than 100 (approx.), test current <0.35mA Temperature Sensor Requires type K thermocouple...
