T1CVK3F4(D): Configuration of CDVI A22K/A22NB/ADH10 Boards
1. Fasten spacers (supplied with A22K/A22NB/ADH10) to CDVI A22K/A22NB/ADH10 board (Fig. 2b, pg. 3).
2. Mount CDVI A22K/A22NB/ADH10 boards into the correct positions (Fig. 2, pg. 3) by postioning spacers over appropriate holes
on the backplane and depressing down on board to secure spacer to the backplane (Fig. 2a, 2b, pg. 3).
Note: CDVI A22K/A22NB/ADH10 boards have one (1) RJ45 jack each.
Please make sure that they are mounted correctly, as shown in Fig. 2 below.
3. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided).

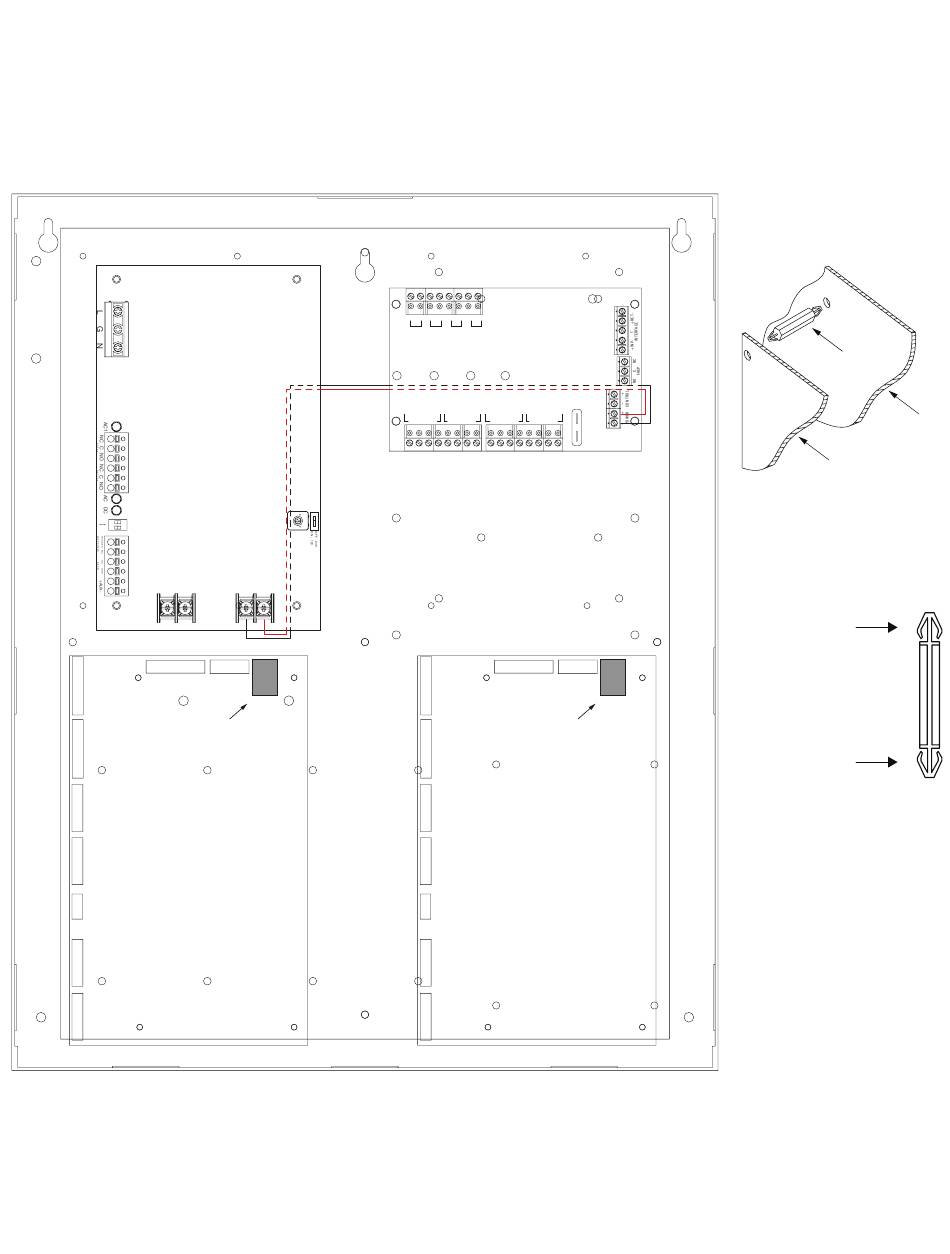

Fig. 2
Altronix eFlow6NB
- BAT +
RJ45 Jack
CDVI - A22K/A22NB/ADH10
Trove CDVI Kits Installation Guide
IN GND
1
LED1
NC C NO COM
OUTPUT 1
ON
- DC +
TRIGGER
INPUT
TRG
IN GND IN GND IN GND
2 3 4
Altronix ACM4(CB)
LED2 LED3 LED4
MAIN
NC C NO COM NC C NO COM NC C NO COM
OUTPUT 2 OUTPUT 3 OUTPUT 4
RJ45 Jack
CDVI - A22K/A22NB/ADH10
Fig. 2a
Spacer
Backplane
CDVI - A22K/A22NB/ADH10
Access Controller
Fig. 2b
Plastic Spacer
pre-mounted into
CDVI Atrium modules
Insert into
TC1/TCV2/TCV3 backplane
