Long-life two-circuit limit switch

Advertisement

Quick Links

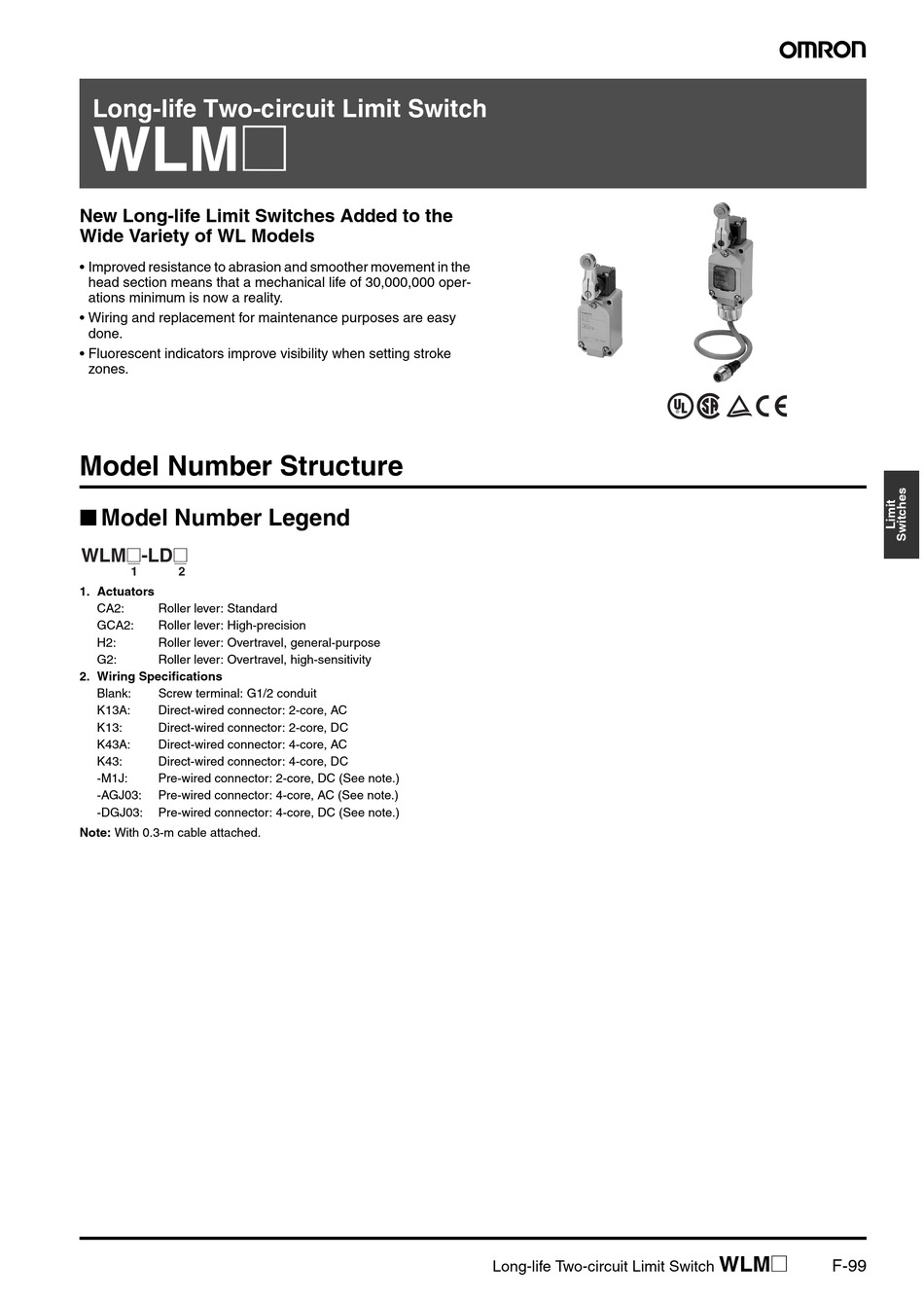

Long-life Two-circuit Limit Switch
WLM@
New Long-life Limit Switches Added to the
Wide Variety of WL Models
• Improved resistance to abrasion and smoother movement in the
head section means that a mechanical life of 30,000,000 oper-
ations minimum is now a reality.
• Wiring and replacement for maintenance purposes are easy
done.
• Fluorescent indicators improve visibility when setting stroke
zones.
Model Number Structure
■ Model Number Legend
WLM@-LD@
1
2
1. Actuators
CA2:
Roller lever: Standard
GCA2:
Roller lever: High-precision
H2:
Roller lever: Overtravel, general-purpose
G2:
Roller lever: Overtravel, high-sensitivity
2. Wiring Specifications
Blank:
Screw terminal: G1/2 conduit
K13A:
Direct-wired connector: 2-core, AC
K13:
Direct-wired connector: 2-core, DC
K43A:
Direct-wired connector: 4-core, AC
K43:
Direct-wired connector: 4-core, DC
-M1J:
Pre-wired connector: 2-core, DC (See note.)
-AGJ03:
Pre-wired connector: 4-core, AC (See note.)
-DGJ03:
Pre-wired connector: 4-core, DC (See note.)
Note: With 0.3-m cable attached.
Long-life Two-circuit Limit Switch
WLM@
F-99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLM and is the answer not in the manual?

Questions and answers

Summary of Contents for Omron WLM

  • Page 1 WLM@ New Long-life Limit Switches Added to the Wide Variety of WL Models • Improved resistance to abrasion and smoother movement in the head section means that a mechanical life of 30,000,000 oper- ations minimum is now a reality. • Wiring and replacement for maintenance purposes are easy done.
  • Page 2: Ordering Information

    WLMG2-LD-DGJ03 WLMGCA2-LD-DGJ03 Note: 1. The default setting is light-ON when not operating (NO connection). To switch to light-ON when operating, simply rotate the lamp holder by 180 . Contact your OMRON representative for details on the 2-core models. 2. 0.3-m cable attached.
  • Page 3: Specifications

    Note: 1. The figures in parentheses for dielectric strength, are those for overtravel (high-sensitivity) or connector models. 2. The values are calculated at an operating temperature of 5 C to 35 C, and an operating humidity of 40% to 70%. Contact your OMRON sales representative for more detailed information on other operating environments.
  • Page 4 2-core 2-core 4-core 4-core Note: Light-ON when not operating means that the lamp remains lit when the actuator is free, and goes out when the Limit Switch contacts (NO) close when the actuator rotates or is pushed down. WLM@ F-102...
  • Page 5: Engineering Data

    Indicator Lamp and Load Operation Switching current (mA) When the indicator lamp is set to light-ON when operating, connect the load on the NC side, and set so that the load turns ON when the ■ Lamp-equipped Models actuator is free.
  • Page 6: Internal Circuits

    In addition to level screws which use G 1 / 2 tube, direct- wired and pre-wired connectors have been added. Note: By changing the direction of the operational plunger, any one of the three operational directions (both sides, left, or right) can be selected. (Only applicable to the WLMGCA2-@.)
  • Page 7 Four, M6 (25) Depth: 15 min. XS2H-D421 6 dia. 21.6 (15.1) 30.2 29.2 (4.9) 42 max. 53.2 Note: Stainless steel roller Note: Unless otherwise indicated, a tolerance of 0.4 mm applies to all dimensions. WLM@ F-105 Long-life Two-circuit Limit Switch...
  • Page 8: Installation

    Loosen the screws Head Head WLMG2@, WLMGCA2@ By removing the screws in the four cor- ners of the Head, the Head can be set Loosen the in any of the four directions. Be sure to screws change the plunger for internal opera- tions at the same time.
  • Page 9: Installing The Switch

    ■ Correct Use Tightening Torque If screws are too loose they can lead to an early malfunction of the When wiring terminal screws, use M4 round crimp terminals and Switch, so ensure that all screws are tightened using the correct tighten screws to the recommended torque.
  • Page 10: Terminal Plate

    Note: Ground terminals are not installed on the standard models. ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. In the interest of product improvement, specifications are subject to change without notice.
