Omron A22LK Series Manual

Guard Lock Safety Key Selector Switch
A22LK
The guard lock prevents accidental
mode changes.
• Selector Switch for secure equipment activation during
maintenance
• The guard lock of the Operation Unit prevents incorrect
operation.
• The key has the same shape as the following keys.
• The key of the A22TK Safety Key Selector Switch
• The trapped key of the D4JL Guard Lock Safety-door Switch
• The lockout key of the D4SL-NSK10-LK Slide Key Unit
Be sure to read the "Safety Precautions" on page 8.
Features

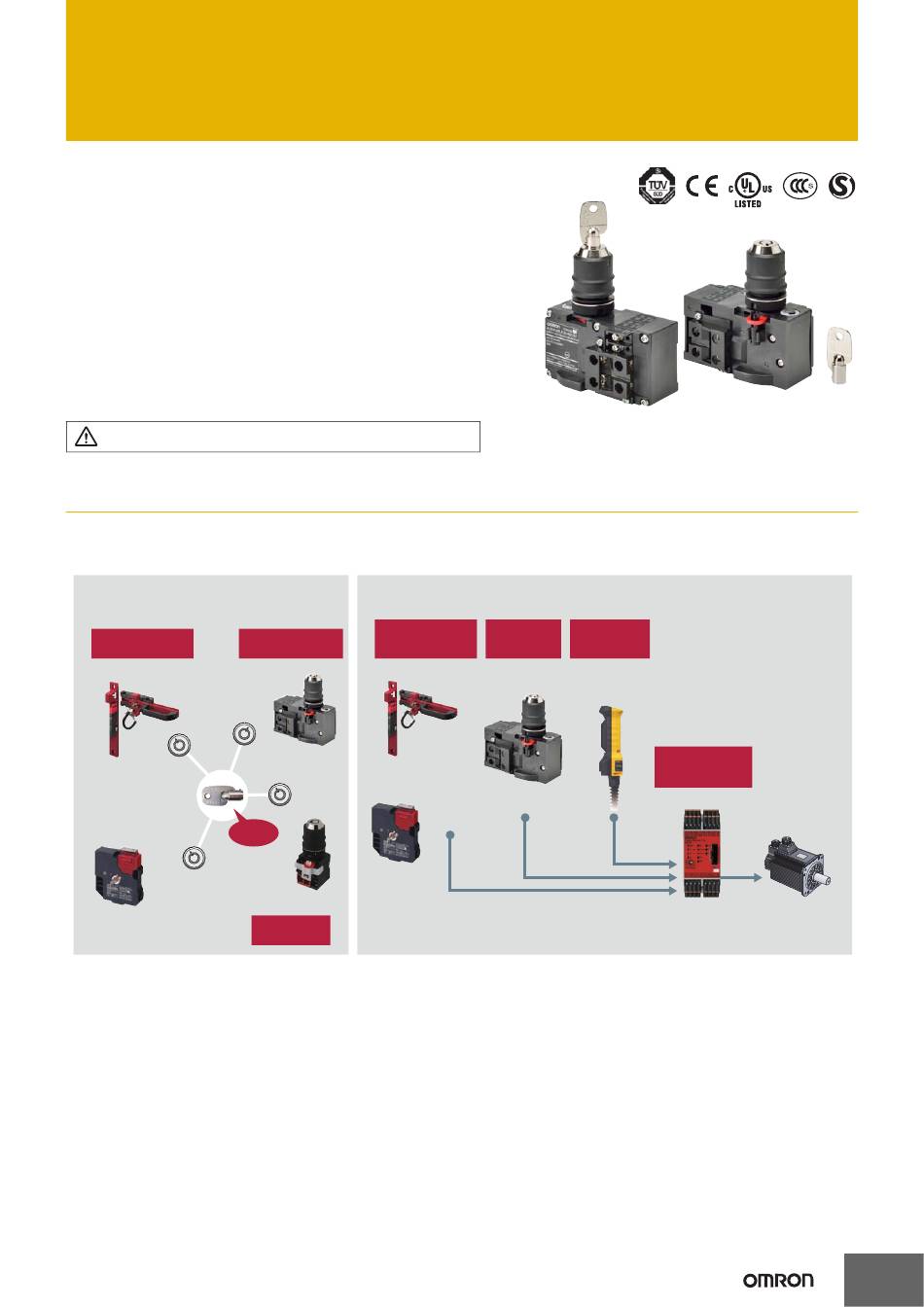

Because the A22LK Guard Lock Safety Key Selector Switch uses the same key as the Guard Lock Safety-door Switch, the operator is prevented
from forgetting to remove the key. The result is a safer working environment when performing maintenance.
Common Key for Door Switch and Selector Switch
Guard Lock
Safety-door Switch
D4SL-NSK10-LK
D4JL-@@@A-@7-01
Common Key
D4JL-@@@A-@8-01-SJ
Broad range of applications include use with door locks, mode switching, and emergency stops when teaching
Guard Lock
Guard Lock Safety Key
Safety-door Switch
Selector Switch
D4SL-NSK10-LK
A22LK
A22LK-@-@-@01-SJ
D4JL-@@@A-@7-01
D4JL-@@@A-@8-01-SJ
A22TK-@-@-@01
Safety Key
Selector Switch
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Guard Lock
Enabling
Safety Key
Grip Switch
Selector Switch
A22LK A4EG
such as Safety Guard
CSM_A22LK_DS_E_6_2
With the Selector Switch, it is possible to
switch between normal operation mode
(use of Door Switch is available) and
maintenance mode (use of Enabling
Grip Switch is available).
Safety Controllers
Switching Unit
G9SX-GS
