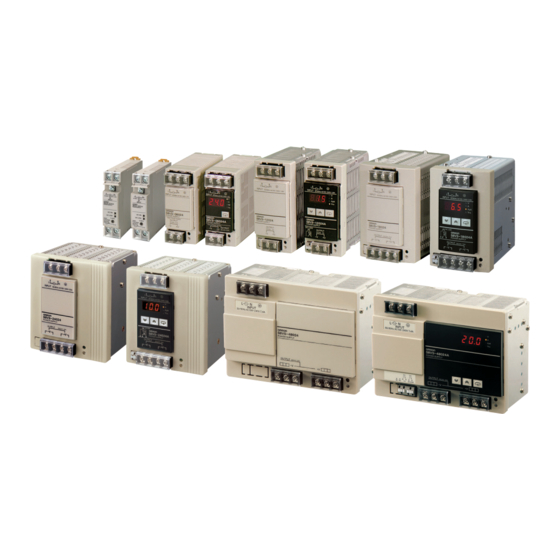

Omron S8VS-01505 Manual

Omron S8VS-01505 Manual

Switch mode power supply
Hide thumbs Also See for S8VS-01505:

Advertisement

New Product

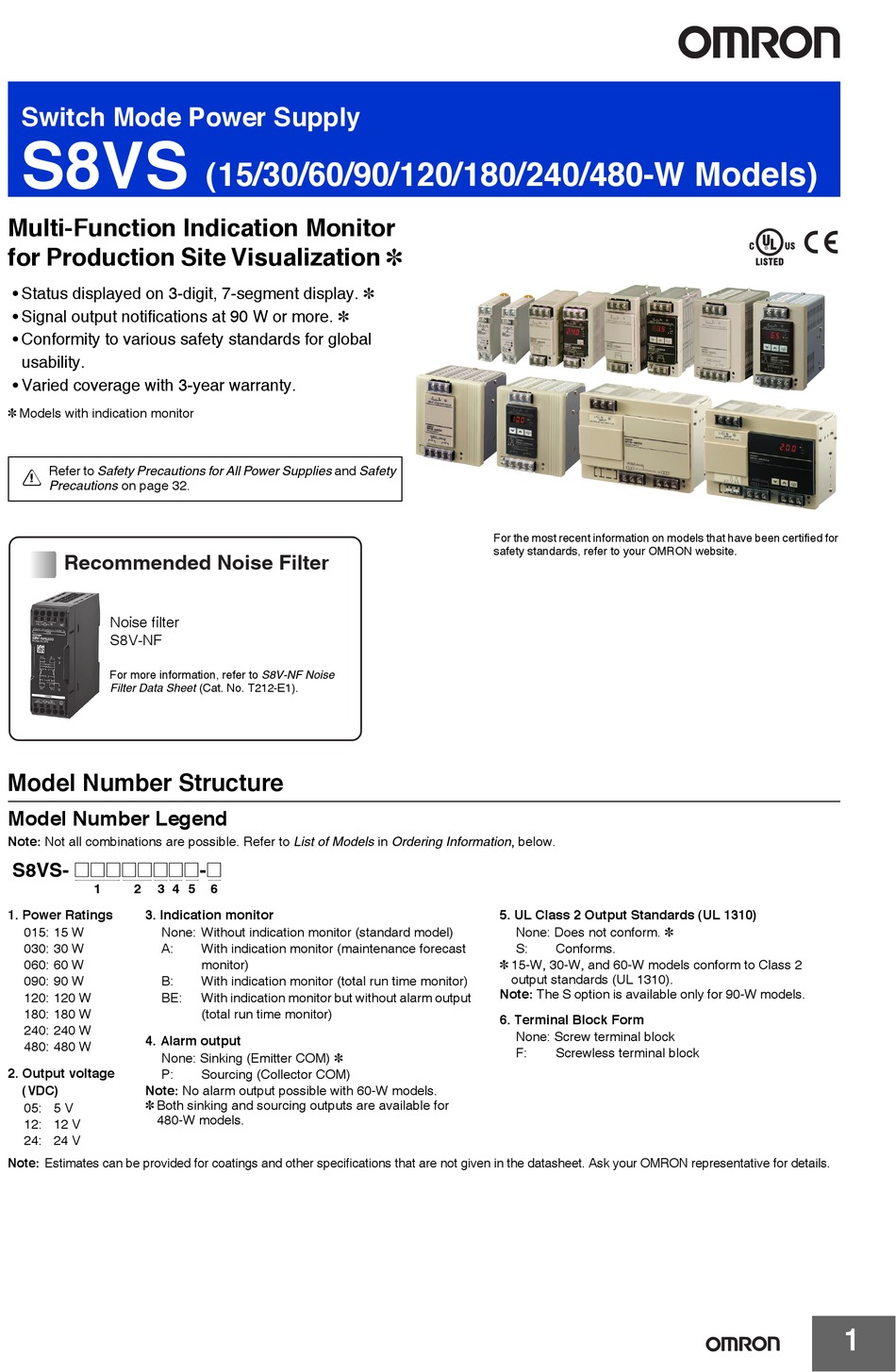

Switch Mode Power Supply
S8VS
Multi-Function Indication Monitor
for Production Site Visualization *
• Status displayed on 3-digit, 7-segment display. *
• Signal output notifications at 90 W or more. *
• Conformity to various safety standards for global
usability.
• Varied coverage with 3-year warranty.
* Models with indication monitor
Refer to Safety Precautions for All Power Supplies and Safety
!
Precautions on page 32.
Recommended Noise Filter
Noise filter
S8V-NF
For more information, refer to S8V-NF Noise
Filter Data Sheet (Cat. No. T212-E1).
Model Number Structure
Model Number Legend
Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.
S8VS- @@@@@@@@-@
1
1. Power Ratings
015: 15 W
030: 30 W
060: 60 W
090: 90 W
120: 120 W
180: 180 W
240: 240 W
480: 480 W
2. Output voltage
05: 5 V
12: 12 V
24: 24 V
Note: Estimates can be provided for coatings and other specifications that are not given in the datasheet. Ask your OMRON representative for details.
Arrow.com.
Downloaded from
(15/30/60/90/120/180/240/480-W Models)
2
3 4 5
6
3. Indication monitor
None: Without indication monitor (standard model)
A:
With indication monitor (maintenance forecast
monitor)
B:
With indication monitor (total run time monitor)
BE:
With indication monitor but without alarm output
(total run time monitor)
4. Alarm output
None: Sinking (Emitter COM) *
P:
Sourcing (Collector COM)
Note: No alarm output possible with 60-W models.
* Both sinking and sourcing outputs are available for
480-W models.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
5. UL Class 2 Output Standards (UL 1310)
None: Does not conform. *
S:
Conforms.
* 15-W, 30-W, and 60-W models conform to Class 2
output standards (UL 1310).
Note: The S option is available only for 90-W models.
6. Terminal Block Form
None: Screw terminal block
F:
Screwless terminal block
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S8VS-01505 and is the answer not in the manual?

Questions and answers

Summary of Contents for Omron S8VS-01505

  • Page 1 * Both sinking and sourcing outputs are available for 12: 12 V 480-W models. 24: 24 V Note: Estimates can be provided for coatings and other specifications that are not given in the datasheet. Ask your OMRON representative for details. Arrow.com. Downloaded from...
  • Page 2: Ordering Information

    S8VS Ordering Information List of Models Note: For details on normal stock models, contact your nearest OMRON representative. Models without Indication Monitor (Standard Models) UL Class 2 Model number Model number Power ratings Input voltage Output voltage Output current Output standards...
  • Page 3: Specifications

    S8VS Specifications Ratings/Characteristics Power ratings 15 W 30 W Item Output voltage 12 V 24 V 12 V 24 V With 100-VAC input 74% typical 79% typical 83% typical 74% typical 81% typical 85% typical Efficiency With 200-VAC input 73% typical 78% typical 80% typical 74% typical...
  • Page 4 S8VS Power ratings 60 W Item Type Standard Maintenance forecast monitor Total run time monitor With 100-VAC input 84% typical 83% typical Efficiency With 200-VAC input 83% typical 85% typical Voltage *1 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11) Frequency *1 50/60 Hz (47 to 450 Hz) With 100-VAC input 1.7 A max., 1.3 A typical...
  • Page 5 S8VS Power ratings 90 W Item Type Standard Maintenance forecast monitor Total run time monitor With 100-VAC input 83% typical 83% typical Efficiency With 200-VAC input 84% typical 85% typical Voltage *1 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11) Frequency *1 50/60 Hz (47 to 450 Hz) With 100-VAC input 2.3 A max., 1.9 A typical...
  • Page 6 S8VS Power ratings 120 W 180 W Maintenance Total run time Maintenance Total run time Item Type Standard Standard forecast monitor monitor forecast monitor monitor With 100-VAC input 84% typical 83% typical 85% typical 85% typical Efficiency With 200-VAC input 87% typical 85% typical 88% typical...
  • Page 7 S8VS Power ratings 240 W 480 W Maintenance Total run time Maintenance Total run time Item Type Standard Standard forecast monitor monitor forecast monitor monitor With 100-VAC input 85% typical 89% typical Efficiency With 200-VAC input 88% typical 93% typical Voltage *1 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11) 100 to 240 VAC (allowable range: 85 to 264 VAC)
  • Page 8 S8VS Connections Block Diagrams S8VS-015@@ (15 W) Undervoltage Fuse: 3.15 A indicator AC (L) INPUT DC output Noise filter −V AC (N) Rectifier/ Inrush Smoothing Rectifier current smoothing circuit protection circuit Drive control circuit Voltage detection circuit Overcurrent Overvoltage detection circuit detection circuit Photocoupler S8VS-030@@ (30 W)
  • Page 9 S8VS S8VS-06024A-@ (60 W) S8VS-06024B-@ (60 W) Display circuit Switch Arithmetic operation circuit Fuse Rectifier/smoothing circuit 6.3 A AC (L) INPUT Noise filter DC OUTPUT −V AC (N) Inrush Rectifier/ Rectifier/smoothing circuit Rectifier current smoothing protection circuit circuit Drive control circuit Overcurrent Current detection...
  • Page 10 S8VS S8VS-09024A@-@ (90 W) Sinking type S8VS-09024B@-@ (90 W) (S8VS-09024A-@, S8VS-09024B-@, S8VS-09024AS-@, S8VS-09024BS-@) S8VS-09024BE-@ (90 W) Sourcing type S8VS-09024A@S-@ (90 W) (S8VS-09024AP-@, S8VS-09024BP-@, S8VS-09024APS-@, S8VS-09024BPS-@) S8VS-09024B@S-@ (90 W) S8VS-09024BES-@ (90 W) Type with no alarm output (S8VS-09024BE-@, S8VS-09024BES-@) Display circuit Switch Alarm DC Low...
  • Page 11 S8VS S8VS-12024A@-@ (120 W) Sinking type S8VS-12024B@-@ (120 W) (S8VS-12024A-@, S8VS-12024B-@) Sourcing type S8VS-12024BE-@ (120 W) (S8VS-12024AP-@ S8VS-12024BP-@) Type with no alarm output (S8VS-12024BE-@) Switch Display circuit Alarm DC Low Arithmetic Yrs/kh operation circuit Common Rectifier/smoothing circuit Photocoupler Fuse 5.0 A AC (L) INPUT DC OUTPUT...
  • Page 12 S8VS S8VS-18024A@-@ (180 W) Sinking type (S8VS-18024A-@, S8VS-18024B-@) S8VS-18024B@-@ (180 W) Sourcing type S8VS-18024BE-@ (180 W) (S8VS-18024AP-@, S8VS-18024BP-@) Type with no alarm output (S8VS-18024BE-@) Switch Display circuit Alarm DC Low Arithmetic Yrs/kh operation circuit Common Rectifier/smoothing circuit Photocoupler Fuse 6.3 A AC (L) DC OUTPUT INPUT...
  • Page 13 S8VS S8VS-24024A@-@ (240 W) Sinking type S8VS-24024B@-@ (240 W) (S8VS-24024A-@, S8VS-24024B-@) Sourcing type S8VS-24024BE-@ (240 W) (S8VS-24024AP-@, S8VS-24024BP-@) Type with no alarm output (S8VS-24024BE-@) Switch Display circuit Alarm DC Low Arithmetic Yrs/kh operation circuit Common Rectifier/smoothing circuit Photocoupler Fuse 8.0 A AC (L) INPUT DC OUTPUT...
  • Page 14: Alarm Output Connections

    S8VS S8VS-48024-@ (480 W) S8VS-48024A-@, S8VS-48024B-@ S8VS-48024A-@ (480 W) S8VS-48024B-@ (480 W) Switch Display circuit Alarm DC LOW Arithmetic Yrs/kh operation circuit Common Auxiliary Rectifier/ power smoothing Photocoupler supply circuit circuit Fuse 12A AC(L) INPUT Noise filter DC OUTPUT AC(N) Rectifier Smoothing Harmonic current...
  • Page 15 *1. The fuse is located on the (L) side. For a DC input, connect the positive voltage to the L terminal. *2. This is the protective earth terminal specified in the safety standards. Always ground this terminal. Note: The S8VS-01505 is shown above. Arrow.com.
  • Page 16 S8VS Nomenclature 60-W Models Name Function Input terminals Connect the input lines to these Standard Model Models with Indication Monitor (L), (N) terminals. *1 S8VS-06024 S8VS-06024@ Protective Earth Connect the ground line to this terminal. *2 terminal (PE) DC Output terminals Connect the load lines to these (−V), (+V) terminals.
  • Page 17 S8VS 480-W Models Name Function AC Input terminals Connect the input lines to these Standard Model terminals. *1 (L), (N) S8VS-48024 Protective Earth Connect the ground line to this terminal (PE) terminal. *2 DC Output terminals Connect the load lines to these (−V), (+V) terminals.
  • Page 18: Engineering Data

    S8VS Engineering Data Derating Curve 60, 90, 120, 180, 240, and 480 W 15 W <S8VS-015@@> −20 −10 0 20 30 40 60 70 80 Ambient temperature (°C) −20 −10 70 80 * Using side mounting bracket for right-side mounting (excluding Ambient temperature (°C) 240-W models).
  • Page 19: Overload Protection

    S8VS Mounting Overload Protection 15 and 30 W The load and the power supply are automatically protected from overcurrent damage by this function. Overload protection is activated if the output current rises above 105% (151% with S8VS-48024@) of Face-up mounting with DIN rail Standard mounting with DIN rail the rated current.
  • Page 20: Overvoltage Protection

    S8VS Overvoltage Protection Undervoltage Alarm Function (Indication and Output) (S8VS-@@@24A@@/S8VS-@@@24B@@/ Consider the possibility of an overvoltage and design the system so that the load will not be subjected to an excessive voltage even if the S8VS-@@@24BE@ Only) feedback circuit in the Power Supply fails. If an excessive voltage that When output voltage drop is detected, an alarm ( ) and lowest is approximately 130% of the rated voltage (but approximately 110%...
  • Page 21 S8VS Dimensions Power Supplies with Screw Terminal Blocks Note: All units are in millimeters unless otherwise indicated. S8VS-015@@ (15 W) S8VS-030@@ (30 W) 10.4 (Sliding: 10 max.) Five, M3.5 Square Washer Screw 35.2 ±1 10.2 (Sliding: 10 max.) Rail Stopper 96.4 ±1 22.5...
  • Page 22 S8VS S8VS-24024 (240 W) Seven, M4 Square Washer Screw S8VS-24024A@ (240 W) ±1 117.6 8 max. S8VS-24024B@ (240 W) S8VS-24024BE (240 W) 35.4 ±1 120.2 (Sliding: 15 max.) Rail Stopper Rail Stopper Screw Lessly Terminal (The 2.5 mm pace) Note: The illustration shows the S8VS-24024A model. S8VS-48024 (480 W) Nine, M4 Square Washer Screw S8VS-48024A (480 W)
  • Page 23 S8VS S8VS-18024-F (180 W) S8VS-18024A@-F (180 W) 116.6 8 max. S8VS-18024B@-F (180 W) S8VS-18024BE-F (180 W) 35.4 97.3 ±1 119.3 ±1 (Sliding: 15 max.) Rail Stopper Note: The illustration shows the S8VS-18024-F model. S8VS-24024-F (240 W) ±1 S8VS-24024A@-F (240 W) 117.6 7 max.
  • Page 24: End Plate

    S8VS DIN Rail (Order Separately) Note: All units are in millimeters unless otherwise indicated. Mounting Rail (Material: Aluminum) PFP-100N PFP-50N 7.3 ± 0.15 35 ± 27 ± 0.15 15(5) * 1,000 (500) * * Values in parentheses are for the PFP-50N. Mounting Rail (Material: Aluminum) PFP-100N2 35 ±...
  • Page 25: Mounting Brackets

    S8VS Mounting Brackets Name Model Side-mounting Bracket (for 15- and 30-W models) S82Y-VS30P Side-mounting Bracket (for 60-, 90-, and 120-W models) S82Y-VS10S Side-mounting Bracket (for 180-W models) S82Y-VS15S Side-mounting Bracket (for 240-W models) S82Y-VS20S Front-mounting Bracket (for 60-, 90-, 120-, 180-, and 240-W models) * S82Y-VS10F Note: Brackets cannot be used for 480-W models.
  • Page 26: Mode Change

    S8VS Display and Alarm Output Functions and Operating Procedures S8VS-@@@24A@@ models (with display monitor) can display the output voltage, output current, peak hold current, or maintenance forecast monitor time. S8VS-@@@24B@@/S8VS-@@@24BE@ models (with display monitor) can display the output voltage, output current, peak hold current, or total run time.
  • Page 27: Multiple Alarms

    S8VS Peak Hold Current Reset Multiple Alarms The peak value of the output current (i.e., the peak hold current) can When two or more different alarms occur at the same time be reset on the display. Operation Mode Operation mode Key Press 3 seconds or more.
  • Page 28: Self-Diagnostics Function

    S8VS Self-Diagnostics Function Numbers in the following table indicate the number used in Nomenclature on pages 15 and 17. Setting after (6) Main display Description Output status Restoration method restoration Noise detected in voltage or No change Automatic reset. No change current Maintenance forecast output...
  • Page 29 S8VS Maintenance Forecast (S8VS-@@@24A@@) Indication and Output When the Product is purchased, “ ” will be indicated. As Displays when the maintenance forecast has reached the set value. electrolytic capacitors deteriorate, indication changes to “ ” (Refer to page 30). “ ”...
  • Page 30 S8VS Maintenance Forecast Monitor Function The Power Supply is equipped with electrolytic capacitors. The maintenance forecast monitor function shows an approximate The electrolyte inside the electrolytic capacitor penetrates the sealing period left for maintenance of the Power Supply due to deterioration rubber and evaporates as time passes since it is manufactured, which of electrolytic capacitors.
  • Page 31 S8VS Models with Total Run Time Monitor Time Chart (S8VS-@@@24B@@/S8VS-@@@24BE@) Total run time S8VS-06024B 50 kh The accumulated value of the operating time of the Power Supply is displayed as the total run time. (kh) will be displayed initially after purchase and then the display will advance in 1-kh steps as the operating time accumulates.
  • Page 32: Safety Precautions

    S8VS Safety Precautions !CAUTION Wiring Minor electric shock, fire, or Product failure may occasionally occur. Do not disassemble, modify, or • Connect the ground completely. A protective earthing terminal repair the Product or touch the interior of the stipulated in safety standards is used. Electric shock or malfunction Product.
  • Page 33: Installation Environment

    S8VS Periodic Check for Models with Indication • Use the following material for the wires to be connected to the S8VS to prevent smoking or ignition caused by abnormal loads. Monitor Except 60-W Models It may take from several years to more than 10 years under general Recommended Wire Type operating conditions for the power supply to output the maintenance 15-W and 30-W Models...
  • Page 34: Series Operation

    S8VS Alarm Output for Models with Indication Monitor Series Operation Except 60-W and BE Models (24-V Model) Two power supplies can be connected in series. When using the alarm output, sufficiently consider the maximum ratings, residual voltage, and leakage current. Correct Transistor output: Sinking for S8VS-24A@/@@@24B@ models...
  • Page 35: Parallel Operation

    S8VS Parallel Operation In Case There Is No Output Voltage The Product is not designed for parallel operation. The possible cause for no output voltage may be that the overcurrent or overvoltage protection has operated. The internal protection may Incorrect operate if a large amount of surge voltage such as a lightening surge AC (L) occurs while turning ON the power supply.
  • Page 36 MEMO Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 37: Terms And Conditions Agreement

    Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements.
  • Page 38 The Netherlands Hoffman Estates, IL 60169 U.S.A. Tel: (31)2356-81-300/Fax: (31)2356-81-388 Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 © OMRON Corporation 2002-2016 All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.
