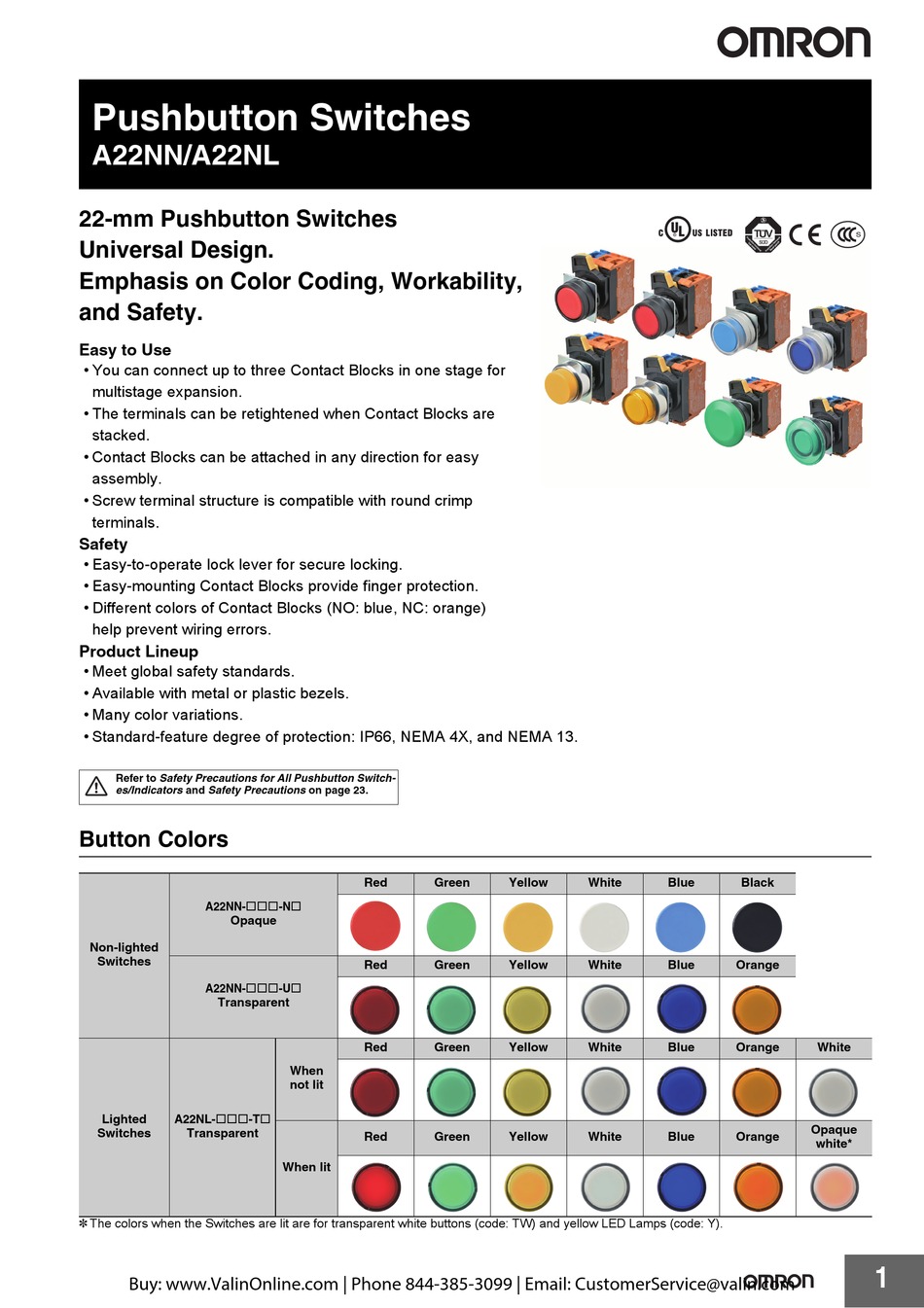

Pushbutton Switches
A22NN/A22NL
22-mm Pushbutton Switches
Universal Design.
Emphasis on Color Coding, Workability,
and Safety.
Easy to Use
• You can connect up to three Contact Blocks in one stage for
multistage expansion.
• The terminals can be retightened when Contact Blocks are
stacked.
• Contact Blocks can be attached in any direction for easy
assembly.
• Screw terminal structure is compatible with round crimp
terminals.
Safety
• Easy-to-operate lock lever for secure locking.
• Easy-mounting Contact Blocks provide finger protection.
• Different colors of Contact Blocks (NO: blue, NC: orange)
help prevent wiring errors.
Product Lineup
• Meet global safety standards.
• Available with metal or plastic bezels.
• Many color variations.
• Standard-feature degree of protection: IP66, NEMA 4X, and NEMA 13.
Refer to Safety Precautions for All Pushbutton Switch-
es/Indicators and Safety Precautions on page 23.
Button Colors
A22NN--N
Opaque
Non-lighted
Switches
A22NN--U
Transparent
Lighted
A22NL--T
Switches
Transparent
* The colors when the Switches are lit are for transparent white buttons (code: TW) and yellow LED Lamps (code: Y).
