Modular Closets MILANO Assembly Instructions Manual page 11

Assembly and Installation Manual

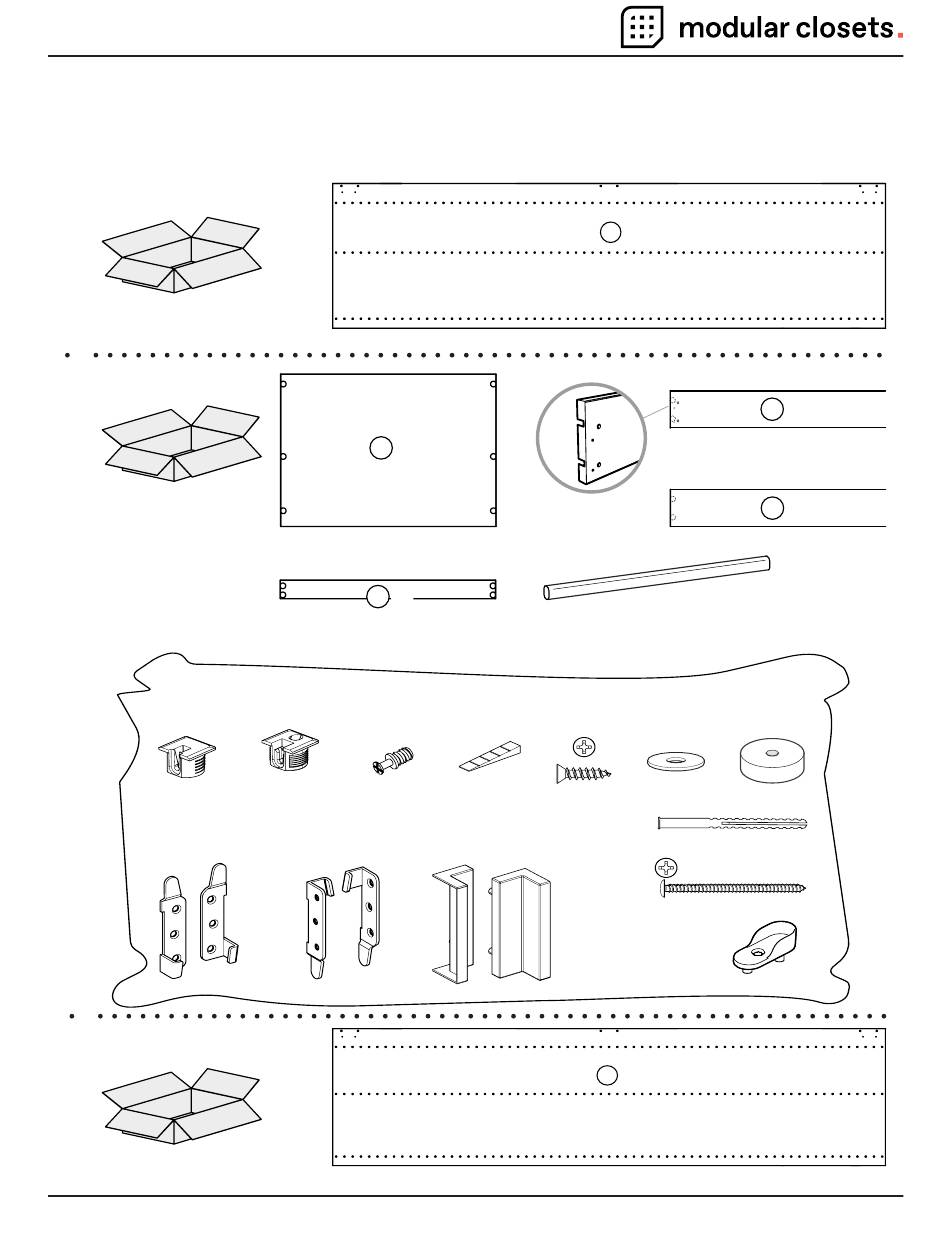

Packaging and Hardware
Box 1
MIL-SPP-84H22D-WHL
Box 2
30"
MIL-SRP30-22D-WHL
or
15"
MIL-SRP15-22D-WHL
(H1) x 14
rafix
+4 spare
(H8) x 1
left-right
wall connecting bracket
Box 3
MIL-SPS-84H22D-WHL
C
x3
E
x1
(H2) x 16 (H3) x 30
metel screw
wedgefix
dowel
+4 spare
(H9) x 1
left-right
side connecting bracket
A
x2
(H4) x 2 (H5) x 12
3/8" flat-head
leveling wedge
screw
(H10) x 1
bracket cover
B
x1
D
F
(H14) x 2
Closet rod
(H6) x 4 (H7) x 4
washer spacer
(H12) x 4
wall anchor
(H13) x 4
2"3/8 screw TC
(H11) x 4
tube
holder
11
