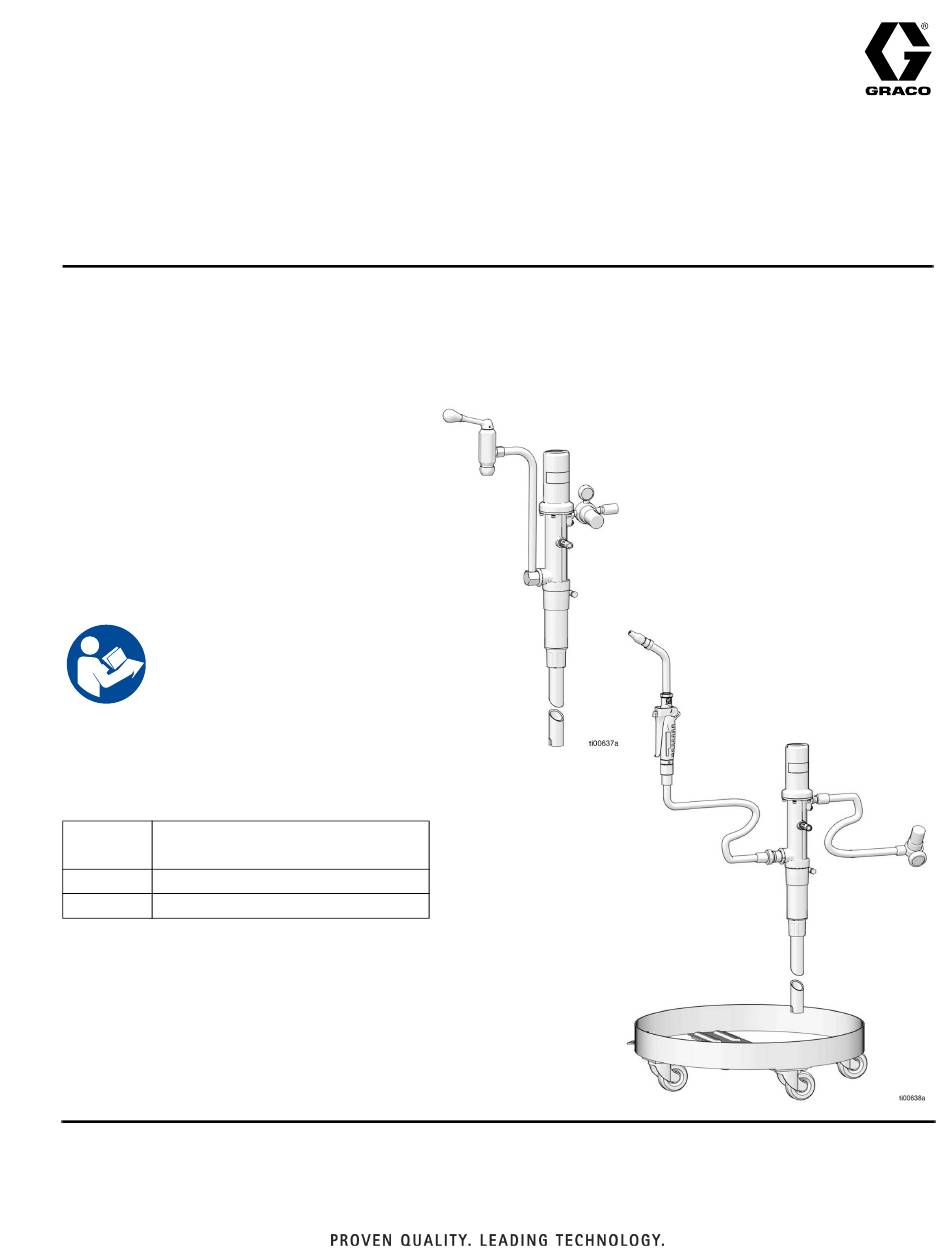

Instructions
1:1 Ratio Fast-Ball
Pump Spigot Kit and
Mobile Dolly Kit
For dispensing non-abrasive oils and lubricants only. For professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Models:
2000726: Fast-Ball 100 Pump Spigot
2000727: Fast-Ball 100 Pump Mobile
Dolly (Oil)
150 psi (1.03 MPa, 10.3 bar) Maximum Air and
Fluid Working Pressure
Important Safety
Instructions
Read all warnings and instructions
in this manual before using the
equipment. Save these
instructions.
Related Manuals
Manual in
Description
English
3A9292
1:1 Ratio Fast-Ball 100 Pumps
312789
SDV15 and XDV20 Dispense Valve
®
100
Pump Spigot
Mobile Dolly (Oil)
3A9348A
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco Fast-Ball 100
Summary of Contents for Graco Fast-Ball 100
-
Page 1: Related Manuals
For dispensing non-abrasive oils and lubricants only. For professional use only. Not approved for use in explosive atmospheres or hazardous (classified) locations. Models: Pump Spigot 2000726: Fast-Ball 100 Pump Spigot 2000727: Fast-Ball 100 Pump Mobile Dolly (Oil) 150 psi (1.03 MPa, 10.3 bar) Maximum Air and... -
Page 2: Table Of Contents
Installation....... . . 5 Fast-Ball 100 Pump Spigot ....5 Fast-Ball 100 Pump Mobile Dolly . -
Page 3: Warnings
Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable. - Page 4 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
-
Page 5: Installation
Installation Installation Fast-Ball 100 Pump Mobile Dolly Reference F . 2 for this section. To reduce the risk of component rupture, which can 1. Connect fitting (205a) to the pump (201) air inlet. result in serious bodily injury, all fluids used in this pump must be chemically compatible with the 2. - Page 6 Installation 3A9348A...
-
Page 7: Operation
Operation Operation Fast-Ball 100 Pump Mobile Dolly Pressure Relief Procedure To start the pump, see 1:1 Ratio Fast-Ball 100 Pumps Follow the Pressure Relief Procedure whenever manual, Related Manuals, page 1, for information on you see this symbol. how to start the pump. -
Page 8: Troubleshooting
Valve or fluid dispenser will not The pump is not operating. Check pump, see 1:1 Ratio dispense Fast-Ball 100 Pumps manual, Related Manuals, page 1. The valve diffuser is clogged. Remove and clean the diffuser. The strainer, if used, is clogged. -
Page 9: Repair
Repair Repair Replace Valve Stem, Spring, or Packings For general pump repair, see 1:1 Ratio Fast-Ball 100 Pumps manual, Related Manuals, page 1. Reference page 11 for this section. For dispense valve (247712), see SVD15 and XDV20 1. Remove the pin (1m) from the handle (1b) using a Dispense Valve manual, Related Manuals, page 1. -
Page 10: Kits And Accessories
Ref. Part Description Qty. 279037 Pump, see 1:1 Ratio Fast-Ball 100 Pumps manual, Related Manuals, page 1 218115 Unmetered Dispense Kit (see 218115 (102), page 10) 109125 Hose, air, 1/4 in. ID, 1/4 npt(mbe), 72 in. length (not shown) 218115 (102) Ref. -
Page 11: Dispensing Valve (1)
Kits and Accessories Dispensing Valve (1) 220110 (Dispensing Valve) Ref. Part Description Qty. 108789 Knob, handle 154773 Handle 154891 Nut, adjusting 154594 Packing, o-ring, nitrile rubber 166779 Nozzle, valve 156312 Seal, valve, nitrile rubber 156311 Screw, valve 104093 O-ring 154781 Ste,. -
Page 12: Mobile Dolly Kit
Model 2000727 (Mobile Dolly) Ref. Part Description Qty. 279037 Pump, see 1:1 Ratio Fast-Ball 100 Pumps manual, Related Manuals, page 1 24H420 Air Regulator Kits 247712 SDV dispenser, see SDV15 and XDV20 Dispense Valve manual, Related Manuals, page 1 129645... -
Page 13: Technical Specifications
Technical Specifications Technical Specifications For pump Technical Specifications, see 1:1 Ratio Fast-Ball 100 Pumps manual, Related Manuals, page 1. For dispense valve (247712) Technical Specifications, see SVD15 and XDV20 Dispense Valve manual, Related Manuals, page 1. California Proposition 65 CALIFORNIA RESIDENTS WARNING: Cancer and reproductive harm –... -
Page 14: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
