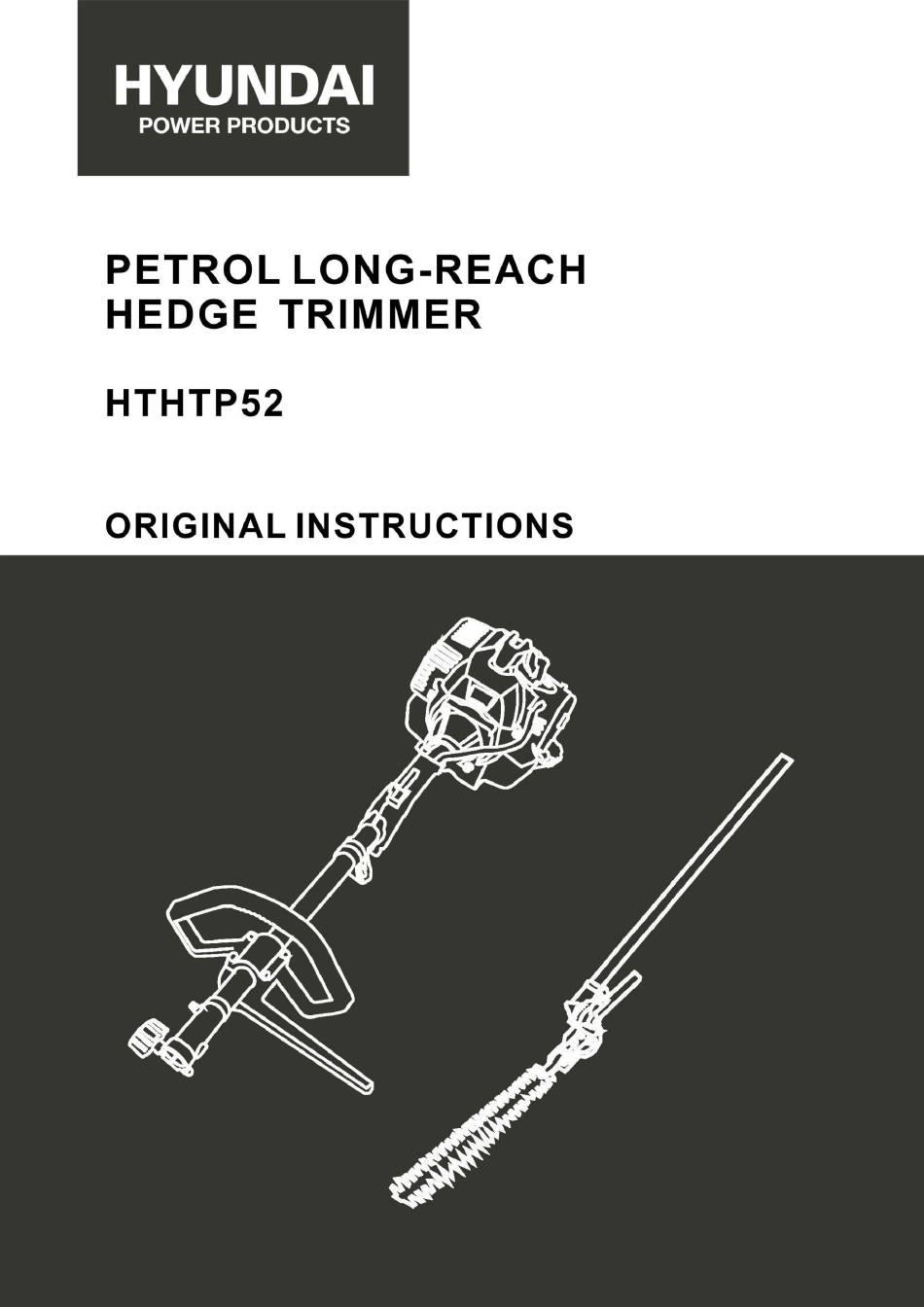

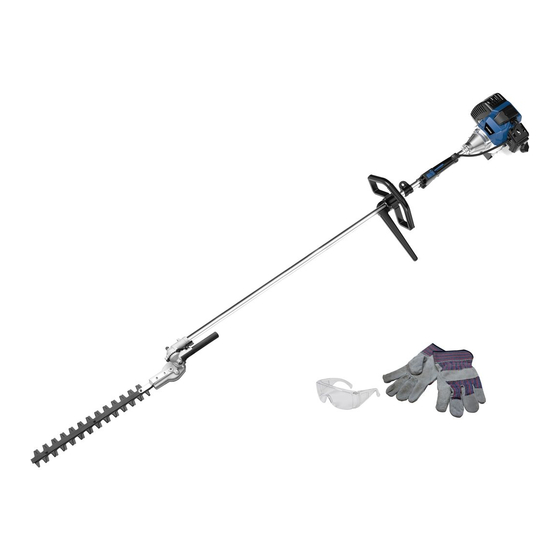

- Page 1 WARNING: Read thoroughly the instruction manual before use...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS INTENDED USE SYMBOLS ON MACHINE KNOW YOUR TOOL ASSEMBLY FILLING THE FUEL TANK OPERATION CARE AND MAINTENANCE TECHNICAL DATA TROUBLESHOOTING EC DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS IMPORTANT! Read carefully before use Keep for future reference. Safe operating practices Training Become familiar with the owner’s manual before attempting to operate the equipment. Preparation THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the hedge trimmer. - Page 4 Operation Use the tool for the intended purpose and follow these provided instructions for use and maintenance Stop the engine before: cleaning or when clearing a blockage, checking, carrying out maintenance or working on the hedge trimmer, adjusting the working position of the cutting device, ...
- Page 5 Work with precaution, be not distracted. Do not use the tool when you are under the influence of alcohol, meds or drugs, and where you are sick. Dry all possible gasoline traces by using a dry rag. In case of accident, immediately stop using the machine.
-
Page 6: Intended Use
The machinery must not be used in a way where experience has shown that danger and/or risks might occur. The ignition and the carburettor must not be set by the user. This procedure shall be done by our service agent. Never use hedge trimmer inside a building. -
Page 7: Symbols On Machine
3. SYMBOLS ON MACHINE Wear an equipment of protection including a helmet, protective glasses, hearing protection. Wear protective gloves. Wear protective and non-skid shoes. Read the instruction manual. Warning – Risk of electric shock. Always beware of the danger from overhead electric-power line, keep a safe distance at least 10m from the power line. -
Page 8: Know Your Tool
4. KNOW YOUR TOOL 1. ON/OFF switch 9. Air filter 2. Throttle lever 10. Choke lever 3. Hanger 11. Starter 4. Mounting tube 12. Fuel tank 5. Handle 13. Adjustment lever 6. Hedge trimmer rod 14. Notching of adjustment 135° from cutting 7. -
Page 9: Assembly
5. ASSEMBLY Handle Unscrew the handle. On the main unit, locate the two holes; Install the rubber tap by aligning the holes (the tap is inside the handle). Install first bottom of the handle, the pin must be inserted in the hole. Install then the last part of the handle and screw it with the four screws. -
Page 10: Filling The Fuel Tank
Installation of the harness Put on the harness. If necessary, adjust the bands of the harness to have the blade parallel to the ground when standing in your normal working position to provide you most effectiveness and comfort on operating the machine. Install the hook on the main unit to attach the harness. -
Page 11: Operation
Filling the fuel tank Unscrew the fuel tank cap and remove it. Fill the tank slowly with the mixture. Do not exceed the maximum capacity (fill to 80% of its capacity preferably). Replace the cap on the fuel tank and tighten it. Wipe any spillage around the unit if necessary Note: To avoid damage and accidents, DO NOT USE OTHER MIXTURES AND OTHER TYPES OF OIL / PETROL... -
Page 12: Care And Maintenance
Hedge trimmer operation Warning! Never place the cutting head on the ground while the machine is running. When using the machine on lawns, hold the scythe at an angle of 30ºC and perform semicircular movements by sweeping the ground from left to right. The best results are obtained when the grass is 15 cm high. - Page 13 2) Adjusting the carburetor Do not adjust carburetor unless necessary. If you have trouble with the carburetor, see your dealer. Improper adjustment may cause engine damage and void warranty. 3) Fuel filter Fuel tank is fitted with a filter. Filter is situated at the free end of fuel pipe. It can be picked with a hook or similar device.
-
Page 14: Technical Data
9. TECHNICAL DATA Engine information Type of engine RY1E44-5, 2-stroke engine Volume of the fuel tank 1200 cm³ Max engine speed Max. 10000 min-¹ Engine idling speed 3200±300 min-¹ Clutch engagement speed Min. 4500 min-¹ Engine displacement 52 cm³ Maximal power 1,4 kW MZ15A/Stable, MR15A2- Carburettor... -
Page 15: Troubleshooting
10. TROUBLESHOOTING Problems Causes Resolutions The starting process is not Follow the instructions use followed of this manual Clean the spark plug or Spark plug dirty or moist replace it by a new one The tool cannot be started Incorrect carburetor Contact your dealer adjustment contact SWAP... -
Page 16: Ec Declaration Of Conformity
11. DECLARATION OF CONFORMITY EC BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declare that the tool: HEDGE TRIMMER： HTHTP52 Serial number: 20210663102-20210663401 Is in conformity with the Directive Machine 2006/42/EC and the national regulation transposing it... -
Page 17: Warranty
12. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Product Failure
13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
