- Page 1 Rock Box Full-on Rock Distortion with a nice post-Boost Contents of this document are ©2023 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
- Page 2 Before you dig in, ensure you download and read the General Build Guide. It contains all the information you need for a successful outcome.
- Page 3 Schematic + BOM Q1-4 BS170 100n 1N5817 470p 9.1v zener 9.1v zener 470K 100n GAIN TONE 100KB 100R 270R LEVEL 100KB empty BOOST 510K* empty SW1-2 3PDT 330R 360R 100n Main BOM is JTM45 version. Tweaks for ‘59 Bassman in blue. *520K in original.

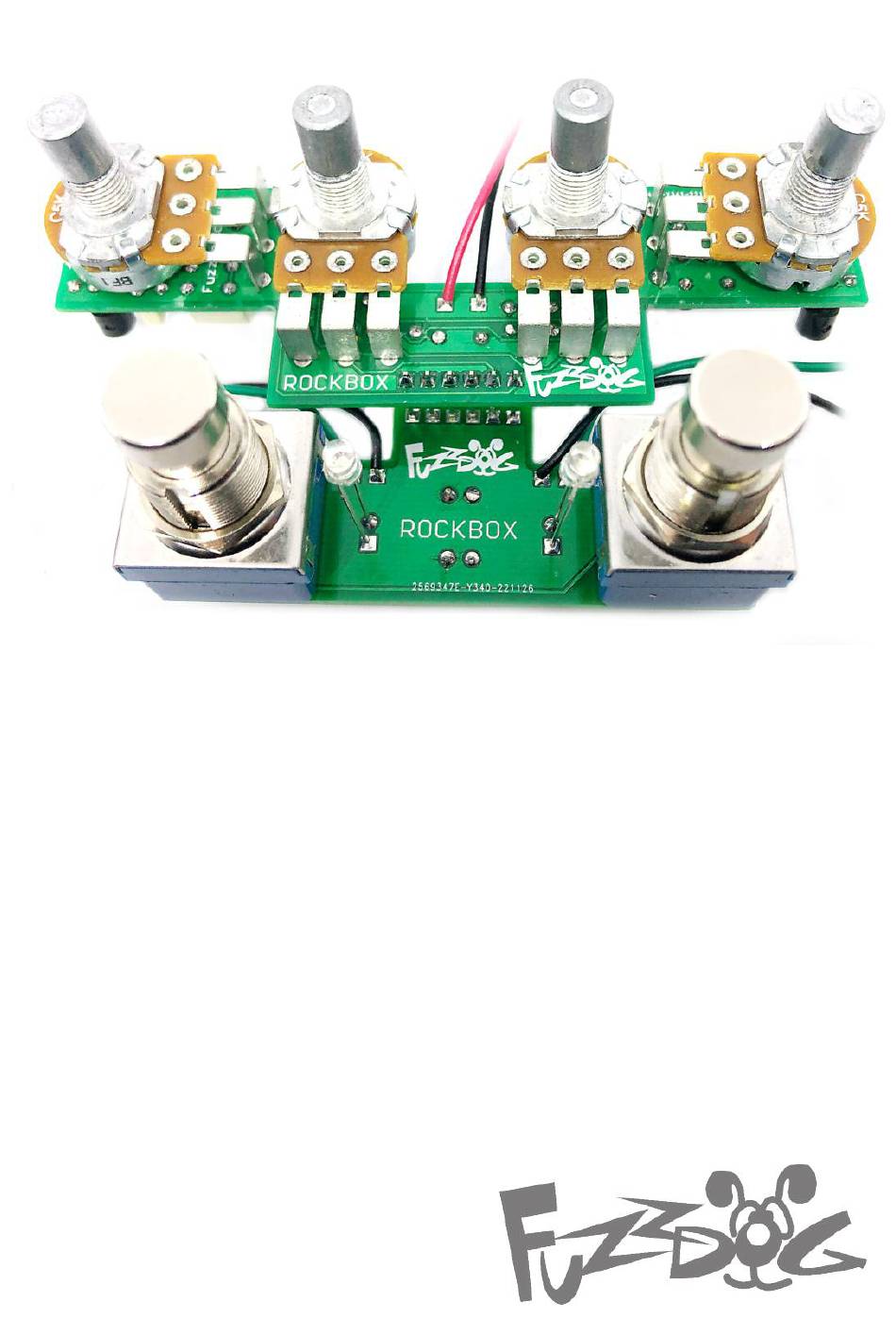

- Page 5 Snap the small metal tag off the pots so There’s not much too it. Mount your footswitches they can be mounted flush in the box. in the enclosure, fully tight then back off a little. Drop your assembled main PCB into place and You should solder all other board-mounted secure it with pot nuts.
-
Page 6: Drilling Template
5 mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
