POWER: Power light
When the tuner is working, lit
green.

REAR PANEL

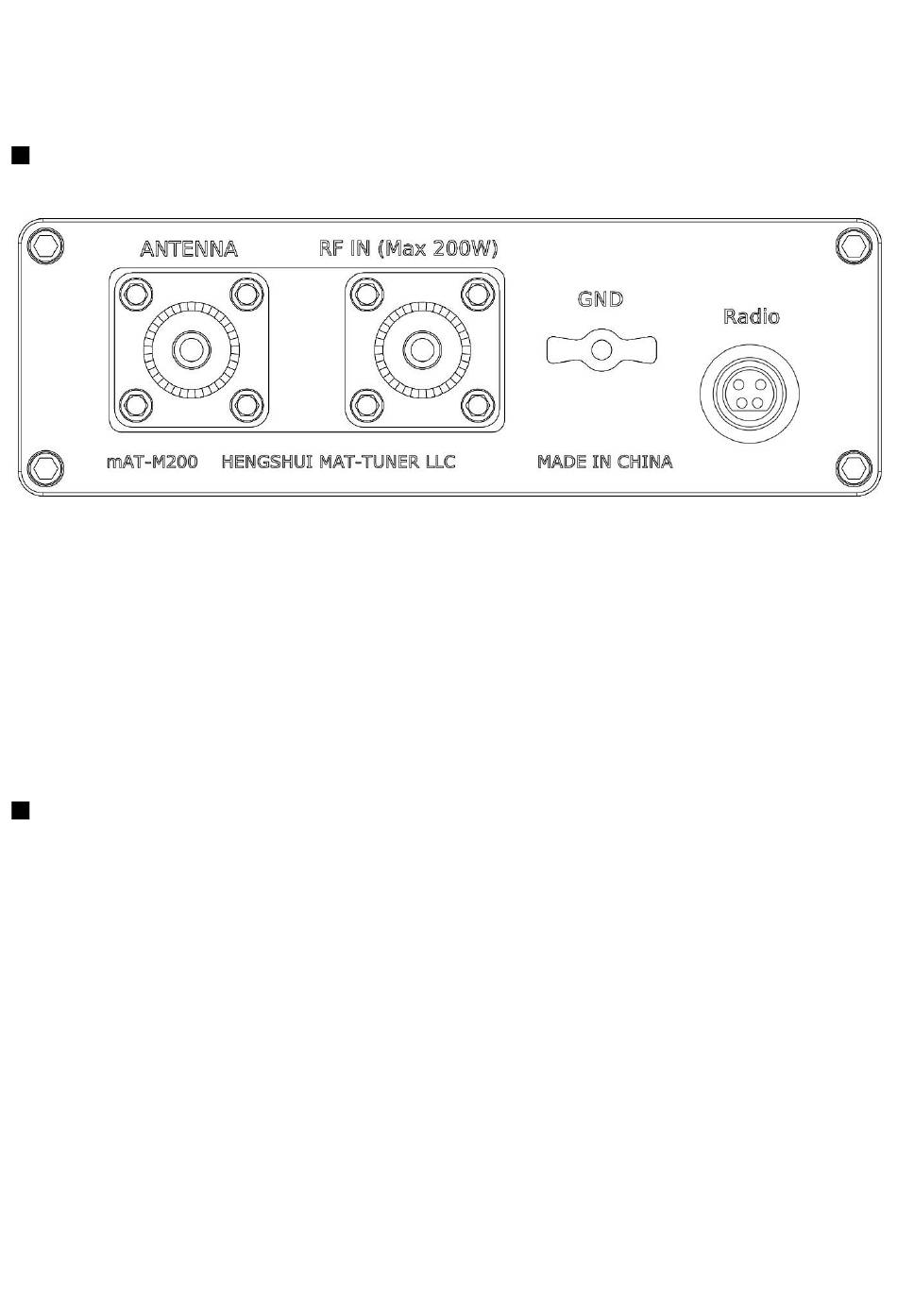

The figure below is the rear panel of the tuner.
GND: Connected to antenna system ground. Correct and good ground wire
can ensure the safe operation of the tuner.
ANTENNA: SO-239 socket, connect antenna with 50 ohm coaxial cable.
RF IN(Max 200W): SO-239 socket, connected to the transmitter's "ANT"
socket, using 50 ohm coaxial cable.
Radio: This socket is connected to the transmitter's "tuner" socket through a
4-pin cable mAT-CI or mAT-CK. The mAT-CI cable comes with the tuner by
default.

INSTALLATION

Which transceivers can use mAT-M200 Modern transmitters of ICOM and
KENWOOD brand with RF power not higher than 200W, in FT8 mode, RF
power is not higher than 100 watts. Of course, it can also be used for
transmitters with RF power of 100W or lower.
Important: before connecting any cables, be sure to turn off the power of
the transmitter.
Installation
1. Connect the "ANT" jack on the transceiver to the "RF IN" jack on tuner,
using a 50 ohm coax cable rated 200 watts or greater.
2. Connect the control cable mAT-CI or mAT-CK(KENWOOD) to the 4-pin
jack on tuner, marked "Radio".
3. Connect the other end of this mAT-CI or mAT-CK(KENWOOD) cable to the
"TUNER" jack on the transceiver.
