Front Panel - Mat-Tuner mAT-M200 Instructions

transmitter via the mAT-CK cable. The tuner comes with mAT-CI cable by
default. The transmitter supplies power to the tuner through this cable,
communicates with it and controls the operation of the tuner. The tuner does
not require additional power supply. The tuner is compatible with ICOM and
KENWOOD tuners, and users can easily control the tuner using the [TUNE] or
[AT] buttons on the panel of the radio equipment. This makes the operation of
the tuner very convenient.
For ICOM devices, the tuner only works with transmitters with a standard
ICOM 4-pin tuner socket. If your transmitter doesn't have this socket, you
won't be able to use it. If your transmitter has a non-standard 4pin ICOM tuner
socket, such as IC-M710, M802, IC-F7000, IC-F8101, you will have to modify
the mAT-CI cable so that it can be connected to the TUNER of these
transmitters cable socket before you can use this tuner. The same goes for
KENWOOD devices, but their TUNER socket is 6-pin.
powered on and started, it will detect whether it is currently linked to an ICOM
device or a KENWOOD device and automatically match it.
NOTICE: If you want to modify the control cable, be sure to read the operation
manual of these transmitters carefully to confirm that the order of each pin of
the cable is accurate. Incorrect modifications may damage the transmitter and
tuner.
It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will
match an amazing range of antennas and impedances, far greater than some
other tuners you may have considered, including the built-in tuners on many
radios.

FRONT PANEL

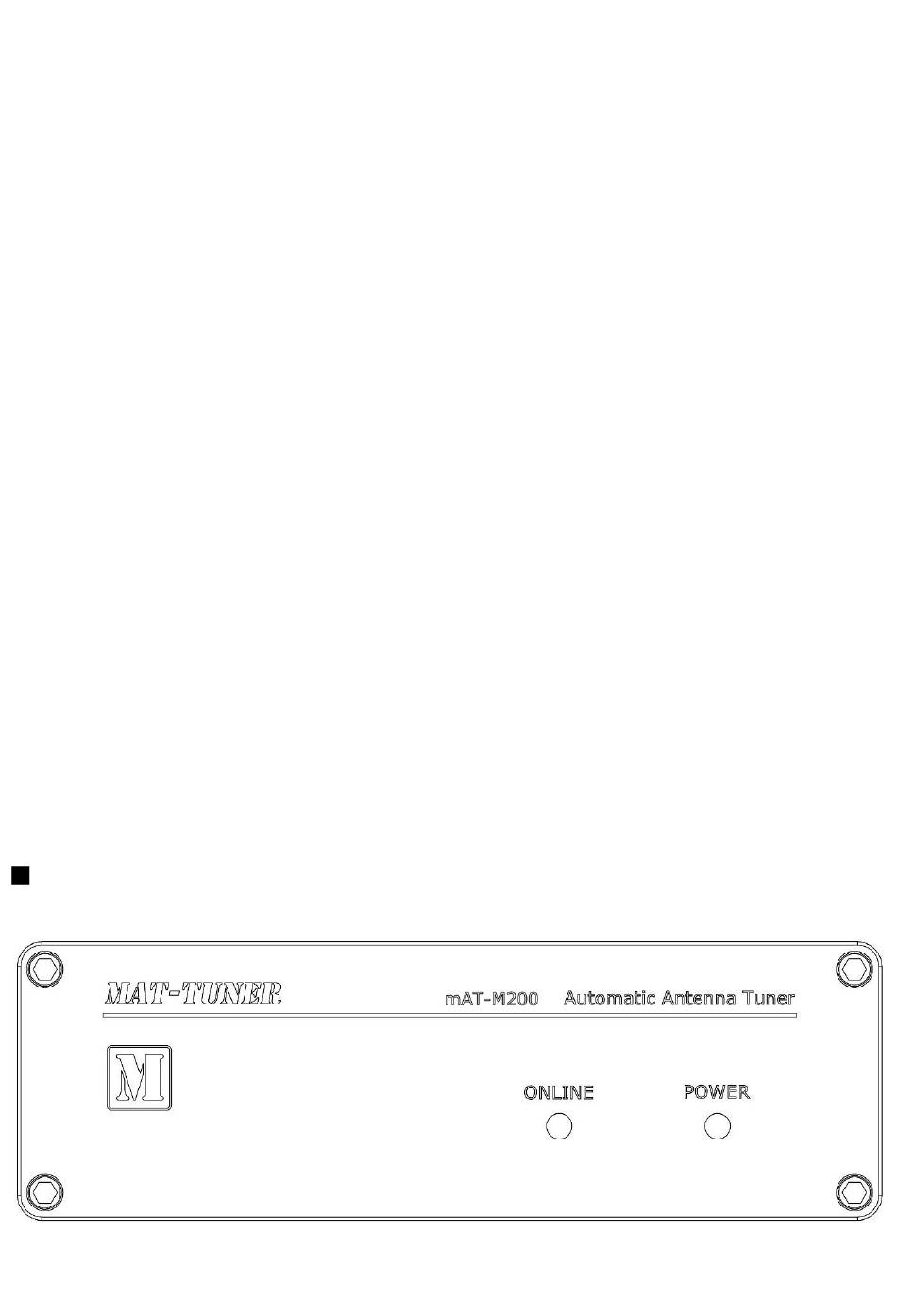

The front panel of the tuner has 2 indicator lights, as shown in the figure.
ONLINE: Status indication. Lights up
to indicate that the tuner is
When the tuner is
online, off-indicates that the
tuner is bypass.
