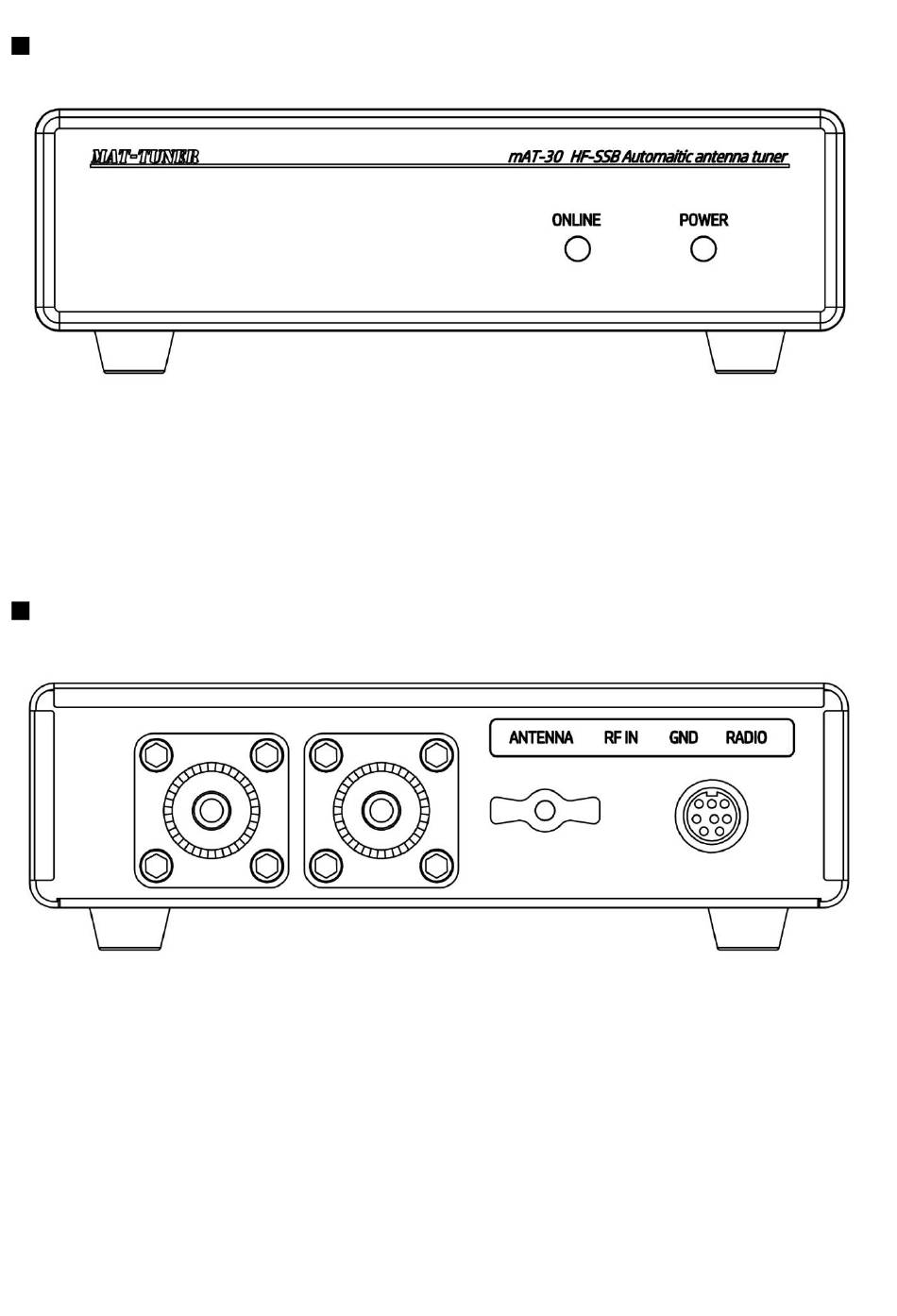

FRONT PANEL

The front panel is very simple, it only has 2 indicator lights.
ONLINE: Tuner is Active or Bypass. Lights up to indicate that the tuner is
online, off indicates that the tuner is in bypass.
POWER: Power light.

REAR PANEL

The rear panel has four connectors.
ANTENNA: SO-239, this socket is connected to the antenna via 50 ohm coaxial
cable.
RF IN: SO-239, this socket is connected to the transmitter's "ANT" socket,
via 50 ohm coaxial cable.
RADIO: This socket is connected to the transmitter's "tuner" socket via a mini
DIN 8-pin cable mAT-CY. This cable comes with the tuner.
GND: Connected to antenna system ground.
