Mat-Tuner mAT-30 Instructions Manual

Thank you for choosing this MAT-TUNER product.
Please READ ALL INSTRUCTIONS carefully and completely before using this tuner.

IMPORTANT

◆ NEVER touch the antenna or antenna connector with your hand when
the transmitter is transmitting, it will cause burns!
◆ NEVER use the antenna tuner during a lightning storm. It may result in
an electric shock, cause a fire or damage the tuner. Always disconnect the
antenna before a storm.
◆ NEVER operate the tuner with its cover removed. Contact with the
components inside the tuner while transmitting will result in painful RF
burns.
◇ Always turn your transmitter off before plugging or unplugging
anything, otherwise it would be damaged.
◇ The tuner is designed for indoor operation only，it is not water resistant.
If you use it outdoors, you must protect it from rain, dew and steam.
◇ We cannot guarantee the mAT-30 tuner will work well with those
transmitters which are released later than the tuner.

INTRODUCTION

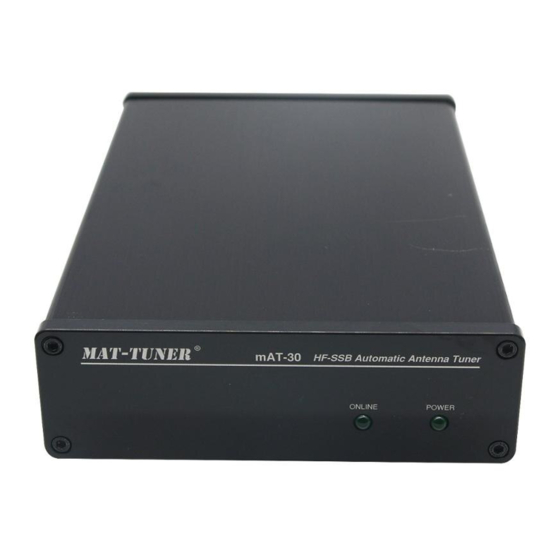

The mAT-30 is an automatic antenna tuner specially designed for modern
Yaesu transmitters, the operating is the same as the Yaesu tuner, which is
simple and convenient. Yaesu transmitters will work well with mAT-30 tuners,
those works well with FC-30, FC-40, FC-50 tuners.
Tuner will match an amazing range of antennas and impedances, far greater
than some other tuners you may have considered, including the built-in tuners
on many transmitters.
mAT-30 tuner can only be used for Yaesu transmitter. Some early transmitters,
such as FT-80C, FT-757, can't use the mAT-30 tuner. The FT-817/818 will also
not work with the mAT-30. We have designed a dedicated mAT-10 tuner for
FT-817/818 transmitter, visit our website for relevant information.
http://www.mat-tuner.com.
mAT-30 INSTRUCTIONS
Automatic antenna tuner
