MAT-TUNER
HF-SSB General Automatic Antenna Tuner

INTRODUCTION

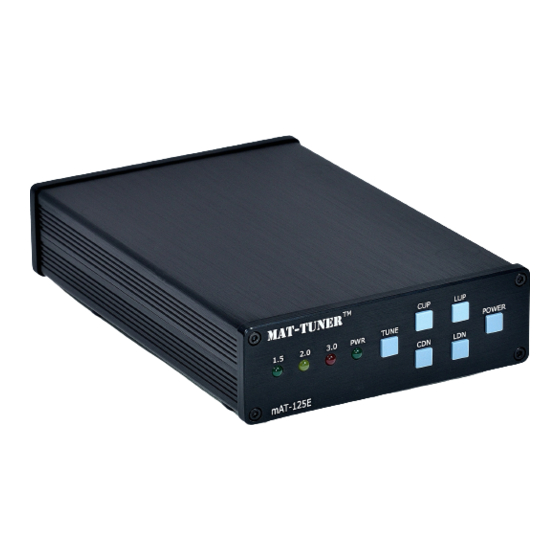

mAT-125E is a universal automatic antenna tuner that can be used in most HF transceivers. It
has a working frequency range of 1.6-54MHz and a maximum allowable RF power of 120 watts.
It has built-in lithium batteries, does not need external power supply, and is very convenient to use,
especially in outdoor portable applications. The mAT-125E does not need a control cable to
connect the transceiver. It only needs an RF cable to connect the transceiver to work well.
It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing
range of antennas and impedances, far greater than some other tuners you may have considered,
including the built-in tuners on many radios.
The mAT-125E has 16,000 frequency memories. When tuning on or near a previously tuned
frequency, the mAT-125E uses "Memory Tune" to recall the previous tuning parameters in a
fraction of a second. If no memorized settings are available, the tuner runs a full tuning cycle,
storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this
manner, the mAT-125E "learns" as it is used, adapting to the bands and frequencies as it goes. You
can also start a tuning cycle manually whenever necessary. The tuner has four fine-tuning buttons.
After automatic tuning, you can make more fine adjustments manually to get a lower SWR.
Two 18650 lithium batteries are installed in the interior of the mAT-125E, which provides power
for the tuner. Because of the use of advanced magnetic retaining relays, the power consumption of
mAT-125E is very small, the lithium battery can work for a long time after it is fully charged. It is
very suitable for outdoor use. Special chargers are provided with tuners. You must use its own
charger to charge the tuner. It is dangerous to charge with an incorrect charger.
NOTE: Before the first use or after the battery is replaced, the tuner must be charged by
the charger to activate the internal protection circuit before it can be used normally.

SPECIFICATIONS

-
0.1 to 120 watts SSB and CW peak power, 30 watts on PSK and digital modes, and 100 watts
on 6 meters.
-
Latching relays for ultra-low power operation.
-
16,000 memories for instantaneous frequency and band changing.
-
Tuning time: 0.1 to 5 seconds full tune, 0.1 seconds memory tune.
-
1.6 to 54.0 MHz coverage. Built-in frequency sensor.
-
Tunes 5 to 1500 ohm loads.
-
Includes a lithium battery charger.
-
For dipoles, verticals, Vees, beams, whip, wire or any coax-fed antenna.
-
Dimensions: 20cm x 13cm x 4cm (L x W x H).
-
Weight: 0.8Kg.
Instruction Manual Version V3.0
1 / 6
mAT-125E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mAT-125E and is the answer not in the manual?

Questions and answers

Summary of Contents for Mat-Tuner mAT-125E

  • Page 1 Because of the use of advanced magnetic retaining relays, the power consumption of mAT-125E is very small, the lithium battery can work for a long time after it is fully charged. It is very suitable for outdoor use. Special chargers are provided with tuners. You must use its own charger to charge the tuner.
  • Page 2 MAT-TUNER AN IMPORTANT WORD ABOUT POWER LEVELS The mAT-125E is rated at 120 watts maximum power input at most. Many ham transmitters and transceivers, and virtually all amplifiers, output well over 120 watts. Power levels that significantly exceed specifications will definitely damage or destroy your mAT-125E. If your tuner fails during overload, it could also damage your transmitter or transceiver.
  • Page 3 The power level of the input RF signal must not be greater than 20 watts, otherwise it will shorten the life of the tune, and even the tuner will be damaged. The mAT-125E have two modes of operation: automatic and semi-automatic, for better operation, you need to know more about the differences between the two models.
  • Page 4 ® MAT-TUNER Automatic Mode: When the RF signal is input into the mAT-125E, the tuner verifies that the power at its input (FORWARD) is within the predefined range (1-20W). Power above this range can damage the relays during the Hot Switching, while power below the predefined range can cause inaccurate tuning.
  • Page 5 When the 3.0 light blinks once, this function is turned off. THE FLASHING OF THE INDICATOR LIGHT WHEN STARTING UP When the mAT-125E is powered on, the LED on the front panel flashes to indicate the settings for the current tune.
  • Page 6 We like to share your comments with our staff, our dealers, and even other customers at the website. Welcome to http://www.mat-tuner.com/ for more information Welcome to http://www.mat-electronics.com/ for more information BG3MZU 2019.07.15...
