MAT-TUNER
AN IMPORTANT WORD ABOUT POWER LEVELS
The mAT-125E is rated at 120 watts maximum power input at most. Many ham transmitters
and transceivers, and virtually all amplifiers, output well over 120 watts. Power levels that
significantly exceed specifications will definitely damage or destroy your mAT-125E. If your
tuner fails during overload, it could also damage your transmitter or transceiver. Be sure to
observe the specified power limitations.

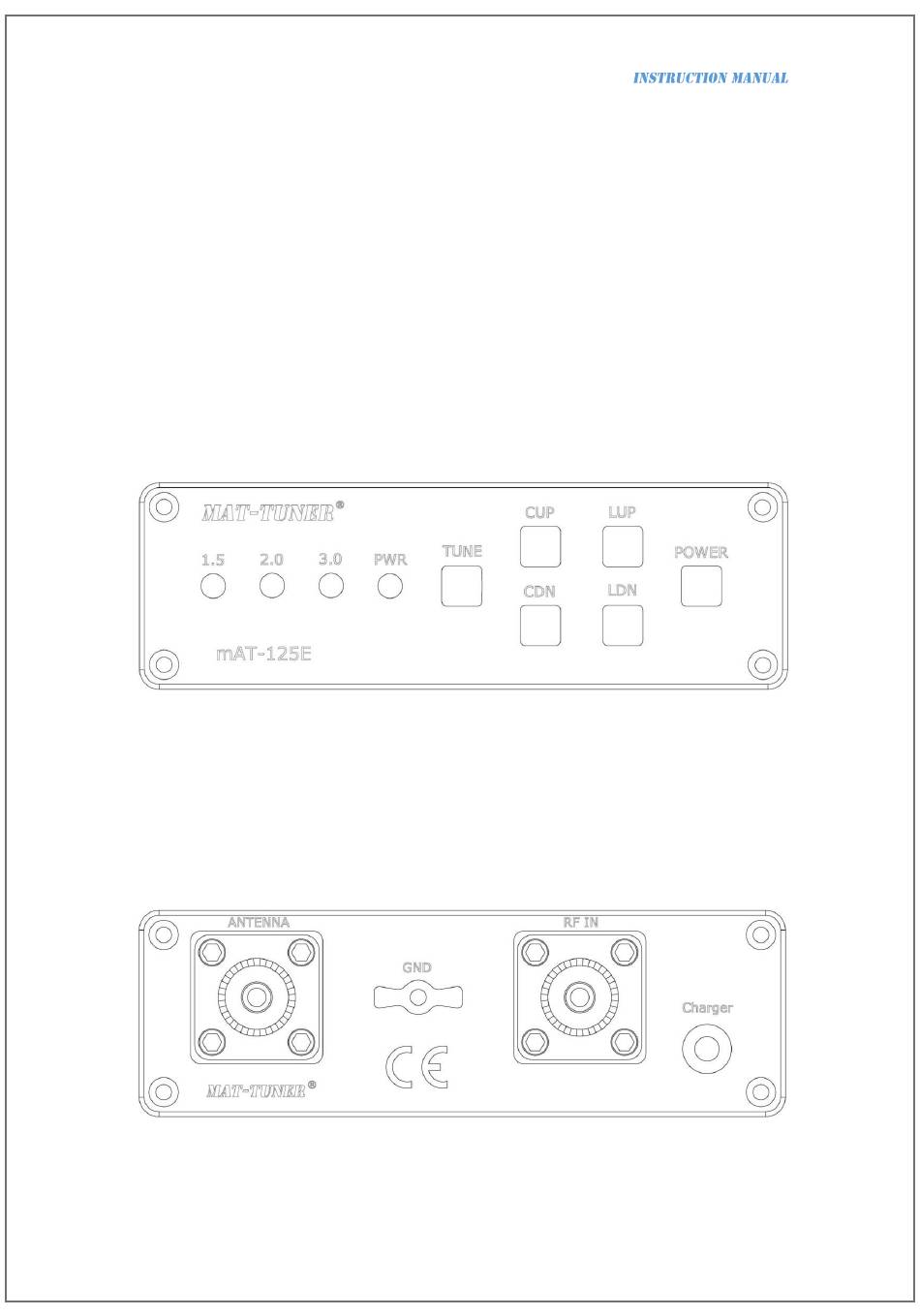

FRONT PANEL
On the front panel there are six pushbuttons and four LED indicator lights.
[TUNE]: Initiates a tuning cycle, Online/Bypass state switching, Multifunctional keys.
[CUP] / [CDN]: Manually increase/decrease capacitance.
[LUP] / [LDN]: Manually increase/decrease inductance.
[POWER]: Power key.
1.5, 2.0, and >3.0 LEDs: Indicate SWR.
PWR: Power light.
REAR PANEL
The rear panel of the mAT-125E features four connectors.
ANTENNA: SO-239 connector for coax cable from antenna.
RF IN: Connect a 50 ohm coax jumper cable from this standard SO-239 connector to the ANT
jack on the back of the transceiver.
Charger: Charging socket.
GND:
Connect to antenna system ground.
This picture is for reference only and may change later.
This picture is for reference only and may change later.
