Mat-Tuner mAT-1500Pro Operation Manual

Thank you for choosing our product.
Please READ ALL INSTRUCTIONS carefully and completely before using this tuner.
■
WARNING
◆ WARNING! NEVER touch the antenna or antenna connector with your hand when the
transmitter is transmitting, it will cause burns!
◆ WARNING! NEVER use the antenna tuner during a lightning storm. It may result in an
electric shock, cause a fire or damage the tuner. Always disconnect the power source and
antenna before a storm.
◆ WARNING! NEVER operate the tuner with its cover removed. Touching the components
inside the tuner while transmitting will result in painful RF burns.
◇ Always turn your transmitter off before plugging or unplugging anything, otherwise it
would be damaged.
◇ The tuner is designed for indoor operation only， it is not waterproof. If you use it outdoors,
you must protect it from rain, dew and steam.
◇ We cannot guarantee the tuner will work well with those YAESU transmitters which will
be released after our tuner.
■
INTRODUCTION

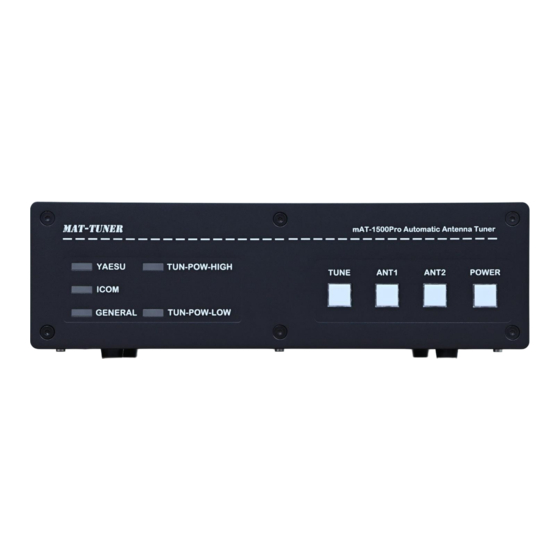

The mAT-1500Pro is a multipurpose high-power automatic antenna tuner that can match almost
all transmitters and linear amplifiers. The maximum RF power allowed is 1500 watts (SSB), the
frequency range allowed is 1.8-30MHz, and two antennas can be connected at the same time.
According to the different connected transmitters, the tuner has three modes, YAESU, ICOM and
GENERAL. The tuner can automatically determine and match the type of the connected
transmitters to minimize the manual operation.
When the mAT-1500Pro is working in GENERAL mode, in addition to manual operation on the
front panel, it can also be remotely operated. There is an RS232 remote control interface on the
rear panel of the tuner, which can be easily controlled by a computer or another terminal device.
The remote operation function can only be used in GENERAL mode, and this function is not
available in other modes.
The tuner adopts an all-aluminum casing and CNC panel, which looks beautiful and sturdy, and
is relatively light in weight.
■
Operation Mode: mAT-1500Pro has three operation modes: GENERAL, YAESU, and ICOM.
mAT-1500Pro AUTOMATIC ANTENNA TUNER
1 / 7
OPERATION MANUAL
