Summary of Contents for Mat-Tuner mAT-705

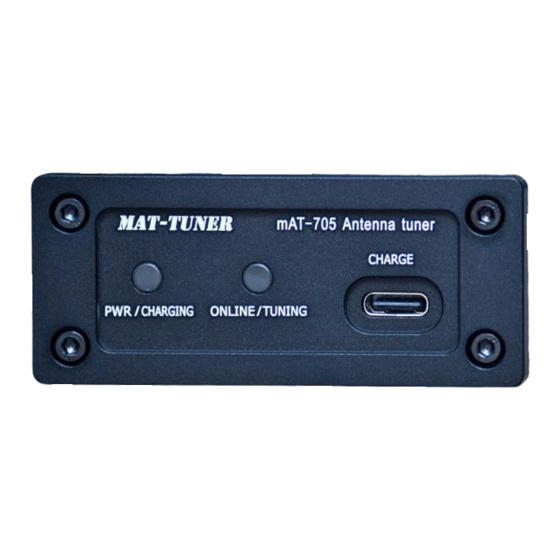

- Page 1 Automatic Antenna Tuner For ICOM IC-705 transceiver HENGSHUI MAT-TUNER LLC http://www.mat-tuner.com http://www.mat-tuner.cn...
- Page 2 Automatic Antenna Tuner mAT-705 V2.0 User Instructions Thank you for your purchase of the model mAT-705 automatic antenna tuner, designed specifically for ICOM IC-705 HF/VHF/UHF transceiver. The mAT-705 tuner is powered by two built-in lithium batteries, can be charged by a USB power adapter.
- Page 3 ☆The “PWR/CHARGE” green indicator flashes when the tuner starts, means the tuner’s battery needs to be charged. Operating ☆The mAT-705 tuner has no mechanical power switch. Its startup and shutdown are controlled by the IC-705 trans- mitter, which turns on and off along with the transmitter.
- Page 4 Start tuning cycle method A: 1. Enter the function menu of the transmitter, as shown in the figure, the [TUNER] virtual buttons turns white to indicate that it is available. 2. When [TUNER] is displayed as "OFF", press this virtual button, the transmitter will automatically control the tuner to start a new tuning cycle.
- Page 5 Accessories Control Cable TYPE-C USB charging cable Shipping instructions mAT-705 has two built-in lithium batterys, which may be restricted during transportation. Please comply with relevant laws and requirements. HENGSHUI MAT-TUNER LLC www.mat-tuner.com No.28 Ronghuabei ST, Hengshui, Hebei, CHINA...
