Mat-Tuner mAT-Y200 Instructions

Thank you for choosing this
Please READ ALL INSTRUCTIONS carefully and completely before using this tuner.

IMPORTANT

◆ NEVER touch the antenna or antenna connector with your hand when the trans-
ceiver is transmitting, it will cause burns!
◆ NEVER use the antenna tuner during a lightning storm. It may result in an electric
shock, cause a fire or damage the tuner. Always disconnect the antenna before a
storm.
◆ NEVER operate the tuner with its cover removed. Contact with the components
inside the tuner while transmitting will result in painful RF burns.
◇ Always turn your radio off before plugging or unplugging anything. The radio may
be damaged if cables are connected or disconnected while the power is on.
◇ The product is designed for indoor operation only，it is not water resistant. If you
use it outdoors (Field Day, for example), you must protect it from rain, dew and steam.
◇ This tuner is a special model for Yaesu transmitters. We will try to make it match
more models of transmitters. We can only guarantee that it can match the existing
transmitter well. For the new transmitter to be sold by Yaesu company in the future,
we can't guarantee that this tuner can also match well.

INTRODUCTION

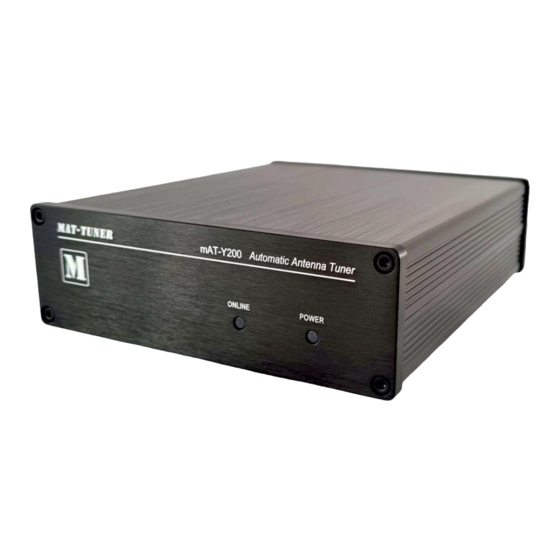

mAT-Y200 is specially designed for Yaesu brand transmitters with RF power not higher than
200W , such as FT-891, FT-991A, FTDX10, FTDX101D, FTDX101MP. It should be noted
(SSB)
that, it cannot be used for FTDX5000 and FT-2000, because these transmitters do not have
a standard 8-pin Yaesu tuner interface. For FTDX-101MP transmitter, when using external
tuner, it will automatically set the maximum RF power to 100W, so when using this tuner,
the maximum output RF power is 100W. The FT-817/818 transmitter also cannot use this
tuner, if you happen to use this transmitter, please choose the mAT-10 tuner, which is
specially designed for FT-817/818.
This tuner is also a great choice for users who like to operate the transmitter in digital
modes such as FT8, CW and RTTY. For most tuners, it is not possible to withstand 100 watts
of digital mode RF signals entering the tuner. The mAT-Y200 allows up to 100 watts of
digital mode RF signals to pass through the tuner.
mAT-Y200 INSTRUCTIONS
Antenna tuner for the YAESU transceiver
product.
