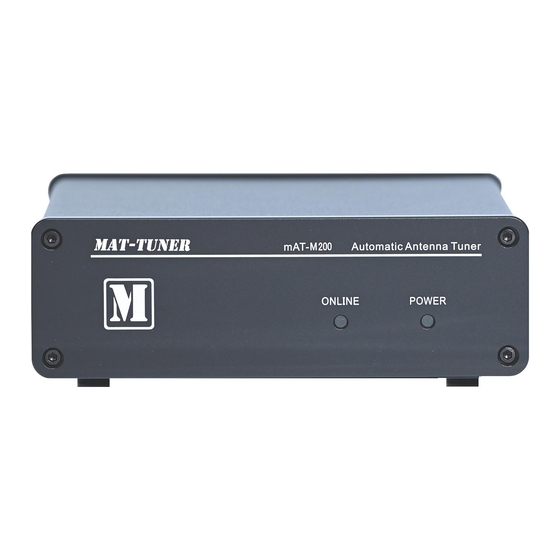

Mat-Tuner mAT-M200 Instructions

Thank you for choosing this
Please READ ALL INSTRUCTIONS carefully and completely before using this tuner.
IMPORTANT
◆ NEVER touch the antenna or antenna connector with your hand when
the transceiver is transmitting, it will cause burns!
◆NEVER use the antenna tuner during a lightning storm. It may result in
an electric shock, cause a fire or damage the tuner. Always disconnect the
antenna before a storm.
◆NEVER operate the tuner with its cover removed. Contact with the
components inside the tuner while transmitting will result in painful RF
burns.
◇Always turn your radio off before plugging or unplugging anything. The
radio may be damaged if cables are connected or disconnected while the
power is on.
◇The product is designed for indoor operation only，it is not water
resistant. If you use it outdoors (Field Day, for example), you must protect
it from rain, dew and steam.
◇ This tuner is a special model for ICOM and KENWOOD transmitters. We
will try to make it match more models of transmitters. We can only
guarantee that it can match the existing transmitter well. For the new
transmitter to be sold by ICOM and KENWOOD company in the future,
we can't guarantee that this tuner can also match well.
INTRODUCTION
mAT-M200 is specially designed for ICOM and KENWOOD brand transmitters
with RF power not higher than 200W
This tuner is also a great choice for users who like to operate the transmitter in
digital modes such as FT8, CW and RTTY. For most tuners, it is not possible to
withstand 100 watts of digital mode RF signals entering the tuner. The
mAT-M200 allows up to 100 watts of digital mode RF signals to pass through
the tuner.
mAT-M200 has a working frequency range of 1.8-54MHz and a maximum
allowable RF power of 200 watts. As an external antenna tuner, it is connected
to the ICOM transmitter via the control cable mAT-CI or to the KENWOOD
mAT-M200 INSTRUCTIONS
Antenna tuner for the ICOM&KENWOOD transceiver
product.
(SSB)
.
