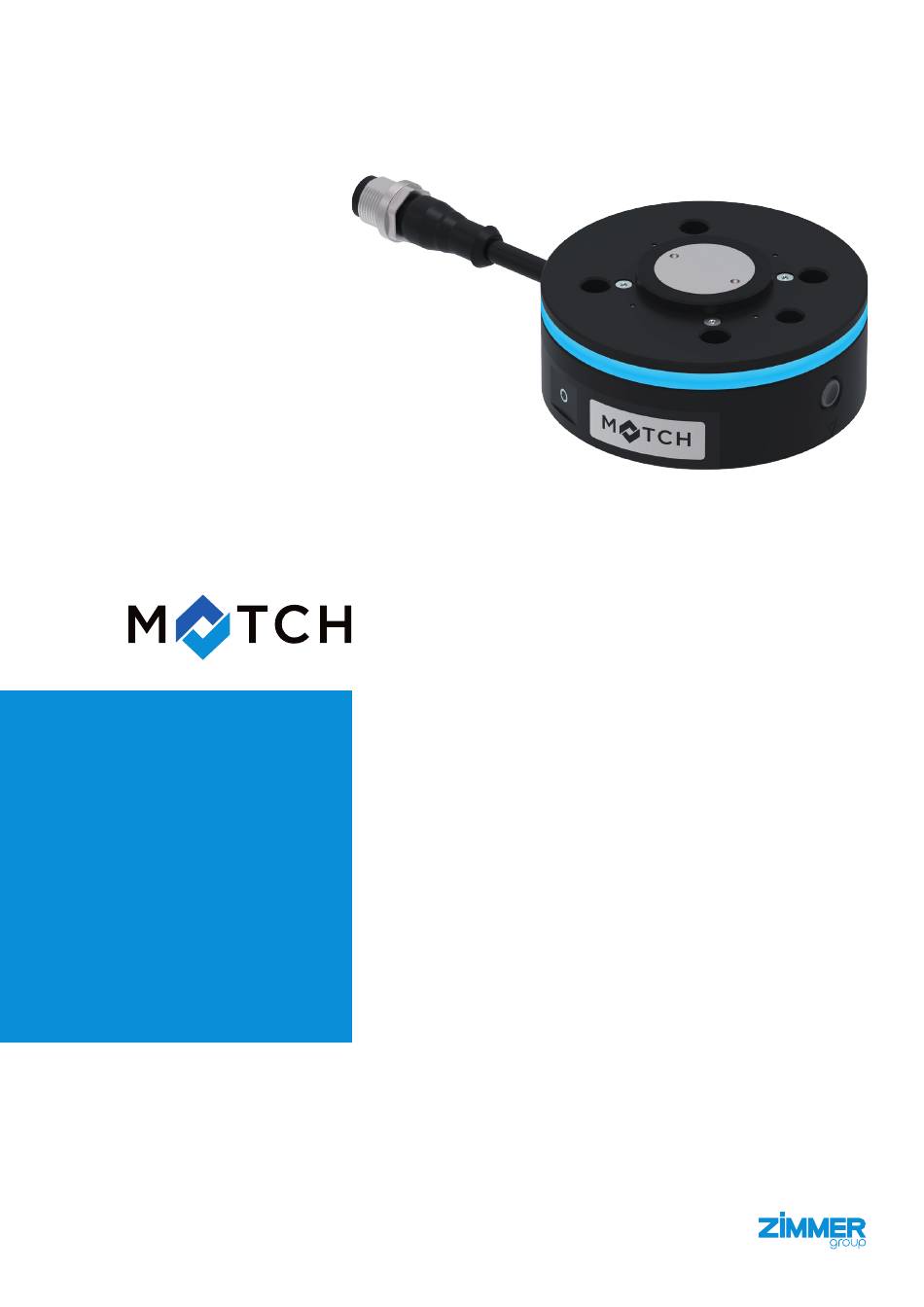

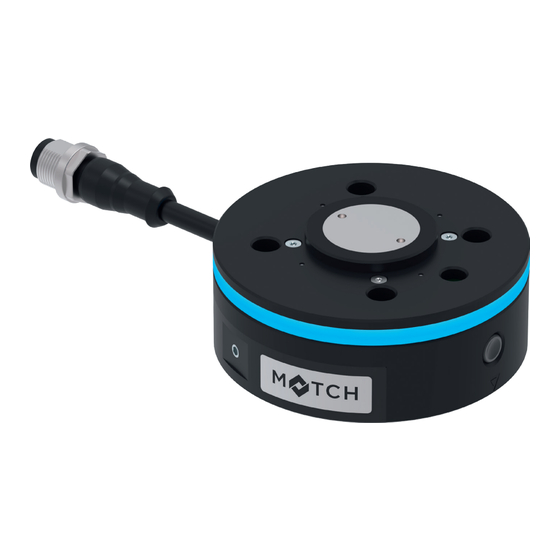

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS MATCH robot module LWR50F DDOC01074 THE KNOW-HOW FACTORY www.zimmer-group.com...
-
Page 3: Table Of Contents
10.2.18 Mounting LWR50F-16-01-A ....................................27 10.2.19 Mounting LWR50F-17-01-A ....................................27 10.2.20 Mounting LWR50F-17-04-A and LWR50F-17-05-A ............................28 10.2.21 Mounting LWR50F-18-01-A ....................................28 10.2.22 Mounting LWR50F-20-01-A ....................................28 10.2.23 Mounting LWR50F-20-04-A and LWR50F-20-05-A ............................29 Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... - Page 4 12 Maintenance ....................................33 13 Decommissioning/disposal ..............................33 14 RoHS declaration ..................................34 15 REACH declaration ..................................34 16 Declaration of Incorporation ..............................35 17 Declaration of Conformity ................................. 36 Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
-
Page 5: Supporting Documents
► You absolutely must comply with the described measures for avoiding these dangers! Ö The warning symbols are assigned according to the type of danger. INFORMATION This category contains useful tips for handling the product efficiently. Failure to observe these tips will not result in damage to the product. This information does not include any information relevant to health or workplace safety. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 6: Safety Notices
• Use of the product under extreme conditions, such as aggressive fluids or abrasive dusts • Additional drilled holes or threads Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. ► Make sure that the power supply is disconnected before you mount, adjust, modify, maintain or repair the product. -
Page 7: Proper Use
► Operate the product only when it is in a technical condition that corresponds to the guaranteed parameters and operating conditions. Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. -
Page 8: Personnel Qualification
4.3 Instructed personnel Instructed personnel have been trained by the operating company on the tasks and possible dangers of improper behavior. 4.4 Service personnel Service personnel are able to perform the assigned work and can recognize and avoid possible dangers due to their technical training, knowledge and experience. 4.5 Additional qualifications Persons who work with the product must be familiar with the valid safety regulations and laws as well as the standards, guidelines and laws listed in this document. Personnel who work with the product must have facility-issued authorization to commission, program, configure, operate, maintain and also decommission this product. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 9: Product Description
The product is a safe quick-change system (MATCH robot module). The basic and proven safety principles from EN ISO 13849-1 can be complied with only if original parts from Zimmer GmbH are used. The original parts from Zimmer GmbH required for the safety principles are: MATCH robot module (LWR50F-xx) MATCH gripper (LWR50L-xx) MATCH storage station (ALWR1-50-A) (sensors optional) For the overall safety of the function, all three components (MATCH robot module, MATCH gripper, and MATCH storage station) must be taken into account (see "Functional Safety" section). -
Page 10: Type Plate
A type plate is attached to the housing of the product. The article number and confirmation number are shown on the type XX-XXXXXX plate. Article number Confirmation number 5.2 Product variants and compatibility INFORMATION ► You can find information about product variants and their compatibility on our website. ► Please contact Customer Service if you have any questions. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 11: Functional Description
Connect LED, Freedrive (robot-specific) Locking LED ring (optional) INFORMATION ► For information about compatible MATCH grippers, refer to our website. ► Please contact Customer Service if you have any questions. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 12: Led Status Display
No supply voltage No supply voltage Continuous light No MATCH robot module coupled. No MATCH robot module coupled. Continuous light One MATCH robot module coupled. One MATCH robot module coupled. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 13: Sensors
► Install an adapter plate between the camera and MATCH robot module. Sensor in storage position (MATCH gripper present) Sensor in inspection position (test channel, locking extended) MATCH storage station MATCH robot module for quick-change system Locking MATCH gripper for quick-change system Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 14: Wiring Diagram Sensor System
► Turn in the sensors until they emit a signal. ► Coat the sensors with sealing lacquer. Sensor in storage position (MATCH gripper present) Sensor in inspection position (test channel, locking extended) Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 15: Functional Safety
Technical supplementary safety measures (sensors) provide a high degree of diagnostic coverage. The product can thus be classified into control category 3 in accordance with Chapter 6.2.6 of DIN EN ISO 13849-1. According to Figure 5, Chapter 4.5.4 of the specified standard, the PL d can be achieved with this product. Fault elimination in accordance with DIN EN ISO 13849-2, Annex A, Table A2 and A3 for the helical compression springs used can be given. 7 Technical data INFORMATION ► You can find the information in the technical data sheet on our website. This data varies within the series, depending on the specific design. ► Please contact Customer Service if you have any questions. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 16: Accessories/Scope Of Delivery
8 Accessories/scope of delivery INFORMATION If any accessories not sold or authorized by Zimmer GmbH are used, the function of the product cannot be guaranteed. Zimmer GmbH accessories are specifically tailored to the individual products. ► For optional accessories and those included in the scope of delivery, refer to our website. -
Page 17: Installation
• The mounting screws are not included in the scope of delivery. ► Make sure that the mounting surface of the product and connection structure are clean (product grounding). ► Install the product on an appropriate mounting surface in accordance with the flatness specifications. ► Make sure that the mounting piece is sufficiently rigid. ► Please note the permitted tightening torques of the mounting screws at www.zimmer-group.com/de/td. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 18: Installing The Product
10.1 Installing the product ► Insert the product into the robot arm by the connection. ► Loosely attach the mounting screws. ► Tighten the mounting screws crosswise. Connection Mounting screw Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 19: Installing The Energy Supply
► The contacts of the energy supply must be dry, clean and undamaged at all times. Ö Damage to the contacts can result in malfunction of the product. ► Connect the product to the robot control system or route the connecting cable along the robot to the IO-Link master. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 20: Mounting Lwr50F-00-01-A
10.2.5.1 Pin assignment cable 1 Color Function Explanation Brown 24 V DC sensor 24 V DC supply voltage for IO-Link communi- cation White PWR actuator 24 V DC supply voltage for actuator Blue GND sensor 0 V DC supply voltage for IO-Link communi- cation Black C/Q 1 IO-Link communication 1 M12, 5-pin Connector/bracket Gray GND actuator 0 V DC supply voltage for actuator Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 21: Mounting Lwr50F-01-02-A
Freedrive signal: 24 V DC, if Freedrive button is pressed. M8, 8-pin Socket/bracket Gray 24 V DC supply voltage Pink Digital input 1 Inward move command: Jaws move inward Blue Digital input 2 Outward move command: Jaws move outward 0 V DC supply voltage The inputs of the product are configured for NPN outputs of the control system. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 22: Mounting Lwr50F-04-01-A
Inward move command: Jaws move inward Gray Digital input 2 Outward move command: Jaws move outward M8 8-pin plug Pink Analog output Jaw position 0–10 V DC Blue Analog GND 0 V DC supply voltage The inputs of the product are configured for NPN outputs of the control system. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 23: Mounting Lwr50F-07-01-A
BasePosition (jaws outward) Gray 24 V DC supply voltage Pink Digital input 1 Inward move command: Jaws move inward M8, 8-pin Socket/bracket Blue Digital input 2 Outward move command: Jaws move outward 0 V DC supply voltage The inputs of the product are configured for 24 V DC PNP outputs of the control system. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 24: Mounting Lwr50F-10-01-A
Outward move command: Jaws move outward White Digital output 1 BasePosition (jaws outward) Blue Digital output 2 WorkPosition (jaws inward) M8, 4-pin Connector/bracket Black Digital input 1 Inward move command: Jaws move inward The inputs of the product are configured for 24 V DC PNP outputs of the control system. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 25: Mounting Lwr50F-13-04-A And Lwr50F-13-05-A
10.2.15 Mounting LWR50F-14-04-A and LWR50F-14-05-A Activation is done via SCM or a commercially available IO-Link master with Port Class B. Color Function Explanation Pink 24 V DC sensor 24 V DC supply voltage for IO-Link communi- cation Yellow PWR actuator 24 V DC supply voltage for actuator Black IO-Link communication Gray GND sensor and 0 V DC sensor and actuator supply voltage M12, 12-pin Connector straight actuator Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 26: Mounting Lwr50F-15-01-A
10.2.17 Mounting LWR50F-15-04-A and LWR50F-15-05-A Activation is done via SCM or a commercially available IO-Link master with Port Class B. Color Function Explanation Brown 24 V DC sensor 24 V DC supply voltage for IO-Link communi- cation Blue PWR actuator 24 V DC supply voltage for actuator White GND sensor 0 V DC supply voltage for IO-Link communi- cation Green IO-Link communication M12, 12-pin Connector straight Gray GND actuator 0 V DC actuator supply voltage Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 27: Mounting Lwr50F-16-01-A
BasePosition (jaws outward) Gray 24 V DC supply voltage Pink Digital input 1 Inward move command: Jaws move inward M8, 8-pin Connector/bracket Blue Digital input 2 Outward move command: Jaws move outward 0 V DC supply voltage The inputs of the product are configured for 24 V DC PNP outputs of the control system. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 28: Mounting Lwr50F-17-04-A And Lwr50F-17-05-A
Inward move command: Jaws move inward Green Digital output 3 Connect signal: 24 V DC if MATCH gripper is coupled. Gray Digital output 1 BasePosition (jaws outward) Pink Digital output 2 WorkPosition (jaws inward) Blue 24 V DC supply voltage 0430200801 8-pin Socket 0 V DC supply voltage The inputs of the product are configured for 24 V DC PNP outputs of the control system. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 29: Mounting Lwr50F-20-04-A And Lwr50F-20-05-A
Inward move command: Jaws move inward Pink Analog output Jaw position 0–10 V DC Yellow Digital output 3 Connect signal: 24 V DC if MATCH gripper is coupled. Black Digital output 1 BasePosition (jaws outward) M12, 12-pin Connector straight Gray Digital output 2 WorkPosition (jaws inward) The inputs of the product are configured for 24 V DC PNP outputs of the control system. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 30: Mounting Lwr50F-21-04-A And Lwr50F-21-05-A
Outward move command: Jaws move outward M12, 12-pin Connector straight Digital output 1 BasePosition (jaws outward) Violet Digital output 2 WorkPosition (jaws inward) Gray/pink Analog output Jaw position 0–10 V DC Red/blue Digital output 3 Connect signal: 24 V DC if MATCH gripper is coupled. The inputs of the product are configured for 24 V DC PNP outputs of the control system. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 31: Mounting Lwr50F-22-04-A And Lwr50F-22-05-A
Analog output Jaw position 0–10 V DC Gray 24 V DC supply voltage Pink Digital input 1 Inward move command: Jaws move inward M8, 8-pin Socket/bracket Blue Digital input 2 Outward move command: Jaws move outward 0 V DC supply voltage The inputs of the product are configured for 24 V DC PNP outputs of the control system. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 32: Static Charge
INFORMATION ► Details about activation can be found in the information from the robot manufacturer. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 33: Maintenance
► Have maintenance work that requires disassembly of the product performed by customer service if possible. Ö Dismantling and reassembling the product without authorization may result in complications, as special installation equipment is required in some cases. Zimmer GmbH accepts no liability for any resulting malfunctions or damage. 13 Decommissioning/disposal INFORMATION When the product reaches the end of its operational phase, it can be completely disassembled and disposed of. -
Page 34: Rohs Declaration
REACH regulation (“Duty to communicate information on substances in articles”). Michael Hoch Rheinau, Germany, 2021-04-01 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 35: Declaration Of Incorporation
Machinery and an EC Declaration of Conformity has been drawn up in accordance with Annex II 1 A. Kurt Ross Rheinau, Germany, 2021-04-01 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 36: Declaration Of Conformity
A full list of applied standards can be obtained from the manufacturer. Kurt Ross Rheinau, Germany, 2021-04-01 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
