Summary of Contents for Fanco Luna 200
- Page 1 Luna/Metro Installation Manual Version 2.1...

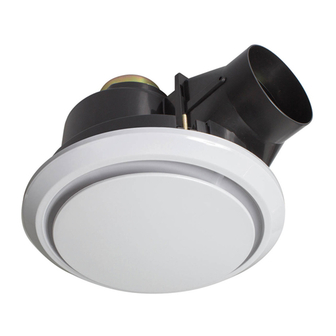

- Page 2 Before installing your new Fanco Luna/Metro Exhaust Fan, it is important that you read and follow these instructions prior to installation; even if you feel you are quite familiar with this type of product. Please keep this document handy for future reference as it contains servicing and maintenance requirements.
-
Page 3: Operation Rules
DELIVERY SET: • Exhaust Fan & Fascia: 1 piece o Luna = Round Fascia o Metro = Square Fascia • Hole size cut-out template: 1 piece • User's manual: 1 piece • Packing box: 1 piece SHORT DESCRPTION: The units described here is a fan for exhaust ventilation of small to medium premises. •... - Page 4 MOUNTING: This product is intended for indoor installation, into locations already fitted with switched, pre-wired power outlets. When selecting a mounting location, please consider the following: • Unit must be installed into a horizontal location, and is not suitable for wall mount or raked ceilings. Prior to installation, inspect the ceiling cavity to check for hidden beams, structures and concealed electrical •...
- Page 5 5. Use the provided hole size template to mark the mounting location for the fan and make a round hole in the ceiling: o Luna/Metro 200 = Ø240mm. o Luna/Metro Boost 250 = Ø295mm o Luna/Metro Boost 250 LED = Ø295mm 6.
-
Page 6: Maintenance
9. Replace front fascia by locating spring hole slots in body/fan. Allow springs to pull the cover plate up over the fan cavity and against the ceiling surface. MODELS WITH LIGHT: Before completely replacing the fascia, re-connect the light cable connector. 10. -
Page 7: Warranty
WARRANTY: Fanco warrants this product against defects in manufacture and workmanship for a period of 2 years from date of purchase when installed for residential use. When installed in a commercial or other non-domestic application, Fanco warrants this product for a period of 3 months from date of purchase.
